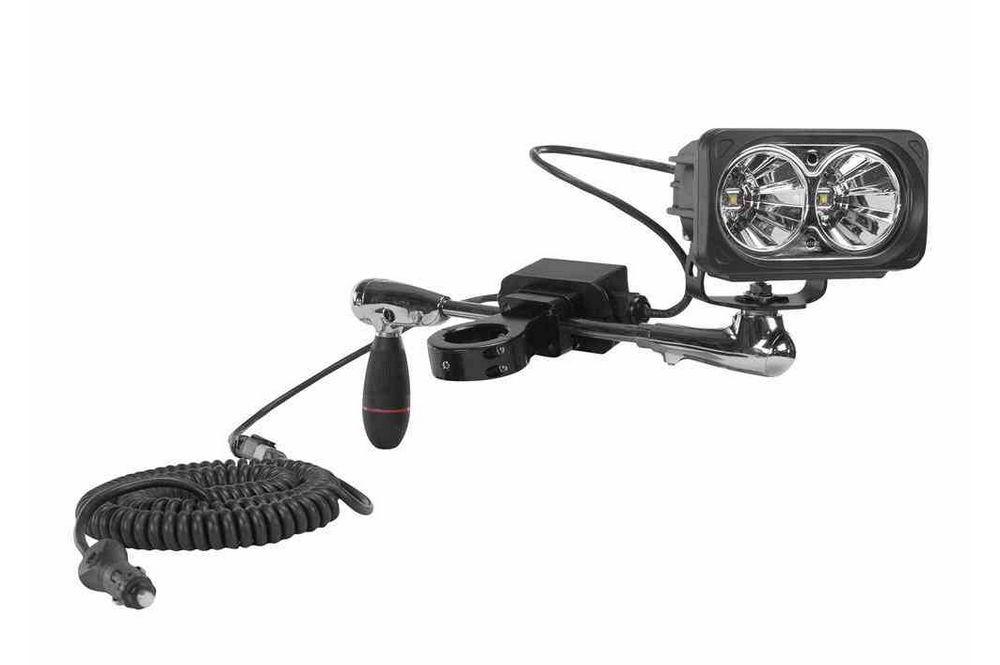

20W High Intensity Bar Clamp Mounted LED Spotlight - (2) 10W LED - 4" Shaft - 1720 Lumens

20W High Intensity Bar Clamp Mounted LED Spotlight - (2) 10W LED - 4" Shaft - 1720 Lumens

$1,890.00 CAD
$1,890.00 CAD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Specifications / Additional Information
BCML-LEDP2X10WRE-ILS Bar Clamp Mount LED Spotlight BCML-LED Features
Lamp Type: Two LEDs IP68 Rated Waterproof to 3 Meters
Dimensions: Light Head: 4.07"H x 3.8"D; 11 3/8" - Total Length LEDs Driven At 90%
Watts: 20W -40°C ~ +85°C Operating Temp Range
Voltage: 12-32V DC PWM Integrated Dimming Circuitry
Lumens: 1,720 Inline Switch
Spot Beam: 700`L
Lighting Configuration: 10° Spot, 20° Wide Spot or 60° Flood
Mounting: Bar Clamp
Bar Size Options: 0.75", 1", 1.25", 1.5", 1.75", 2", 2.25", 2.5" or 2.75"
Wiring: 16` Detachable Coil Cord w/ Cigarette Plug & Inline Polycase Switch
Wiring Options: 16` Cigarette Coil, 16` Cigarette, 21` Ring Terminals, 16` Battery Clamps, 16` Flying Leads
Amps: 1.6 @ 12V - 0.8 @ 24V
Vibration Rating: 15.6G
LED Light Color: 6000K
LED Life Expectancy: 50,000 hours
Optics Efficiency: 90%
Materials: Die Cast Aluminum Housing, Polycarbonate Lens
Housing Color: Black
3 year warranty replacement on this LED light. After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics will provide a return label via email to the customer. When the failed light is returned, we will ship a new replacement.
' Product Overview '
Buy American Compliant The BCML-LEDP2X10WRE-ISL from Larson Electronics is a Bar Clamp Mount LED Spotlight with Inline Switch that offers high light output in a durable, low profile housing. This light produces a very tight spot pattern, can run on any voltage from 12 to 32 volts DC and provides a rugged lighting solution ideal for use in marine environments, industrial and commercial applications, heavy equipment illumination, vehicle lighting and law enforcement. The BCML-LEDP2X10WRE-ILS LED bar clamp mount spotlight from Larson Electronics produces a 700` long beam while drawing less than 2 amps on a 12 volt electrical system. Two 10 watt LEDs are combined with high purity optics to produce a tight 10 degree spread spot beam. This fixture is ideal for anyone who is looking for a tight spot light that offers outstanding life hours of 50,000+. These LED bar clamp mount spotlights are IP68 rated and waterproof to three meters, sealed against intrusion by dust and dirt and ruggedly constructed to withstand demanding environments and applications. The housing of this hunting spotlight is constructed of extruded aluminum and features rubber isolated mounts and unbreakable polycarbonate lenses to provide durability and resistance to vibrations, impacts, abuse, hard rains, sand and high winds.
Click Photo to Enlarge
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Heat Management: Heat is the single largest factor in premature LED failure and color shifting. As a result, many manufacturers reduce the output of their LEDs to reduce the amount of heat produced. These LED light bars utilize an extruded aluminum housing that incorporates an advanced heat radiating fin design which dissipates heat efficiently to produce the maximum amount of power and longevity. The end result is more light and longer LED life with higher average lumen maintenance after 50,000 hours. Voltage Control: These units are able to monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. This BCML-LEDP2X10WRE-ILS can operate on current ranging from 12 to 32 Volts DC without any modifications necessary as a result. This high output LED spotlight draws 1.6 amps @ 12V DC and 0.8 amps @ 24V DC. The multi-voltage capability makes these units ideal for mobile and standalone applications such as those found on commercial boats, heavy equipment and vehicles where power systems don’t always operate with 12 volts and external generators, transformers or inverters are impractical. Durability: The BCML-LEDP2X10WRE-ILS offers IP68 rated construction that is designed to withstand tough environmental and operating conditions. These units can operate in temperatures ranging from -40 degrees Celsius to 85 degrees Celsius, are waterproof to three meters and resist ingress of dust, dirt and humidity. The housings are formed from die-cast aluminum and the lenses are unbreakable polycarbonate. Mounting: The BCML-LEDP2X10WRE-ILS is mounted on the end of a 4" chrome plated shaft. An aluminum bar clamp is mounted to the shaft to simplify mounting. These bar clamps are not adjustable. The top portion of the mount has a through hole that enables the operator to pass one of two 1/4 - 20 bolts through it and secure that stud with a Nylock nut. The Nylock nut and bolt are provided with the bar clamp. Small machine screws secure the bottom half of the clamp to the top portion. The installer simply affixes the light to the top portion and places the assembly on the rail or bar. The bottom portion is positioned and secure with the machine screws, cinching the clamp tightly to the bar. Bar Sizes: The BCML-LED25WRE-CPR Bar Clamp LED Spotlight is available with various sized bar clamp mounts to accommodate different sized rails or bars. For example, if the rail you need to mount this spotlight on has an outside diameter of 1", you would choose the 1" size mount. The bar sizes that this mounting system can accommodate are as follows: 0.75", 1", 1.25", 1.5", 1.75", 2", 2.25", 2.5" or 2.75". Make your selection below when ordering. Operation: Operator controls rotation and elevation of spotlight outside of vehicle by twisting and turning a handle. The beam remains where the operator places it until the handle is moved.
16ft Coil Cord w/Cigarette Plug 21ft Cord with Ring Terminals 16ft Cord w/Battery Clamps 16ft Cord with Cigarette Plug
Click Images to Enlarge
Wiring: Each light comes with a detachable 16 foot coil cord with cigarette plug. The cord is detached via a weatherproof, 2 pin Deutsch connector which easily and securely attaches and detaches the coil cord from the spotlight. Other cords, including 21 foot cords with ring terminals (C-21RT), 16 foot cord with spring battery clamps (alligator clips) (C-16BC) and a 16 foot straight cord with cigarette plug (C-16CP) are available. This light can be ordered in either 12 volt or 24 volt configuration, allowing it to be used with any vehicle or ATV equipped with a cigarette plug. Choose voltage below when ordering. Suggested Applications: The versatile mounting and high output adjustable light head make this spotlight ideal for hunting and offroad applications. Being both waterproof and resistant to impacts, vibration, and dusts this LED spotlight is well suited for ATVs, UTVs, 4-wheelers, golf carts, and any other application with a post to mount the light to.
