Explosion Proof Cable Gland - Stainless Steel - Unarmored/Braided - ATEX Rated, IP68 - 1" NPT

LARSON ELECTRONICSSKU: PL3-CGB-A2F-SS-32-1IN
filler

Precio:
Precio de venta$332.00

Descripción

Specifications / Additional Information
CGB-A2F-SS-32-1IN Cable Gland Ratings
Listing: NRTL Listed for International Locations, ATEX/IECEx Rated Zone 1, 2, 21, 22
Unit Type: Explosion Proof Cable Gland ATEX Certified
Weight: 1.90 oz IECEx, CSA Approved
Cable: Unarmored, Braided INMETRO Approved
Entry Thread (Hub): 1" NPT GOST R, GOST K Certified
Minimum Thread Length: 0.783" Lloyds, DNV, ABS Approved
Cable Diameter: 0.125" (Min) to 0.342" (Max) Rok, GGTN Permitted
Across Flats: 0.944" (Max) IP66/IP67/IP68
Across Corners: 1.04" (Max)
Nominal Protrusion Length: 0.826"
Operating Temp: -60°C to +130°C
Materials: Stainless Steel, Aluminum, Thermoplastic Elastomer (Seal) Toll Free: 1-800-369-6671



' Product Overview '

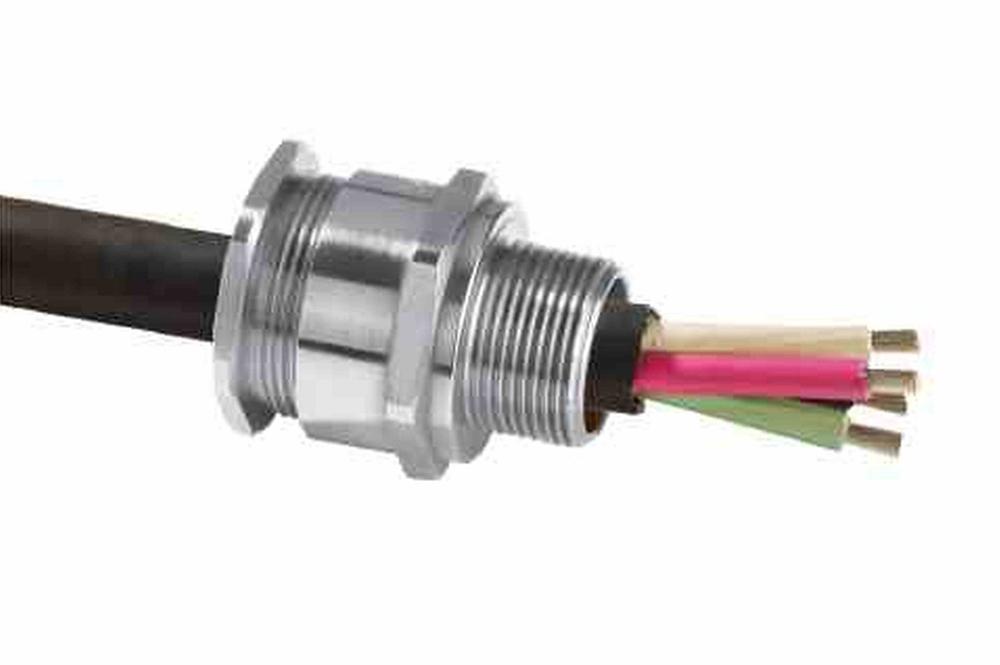

The Larson Electronics CGB-A2F-SS-32-1IN Explosion Proof Cable Gland provides secure and safe cable connections in combustible facilities. This unarmored, braided cable gland is constructed of stainless steel and caters to standard 1" NPT hubs for connection. The CGB-A2F-SS-32-1IN is a heavy duty cable gland for flammable and rugged environments. This unarmored, braided unit features a standard entry thread of 1" NPT and a minimum/maximum cable diameter of 0.125"/0.783". The ATEX-rated cable gland is constructed of stainless steel and aluminum. A thermoplastic elastomer is used to seal the unit. The accessory is waterproof (IP66-IP68) and designed for use in environments ranging between -60°C to +130°C. Applications: Mechanical cable retention, cable connections, cable fittings, explosive work sites, hazardous locations, instrumentation, telecommunication, cable management and more.
