Hazardous Location Cable Gland - 1" NPT - Nylon -.750-.875" Cable OD

LARSON ELECTRONICSSKU: PL3-CGB-NY-STR-1-PRPL
filler

Precio:
Precio de venta$80.00

Descripción

Specifications / Additional Information
CGB-NY-STR-1-PRPL Cable Gland Ratings
Unit Type: Hazardous Location Cable Gland NRTL Listed to United States & Canada Standards
Weight: 0.5 lb Class I Division 2 - Install per NEC Articles 501.10
 Height: 2 in  Class I Zone 2 - Install per Articles 502.10, 503.10, and 505.15
 Length: 2 in
 Width: 1 in
Dimensions: 1.25"OD x 2.03"L
Entry Thread (Hub): 1" NPT
Thread Length: 0.531"
Thread Width: 0.578" Special Orders - Requirements
Number of Conductors: -
Cable Diameter: 0.620" (Min) to 0.125" (Max) Toll Free: 1-800-369-6671
Nominal Protrusion Length: 1.50" Intl: 1-214-616-6180
Operating Temp: -60°C to +100°C
Materials: Nylon

' Product Overview '

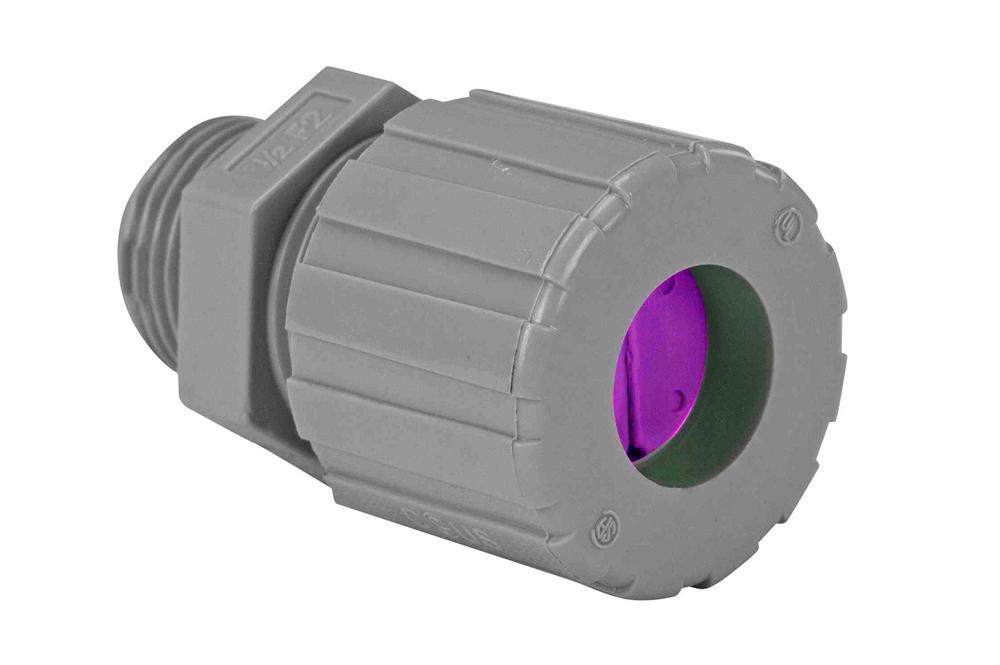

CGB-NY-STR-1-PRPL
The Larson Electronics CGB-NY-STR-1-PRPL Hazardous Location Cable Gland provides secure and safe cable connections in combustible facilities. This Class I Division 2 rated cable gland is constructed of nylon and caters to standard 1" NPT hubs for connection. The CGB-NY-STR-1-PRPL is suitable for use in hazardous location applications when installed according to NEC articles. The CGB-NY-STR-1-PRPL is a heavy duty cable gland for hazardous and corrosive environments. This unit features a standard entry thread of 1" NPT and a minimum/maximum cable diameter of 0.620-0.125" NPT. The Class I Zone 2 cable gland is constructed of durable nylon. The accessory is waterproof (IP66-IP68). This hazardous location cable gland is designed for use in environments ranging between -60°C to +100°C. Applications: Corrosive environments, food processing facilities, chemical and sewage treatment plants, and off-shore and dockside installations
