Larson Explosion Proof Cable Gland - Nickel Plated Brass - Armored Cable Gland - ATEX Rated - IP68 - M25

Larson ElectronicsSKU: PL3-CGB-T3CDS-NPB-25-M25
filler

Precio:
Precio de venta$184.00

Descripción

PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1(647) 254-9757 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.
Made in the USA

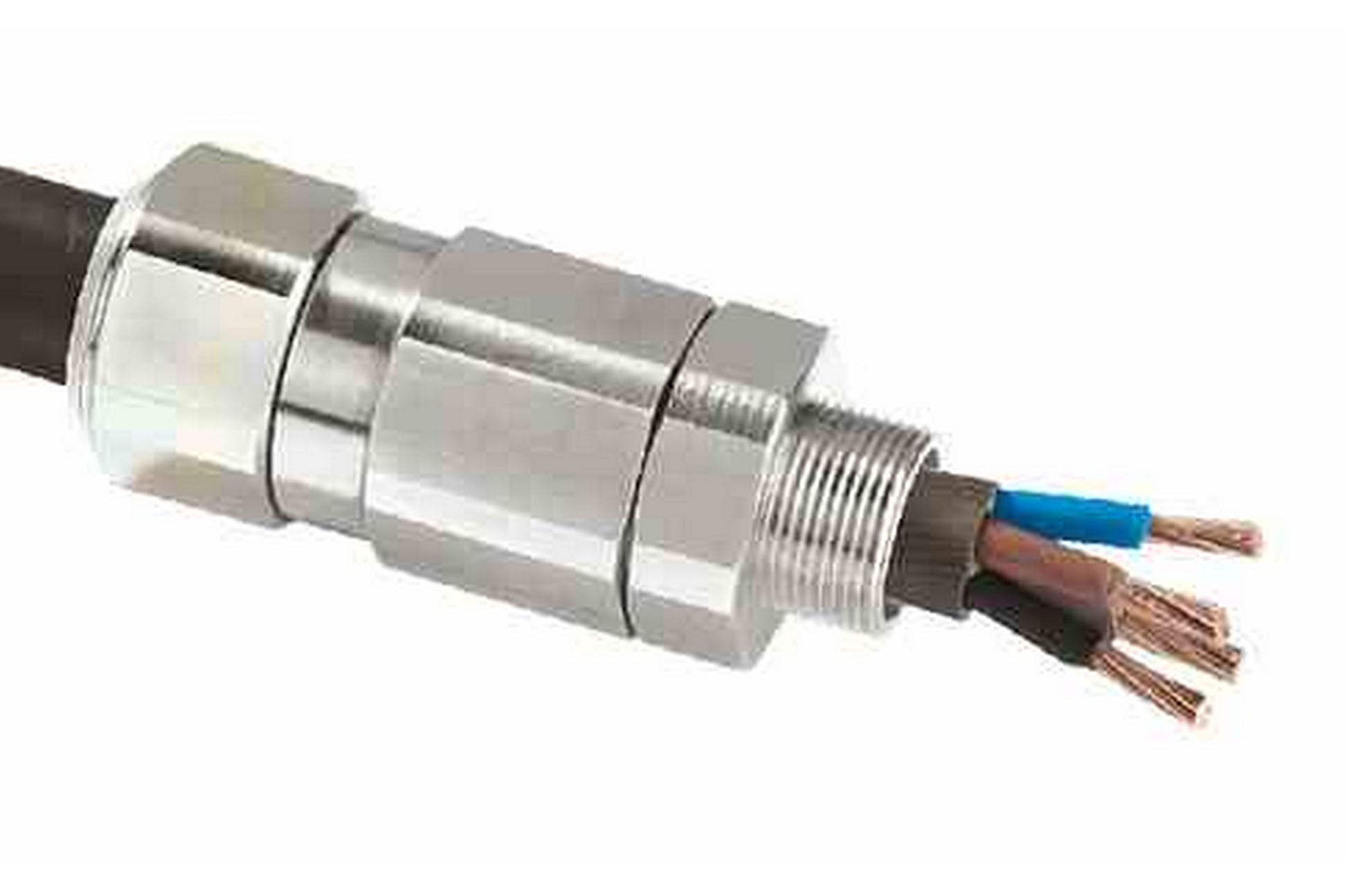

The Larson Electronics CGB-T3CDS-NPB-25-M25 Explosion Proof Cable Gland provides secure and safe cable connections in combustible facilities. This armored, wire braided cable gland is constructed of electroless nickel plated brass and caters to standard M25 hubs for connection.
The CGB-T3CDS-NPB-25-M25 is a heavy duty cable gland for flammable and rugged environments. This armored, wire braided unit features a standard entry thread of M25 and a minimum/maximum cable diameter of 18.2mm/26.2mm. The ATEX-rated cable gland is constructed of electroless nickel plated brass, stainless steel and aluminum. A halogen-free thermoplastic elastomer is used to seal the unit at the cable inner bedding and outer sheath. The accessory is waterproof (IP66-IP68) and designed for use in environments ranging between -60°C to +130°C.
Applications:
Mechanical cable retention, cable connections, cable fittings, explosive work sites, hazardous locations, instrumentation, telecommunication, cable management and more.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.

Specifications
Unit Type: Explosion Proof Cable Gland
Weight: 0.379 lbs
Cable: Armored - Single Wire Armor (SWA), Aluminium Wire Armor (AWA), Pliable Wire Armor (PWA), Steel Tape Armor (STA), Wire Braid, Aluminium Strip Armor (ASA)
Entry Thread (Hub): M25
Minimum Thread Length: 15mm
Cable Bedding Diameter: 11.1mm (Min) to 20.0mm (Max)
Cable Diameter: 18.2mm (Min) to 26.2mm (Max)
Armor Range: 0.15mm (Min) to 1mm (Max) - Grooved Cone; 1.25mm (Min) to 1.6mm (Max) - Stepped Cone
Across Flats: 37.5mm (Max)
Across Corners: 40.5mm (Max)
Nominal Protrusion Length: 82.0mm
Operating Temp: -60°C to +130°C
Materials: Electroless Nickel Plated Brass, SS, Aluminum, Halogen Free Thermoplastic Elastomer (Seal)
Armor Clamping: Reversible Armor Cone, Anyway Universal Clamping Ring
Seal Area: Cable Inner Bedding, Cable Outer Sheath
