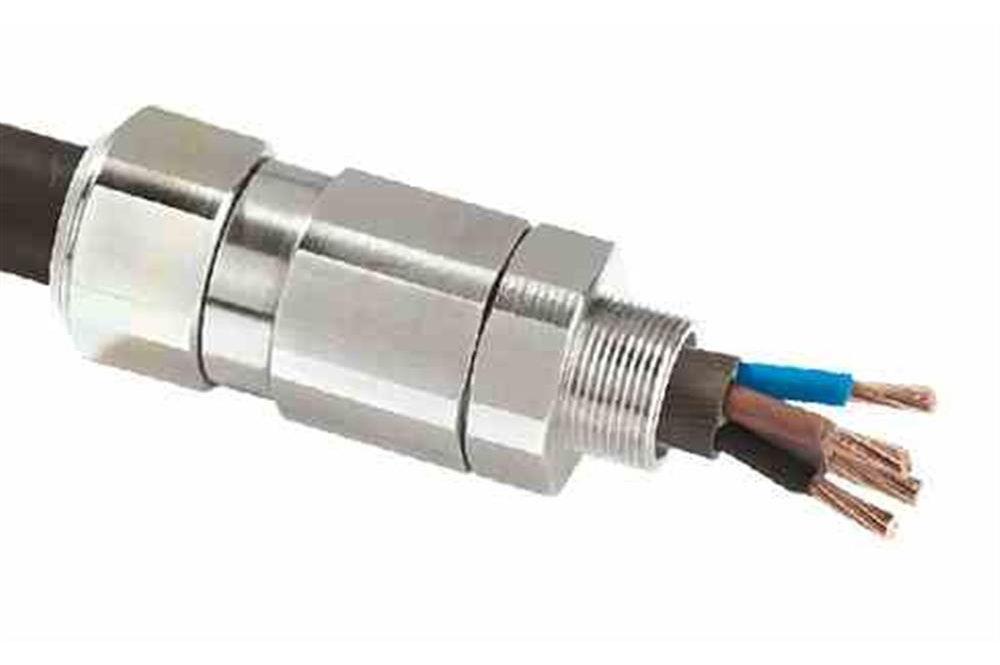

Explosion Proof Cable Gland, 1.25" NPT (M40), Nickel Plated Brass, 1.10-1.59" OD, C1D1 ATEX IEC Ex N4X

LARSON ELECTRONICSSKU: PL3-CGB-T3CDS-NPB-40-M40
filler

Precio:
Precio de venta$466.00

Descripción

Specifications / Additional Information
CGB-T3CDS-NPB-40-M40 Cable Gland Ratings
Unit Type: Explosion Proof Cable Gland (Unarmored) Certified for United States, Canada, Europe, Brazil, International
Weight: 2.00 lb Class I, Divisions 1 & 2, Groups A, B, C, D
Entry Thread (Hub): 1.25" NPT (M40 Metric) Class I, Zones 1 & 2
Minimum Thread Length: 1.01" (15.0 Metric) Class II, Divisions 1 & 2, Groups E, F, G
Cable Bedding Diameter: 0.87" (22.0mm) (Min) to 1.26" (32.1mm) (Max) Zone 1, 2, 21, 22
Overall Cable Diameter: 1.10" (27.9mm) (Min) to 1.59" (40.4mm) (Max) Ex db IIC Gb, Ex eb IIC Gb
Armor Range: 0.02" (0.4mm) (Min) to 0.06" (1.6mm) (Max) - Grooved Cone; 0.06" (1.6mm) (Min) to 0.08" (2.0mm) (Max) - Stepped Cone Ex nR IIC Gc, Ex ta IIIC Da
Nominal Protrusion Length: 3.67" (93.2mm) Ex db I Mb, Ex eb I Mb
Operating Temp: -60°C to +130°C ATEX Certifed
Materials: Nickel Plated Brass, SS, Brass, Aluminum, Halogen Free Thermoplastic Elastomer (Seal) IEC Ex Certified
Cable: Armored - Single Wire Armor (SWA), Aluminium Wire Armor (AWA), Pliable Wire Armor (PWA), Steel Tape Armor (STA), Wire Braid, Aluminium Strip Armor (ASA) INMETRO Approved
Across Flats: 2.17" (55.0mm) (Max) EAC, RETIE Certified
Across Corners: 2.38" (60.5mm) (Max) NEPSI, CCOE/PESO Certified
Armor Clamping: Reversible Armor Cone, Anyway Universal Clamping Ring UkrSEPRO Approved
Sealing Technique: Inner Bedding Sealing Ring: Compensating Displacement Seal (CDS), Outer Sheath Sealing Ring : Load Retention Seal (LRS) IP66/IP67/IP68
Seal Area: Cable Inner Bedding, Cable Outer Sheath NEMA 4X

Special Orders - Requirements



  Fax: 1-903-498-3364

' Product Overview '
The Larson Electronics CGB-T3CDS-NPB-40-M40 Explosion Proof Cable Gland provides secure and safe cable connections in combustible facilities. This armored, triple certified flameproof cable gland is constructed of nickel plated brass and caters to standard 1.25" NPT hubs for connection. The CGB-T3CDS-NPB-40-M40 is a heavy duty cable gland for flammable and rugged environments. This armored unit features a standard entry thread of 1.25" NPT (Metric M40) and a minimum/maximum cable diameter of 1.10-1.59" OD. The ATEX-rated cable gland is constructed of nickel plated brass, stainless steel, brass, and aluminum. A halogen-free thermoplastic elastomer/barrier compound is used to seal the unit. The accessory is NEMA 4X rated and waterproof (IP66-IP68). This explosion proof cable gland is designed for use in environments ranging between -60°C to +130°C. Applications: Mechanical cable retention, cable connections, cable fittings, explosive work sites, hazardous locations, instrumentation, telecommunication, cable management and more.
