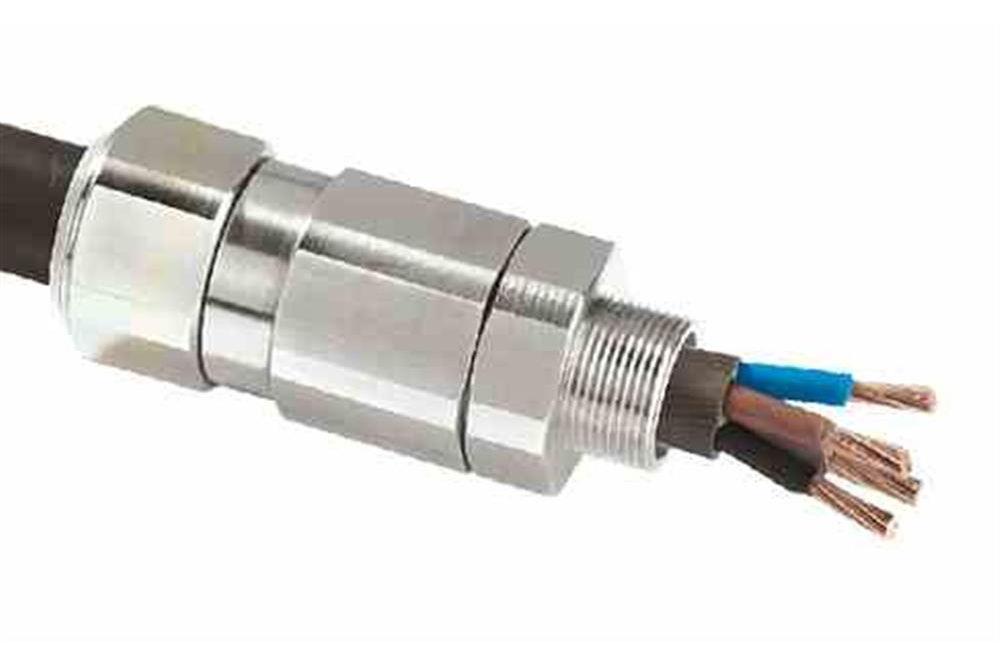

Explosion Proof Cable Gland - Nickel Plated Brass - Armored Cable Gland - ATEX Rated - 3-1/2" NPT

LARSON ELECTRONICSSKU: PL3-CGB-T3CDS-NPB-90-3.5IN
filler

Precio:
Precio de venta$4,430.00

Descripción

Specifications / Additional Information
' Product Overview '
Made in the USA The Larson Electronics CGB-T3CDS-NPB-90-3.5IN Explosion Proof Cable Gland provides secure and safe cable connections in combustible facilities. This armored, wire braided cable gland is constructed of electroless nickel plated brass and caters to standard 1/2" NPT hubs for connection. The CGB-T3CDS-NPB-90-3.5IN is a heavy duty cable gland for flammable and rugged environments. This armored, wire braided unit features a standard entry thread of 1/2" NPT and a minimum/maximum cable diameter of 0.24" NPT/0.452" NPT. The ATEX-rated cable gland is constructed of electroless nickel plated brass, stainless steel and aluminum. A halogen-free thermoplastic elastomer is used to seal the unit at the cable inner bedding and outer sheath. The accessory is waterproof (IP66-IP68) and designed for use in environments ranging between -60°C to +130°C. Applications: Mechanical cable retention, cable connections, cable fittings, explosive work sites, hazardous locations, instrumentation, telecommunication, cable management and more.
Specifications / Additional Information
CGB-T3CDS-NPB-90-3.5IN Cable Gland Ratings
Unit Type: Explosion Proof Cable Gland Zone 1, 2, 21, 22
Weight: 0.37 lbs ATEX Certifed
Cable: Armored - Single Wire Armor (SWA), Aluminium Wire Armor (AWA), Pliable Wire Armor (PWA), Steel Tape Armor (STA), Wire Braid, Aluminium Strip Armor (ASA) IECEx, CSA Approved
Entry Thread (Hub): 1/2" NPT INMETRO Approved
Minimum Thread Length: 0.59" NPT GOST R, GOST K Certified
Cable Bedding Diameter: 0.122" NPT (Min) to 0.342" NPT (Max) Lloyds, DNV, ABS Approved
Cable Diameter: 0.24" NPT (Min) to 0.452" NPT (Max) Rok, GGTN Permitted
Armor Range: 0.005" NPT (Min) to 0.039" NPT (Max) - Grooved Cone; 0.314" NPT (Min) to 0.039" NPT (Max) - Stepped Cone IP66/IP67/IP68
Across Flats: 0.944" NPT (Max)
Across Corners: 1.04" NPT (Max)
Nominal Protrusion Length: 2.75" NPT
Operating Temp: -60°C to +130°C
Materials: Electroless Nickel Plated Brass, SS, Aluminum, Halogen Free Thermoplastic Elastomer (Seal)
Armor Clamping: Reversible Armor Cone, Anyway Universal Clamping Ring
Seal Area: Cable Inner Bedding, Cable Outer Sheath
Scroll Down to Purchase
