Class 1 LED Beacon with 30 Strobing Light Patterns - Permanent Surface Mount - 1440 Lumens - 480V

LARSON ELECTRONICSSKU: PL3-CL1B-480V
filler

Precio:
Precio de venta$1,242.00

Descripción

Specifications / Additional Information
CL1B-480V Flashing Strobe Features
Lamp Type: LED SAEJ845, Class 1- Brightest Rating
Dimensions: 4.5"-High, 6.5" Diameter Permanent Mount
Lamp Weight: 3 lbs 480 Volts AC
Wattage: 14.4 Multi-Strobe Pattern Options
Lumens: 1,440 Waterproof
Luminous Efficiency: 100 Lumens per Watt
Lighting Configuration: Strobing Flash
Voltage: 347-480V AC w/ external power supply
Mounting: Permanent Mount, 1" NPT Pipe Mount
Wiring:  Direct Wiring to Power Source
Ambient Temp: -45°C to +55°C
' Product Overview '

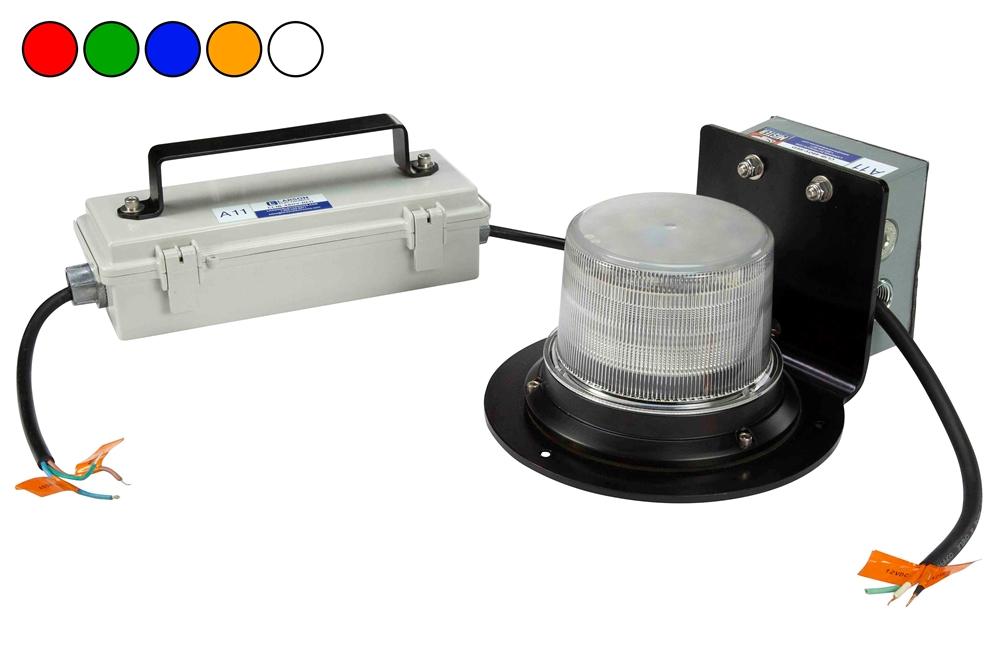

Made in the USA The Larson Electronics CL1B-480V Class 1 LED Beacon works on 480 volts AC, offers a choice of several colors and is equipped with a permanent mount system and 1 inch pipe mount embedded in the base. This compact, high powered LED beacon contains an LED lamp assembly that produces 360° of brilliant light without the dark spots or unevenness of traditional incandescent beacon lights. This beacon is equipped with auxiliary LEDs on top, helping to make this a Class 1 rated beacon and capable of producing a brilliant flashing pattern that is visible at extended distances. Available in a choice of white, green, blue, amber or red colors, this strobing beacon includes a permanent mounting system via through hole on the steel mounting base.
Available in Green, Amber, Red, White, and Blue. Choose your desired color below.
Click Images to Enlarge Click Images to Enlarge Click Images to Enlarge
This LED beacon has 30 flash patterns including four simulated rotating patterns. This unit also offers alternate or simultaneous flash patterns with up to eight connected LED beacons. Flash patterns can be changed via an integrated momentary switch on the wiring box on the strobe light. This waterproof beacon has a black powder coated die cast base that contains a fully potted circuit board. A clear polycarbonate lens protects the LED assembly and the housing is waterproof, shock resistant and built for for reliable and durable operation.
Wiring:This LED beacon utilizes an inline power supply to allow it to operate on 347V and 480V AC. The inline power supply can be remote mounted. The power supply can be mounted up to 25' away when wired with 16 AWG wire, 50' away when wired with 14 AWG, and up to 75' away when wired with 12 AWG wire between the power supply and strobe light. Up to 500' distance between primary power source and the inline power supply utilizing a minimum of 18 AWG wire.
