5 Plug Multiport AC to DC Step Down Transformer - Converts 120-277V AC to 24V DC - 25 Amps

LARSON ELECTRONICSSKU: PL3-DCP-24-5XLV-HD-24V
filler

Precio:
Precio de venta$2,386.00
 Más opciones de pago

Descripción

Specifications / Additional Information
DCP-24-5XLV-HD-24V Power Converter DCP-24-5XLV-HD-24V Features
Line In Voltage: 120-277VAC @47~63 hz IP67 Rated Waterproof
Line Out: 24VDC @ 25 Amps Overload, Short Circuit ,Over Voltage, Over Temperature Protection
Watts: (5) 120W leads - 600W Total UL1012 Compliant
AC Input Connector: 5’ 16/3 SOOW Line-in Cord w/ Gen App Cord Cap Options (Choose Below), Plastic Weatherproof Cord Grips UL60950-1 Compliant
DC Output Connector: (5) 5’ 16/3 SOOW Line-out Whips w/ Gen App Cord Cap Options (Choose Below), Plastic Weatherproof Cord Grips International Lighting Safety Standards Compliant
Protection: Short Circuit/Overload/ Over Voltage/Over Temperature Suitable For LED Moving Signs
Mounting: Two Screw Slide Notches Suitable For Wet or Damp Locations
Operating Temp: -30 / +60C
Efficiency: 90%
Dimensions: 9.6"-L 2.5"-W 1.5"-D
Weight: 2 Lbs Toll Free: 1-800-369-6671
Intl: 1-214-616-6180
  Fax: 1-903-498-3364
  E-mail:
' Product Overview '

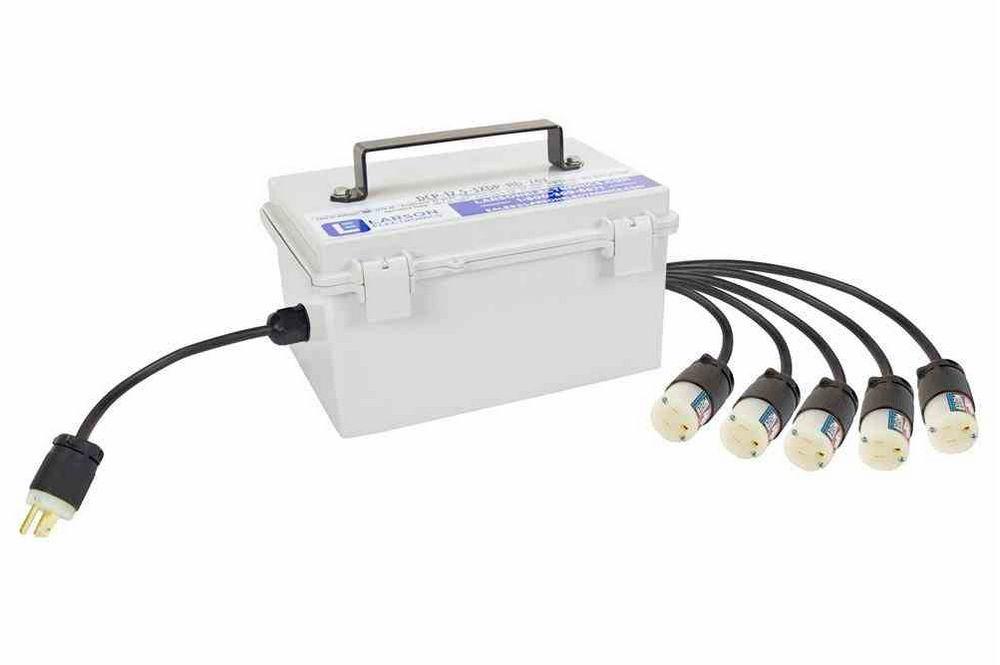

The Larson Electronics DCP-24-5XLV-HD-24V Waterproof Power Supply converts commonly used 120 - 277VAC electrical current to 24VDC @ 25 Amps. This converter includes a single input with a plastic weatherproof cord grip and 5 outputs with plastic weatherproof cord grips. Both input and the five outputs can be customized with a cord cap of choice (see below for options). The unit takes voltages within the 120-277VAC range and reduces it to 24 VDC, allowing users to use standard AC power to operate equipment like our LED light bars and spotlights that require 24V low voltage DC current. The DCP-24-5XLV-HD-24V 600 watt power converter provides a safe and effective way for users to tap into and utilize common 120 to 277V AC power sources and convert this current to 24V DC for use with equipment that requires 24 volt electrical power. This unit can be operated with input current ranging from 120 to 277 VAC and will output 600 watt 24 Volt DC current at 25 amps. This power converter features an IP67 rated waterproof design, making it suitable for indoor or outdoor use and is wet-damp area approved. This converter includes integral short circuit, over voltage, over temperature and overload protection that will shut down the unit or reduce output in case of faults and overloads to protect the unit and connected equipment from damage. The small size and wide input voltage range of this unit makes it ideal for indoor-outdoor operation of Larson Electronics LED light bars and other equipment that requires 24 VDC current and anywhere 24 volt DC power is not readily available. Measuring 9.6 inches long by 2.6 inches wide by 1.5 inches deep, this unit weighs approximately one pound and is mounted with two conventional screws via slots that allow removal and repositioning simply by loosening the screws. This converter comes with one plug on the input lead and five plugs on the output leads (all outputs have separate cord grips), allowing users to run five fixtures off one transformer, keeping in mind that the total amperage should ideally be kept within 75% of the unit`s total amperage output and not surpass its amperage maximum (25 amps @ 24V DC). Most of our 24 volt LED lights and LEDLB, LEDLB-E, LEDP series lights as well as many of our HID units utilize Deutsch connectors, making this unit "plug-n-play" compatible. This converter will also work with our HML-1, CML-1, CML-2, HML-2, CML-3, HML-3 and CML-4 and HML-4 series spotlights. THIS WILL NOT WORK WITH THE HID GOLIGHT SPOTLIGHTS (GL-3XXXH-X models). If you purchase this transformer with any of our Larson Electronics lights, we will make sure that the connectors are a match.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated L6-15 Twist Lock Plug 15 Amp / 250V Rated
UK BS1363 Straight Blade Plug 13 Amp / 250V Rated / Internal Fuse Intl Schuko 2-Pin Plug 16 Amp / 250V Rated / Grounded Flying Leads / Pigtail Wires
Wiring and Plug: The converter comes with one plug on the input lead, five plugs on the outputs and five feet of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets (both input and five outputs). Plug options for input: 5-15 Straight, 6-15 Straight, 5-20 Straight, 6-20 Straight, L5-15 Twist, L6-15 Twist, L5-20 Twist, L6-20 Twist, UK BS1363 or Intl Schuko. Plug options for output: 5-15C, L5-15C, L5-20C, 6-15C, L6-15C, L6-20C and LADD Deutsch DT06-2S. Alternatively, for both input and five outputs, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in/out user provided cord caps. Please choose pigtail option below for flying leads with no plug. Features: The DCP-24-5XLV-HD-24V 600 watt converter features full range, universal AC input capability and can be operated with 120 to 277VAC. The unit converts this AC power input to 600 watt at 25 Amp 24VDC output. IP67 rated, this unit is waterproof, wet and damp area approved and suitable for indoor or outdoor applications. Integrally designed protection includes overload, short circuit, over temperature and over voltage safeguards to prevent overheating and unit damage in case of faults or overly heavy current draw. This unit will limit current when an over current condition is encountered and recovers when the condition is removed. This unit will enter hiccup mode under short circuit conditions and recover when the fault is removed. The unit will also shut down when an over temperature condition occurs and recovers automatically when the temperature returns to normal levels. This power converter has a -30 / +60C operating temperature range and is UL UL1012 and UL60950-1 compliant as well as compliant with worldwide safety regulations for lighting. This unit has a 90% conversion efficiency and is suitable for use with moving LED signs and similar LED equipment. These units also feature Power Factor Correction, adjustable output current range from 8~ 16A either through the output cable or internal potential meter and have an input frequency range of 47 ~ 63Hz. NOTE: In order to obtain the best performance and the longest operational life from these units, it is recommended that you do not exceed 75% of the unit’s output amperage. To determine if this converter suits your desired application, add together the total wattage of the equipment you intend to use with this unit and divide this total by 24 volts to find the total amperage draw that will be placed upon the converter. For example, if you are using four of our LEDP10W-60E 60 watt LED lights, 240 watts divided by 24 volts is 10 amps. This would mean the DCP-25-4XDP is well suited as it would run at 75% capacity to produce the necessary 10 amps. Running these units at 100% of their capacity can create excess heat and lead to shortened converter life.
