Specifications / Additional Information
DCP-25-DIMM Power Converter | Features |
Line In Voltage: 100-277V AC @ 47~63 Hz | IP67 Rated Waterproof |
Line Out: 12V DC @ 25 Amps, 24V DC @ 12.5 Amps | Overload, Short Circuit ,Over Voltage, Over Temperature Protection |
Watts: 256W | International Lighting Safety Standards Compliant |
AC Input Connector: 1` Pigtail, Stripped/Tinned Leads | Suitable For LED Moving Signs |
DC Output Connector: 1` Pigtail, Stripped/Tinned Leads | Suitable For Wet or Damp Locations |
Dimming Type: 0-10V DC |  |
Protection: Short Circuit/Overload/ Over Voltage/Over Temperature | |
Mounting: Two Screw Slide Notches | |
Operating Temp: -30 / +60C | |
Efficiency: 90% | |
Dimensions: 9.6"-L 2.5"-W 1.5"-D | |
Weight: 1 lb |

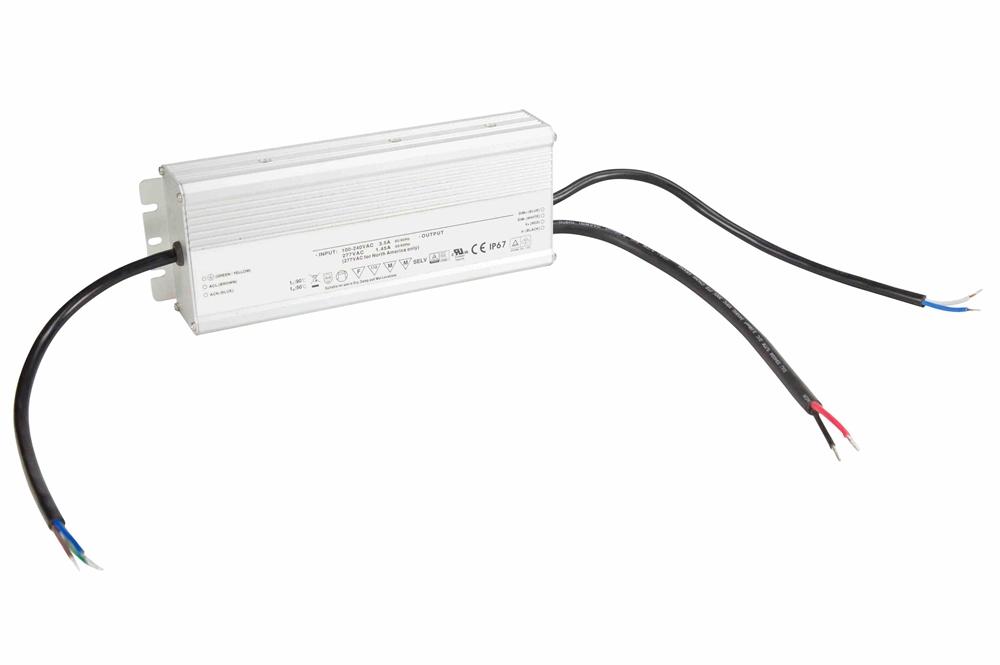

The Larson Electronics DCP-25-DIMM Waterproof Power Supply converts commonly used 120-240V AC electrical current to 12V DC @25 amps. This converter is designed to be hardwired into building, boat or vehicle electrical supplies where the voltage is typically within the 100-277V AC range and reduces it to 12V DC or 24V DC. Equipped with 0-10V dimming capabilities, the device allows users to use standard AC power to operate equipment like our LED light bars and HID Golights that require low voltage DC current. The DCP-25-DIMM power converter provides a safe and effective way for users to tap into and utilize common 120 to 240 Volt AC power sources and convert this current to 12 Volts DC or 24 Volts DC for use with equipment that requires 12/24 volt DC electrical power. This unit offers 0-10V DC dimming capabilities. The power converter features an IP67 rated waterproof design, making it suitable for indoor or outdoor use and is wet-damp area approved. This converter includes integral short circuit, over voltage, over temperature and overload protection that will shut down the unit or reduce output in case of faults and overloads to protect the unit and connected equipment from damage. Measuring 9.6 inches long by 2.6 inches wide by 1.5 inches deep, this unit weighs approximately one pound and is mounted with two conventional screws via slots that allow removal and repositioning simply by loosening the screws. This converter comes with clearly labeled input and output leads that are approximately 1-foot long and stripped and tinned for hardwired connections using butt splice connectors, wire screws, plates, etc. Features: The 256-watt converter features full range, universal AC input capability and can be operated with 100 to 277V AC. The unit converts this AC power input to 256 watts, 12V DC @ 25A or 24V DC @ 12.5A output. IP67 rated, this unit is waterproof, wet and damp area approved and suitable for indoor or outdoor applications. Integrally designed protection includes overload, short circuit, over temperature and over voltage safeguards to prevent overheating and unit damage in case of faults or overly heavy current draw. This unit will limit current when an over current condition is encountered and recovers when the condition is removed. This unit will enter hiccup mode under short circuit conditions and recover when the fault is removed. The unit will also shut down when an over temperature condition occurs and recovers automatically when the temperature returns to normal levels. This power converter has a -30 / +60C operating temperature range adheres with worldwide safety regulations for lighting. This unit has a 90% conversion efficiency and is suitable for use with dimmable LED equipment. These units also feature Power Factor Correction, adjustable output current range from 8~ 16A either through the output cable or internal potential meter and have an input frequency range of 47 ~ 63Hz. NOTE: In order to obtain the best performance and the longest operational life from these units, it is recommended that you do not exceed 75% of the unit’s output amperage. To determine if this converter suits your desired application, add together the total wattage of the equipment you intend to use with this unit and divide this total by 12 volts to find the total amperage draw that will be placed upon the converter. For example, if you are using two of our LEDP10W-120E 120 watt LED lights, 240 watts divided by 12 volts is 20 amps. This would mean the DCP-25-DIMM is well suited as it would run at 75% capacity to produce the necessary 20 amps. Running these units at 100% of their capacity can create excess heat and lead to shortened converter life. |
