Explosion Proof LED Drop Light - C1D1 - Transformer Steps Down 120/277VAC to 12/24VDC - 50' 12/3 SOOW Cord w/ Gen. Area Cord Cap

Explosion Proof LED Drop Light - C1D1 - Transformer Steps Down 120/277VAC to 12/24VDC - 50' 12/3 SOOW Cord w/ Gen. Area Cord Cap

$2,008.00 CAD
$2,008.00 CAD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Specifications / Additional Information
EHL-LED-120X12-50 Explosion Proof LED Drop Light Ratings/Approvals
Listing: United States Class I, Divisions 1 & 2, Groups C, D
Dimensions: 16.5"-L x 5"-Diameter Class II, Divisions 1 and 2, Groups F, G
Lumens: 735
Total Watts: 7 Watts
Voltage: 120-277 V AC, 50/60 Hz Stepped Down to 12/24 V DC via Encapsulated Inline Transformer Special Orders - Requirements
Color Temp: 6000K
Mounting: Aluminum Hook
Wiring: 50' 12/3 SOOW Cord w/ General Area Cord Cap
Cord Cap Options: 5-15, 6-15, 5-20, 6-20, L5-15, L6-15, L5-20, L6-20, BS1363, Schuko, or Pigtail
' Product Overview '
function MM_openBrWindow(theURL,winName,features) { //v2.0 window.open(theURL,winName,features); }

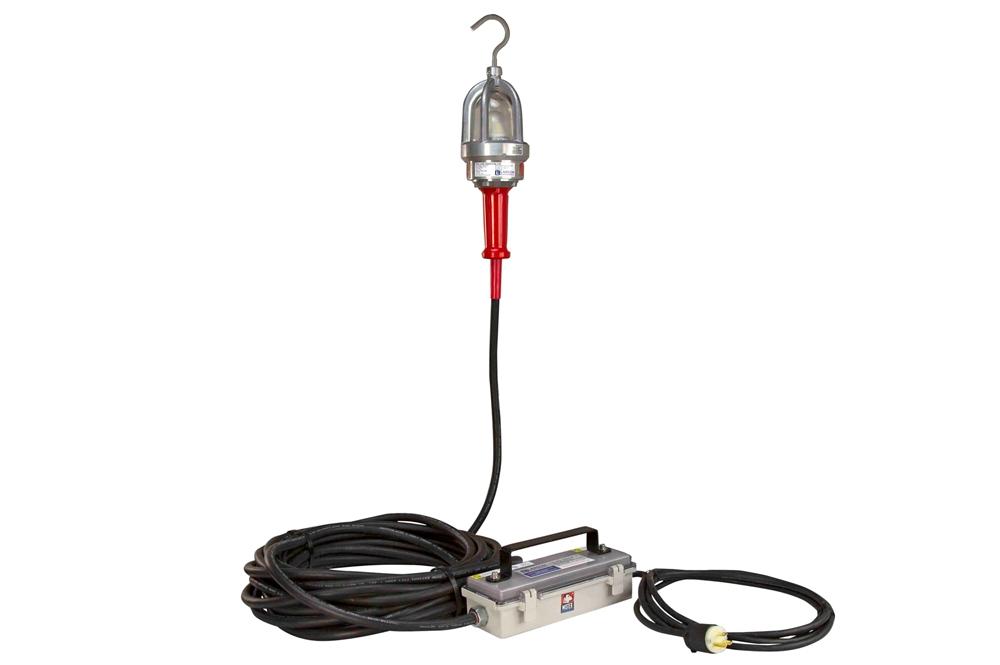

Made in the USA The EHL-LED-120XLV-50 from Larson Electronics is an Explosion Proof LED Drop Light / Trouble Light that is UL Listed Class I Divisions 1 & 2 Groups C and D - and is ideal for general work activities in hazardous locations requiring explosion proof protection. This explosion proof handlamp operates on 120/277 V AC, 50/60 Hz stepped down to 12/24 V DC via an encapsulated inline stepdown transformer. This 7 watt explosion proof LED work light from Larson Electronics produces 735 lumens of bright white light and comes complete with 50 feet of explosion proof cord. The EHL-EHL-LED-120XLV-50 LED drop light has no ballast and the housing is constructed of non sparking aluminum, which results in a very lightweight unit. This hazardous location hand lamp is Class I, Divisions 1 and 2 and Class II, Divisions 1 and 2 hazardous location environment approved. An inline encapsulated transformer steps down 120-277 V AC, 50/60 Hz to the 12/24 V DC needed to operate the light.
Click Photo to Enlarge
This 7 watt LED drop light is suitable for use in areas where petrochemical vapors and various dusts are present and projects 735 lumens of light, which is twice the lumens per watt output of a 100 watt incandescent bulb. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. This hand lamp has a high efficiency LED bulb that requires no ballast, so the operator doesn't need to drag the ballast housing around. This can be particularly annoying when the ballast becomes entangled in the cord. This explosion proof LED hand light operates on 12 Volts DC or 24 Volts DC for for low voltage operations. An included inline transformer allows this unit to plug into a standard outlet and operate from 110-277 V AC, then steps the current down to 12/24 V DC for operating the lamp. The light produced by this unit has a 6000K color temperature, which is much sharper and whiter than the light produced by incandescent lamps. The light produced by this lamp is ideal for close work and inspection activities where good contrast and true color representation is needed. The LED lamp in this unit runs much cooler than incandescent or flourescent lamps, resulting in a lamp housing that remains cool to the touch and eliminates the accidental burns often encountered with incandescent drop lights.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125 V Rated L5-15 Twist Lock Plug 15 Amp / 125 V Rated L6-15 Twist Lock Plug 15 Amp / 250 V Rated
UK BS1363 Straight Blade Plug 13 Amp / 250 V Rated / Internal Fuse Intl Schuko 2-Pin Plug 16 Amp / 250 V Rated / Grounded Flying Leads / Pigtail Wires
Wiring/Plug: This explosion proof LED drop light is equipped with 50 feet of 12/3 chemical and abrasion resistant SOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110 V wall outlets with ground, standard 5-20 20 amp straight blade plug for 110 V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240 V wall outlets with ground, standard 6-20 20 amp straight blade plug for 220-240 V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L5-20 20 amp twist lock plug for 125 V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240 V twist lock outlets, NEMA L6-20 20 amp twist lock plug for 240 V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250 V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug.
