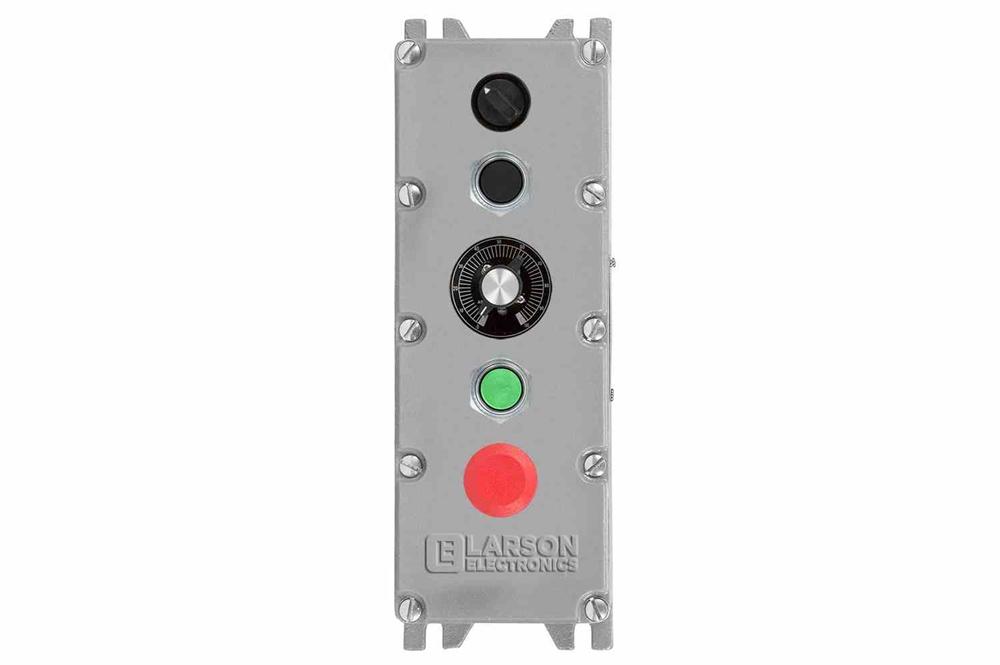

Explosion Proof Control Station - C1D1/C2D1 - (1) 2-pos Switch (2) PBs (1) E-stop - 10k Potentiometer

LARSON ELECTRONICSSKU: PL3-EPCS-2PS-PB.M.B-PTM.10K-PM.M.G-ESTP
filler

Precio:
Precio de venta$6,534.00

Descripción

Specifications / Additional Information
EPCS-2PS-PB.M.B-PTM.10K-PM.M.G-ESTP Explosion Proof Control Station Ratings
Listing: United States, Canada Class I, Division 1&2 Groups C,D
Unit Type: Explosion Proof Control Station Class I, Zones 1&2 Groups llB,llA
Dimensions: 13" x 4.375" x 4.1875" Class II, Division 1&2 Groups E,F,G
Weight: - Class III
Rated Voltage: 600V AC (Maximum) NEMA 7(C,D) 9(E,F,G)
Emergency Stop: (1) Push Button Mushroom Head Pull-to-Reset Operation - Red
Selector Switch: (1) 2 Positions
Push Buttons: (2) Momentary Push Button Contact Switch - (1) Black, (1) Green
Potentiometer: (1) 2W, 30V DC - 10k Ohm
Materials: Aluminum and Stainless Steel Toll Free: 1-800-369-6671
Enclosure Type: Drilled and Tapped (5) Operator Holes Intl: 1-214-616-6180
Mount: Surface
Hub Size: 3/4" NPT
' Product Overview '
The Larson Electronics EPCS-2PS-PB.M.B-PTM.10K-PM.M.G-ESTP Explosion Proof Control Station is suitable for busy operations in hazardous locations. Featuring five drilled and tapped operator holes, the unit supports several control mechanisms for heavy-duty machines. An emergency-stop push button, two-position selector switch, momentary push buttons and a 10k Ohm potentiometer (2 watts, 30V DC) can be found on this station. Constructed of aluminum with stainless steel components, the unit is surface mount compatible. The EPCS-2PS-PB.M.B-PTM.10K-PM.M.G-ESTP is a durable explosion proof control station designed for hazardous locations. Featuring a maximum voltage rating of 600V AC, this unit supports a total of five drilled and tapped operator holes at the cover. For emergency stop, a single red mushroom push button is available (pull-to-reset operation). Operators may engage commands using one, two-position selector switch and two, momentary push button contact switches (black and green). The explosion proof control station also contains one, 10k Ohm potentiometer (2 watts, 30V DC). The EPCS-2PS-PB.M.B-PTM.10K-PM.M.G-ESTP is constructed of aluminum with stainless steel parts. The NEMA-rated control station is compatible with surface mount configurations. Applications: Petroleum refineries, chemical and petrochemical plants, paint spray booths, food manufacturing buildings, agricultural sites, grain storage centers, small motors, manual control and more.
