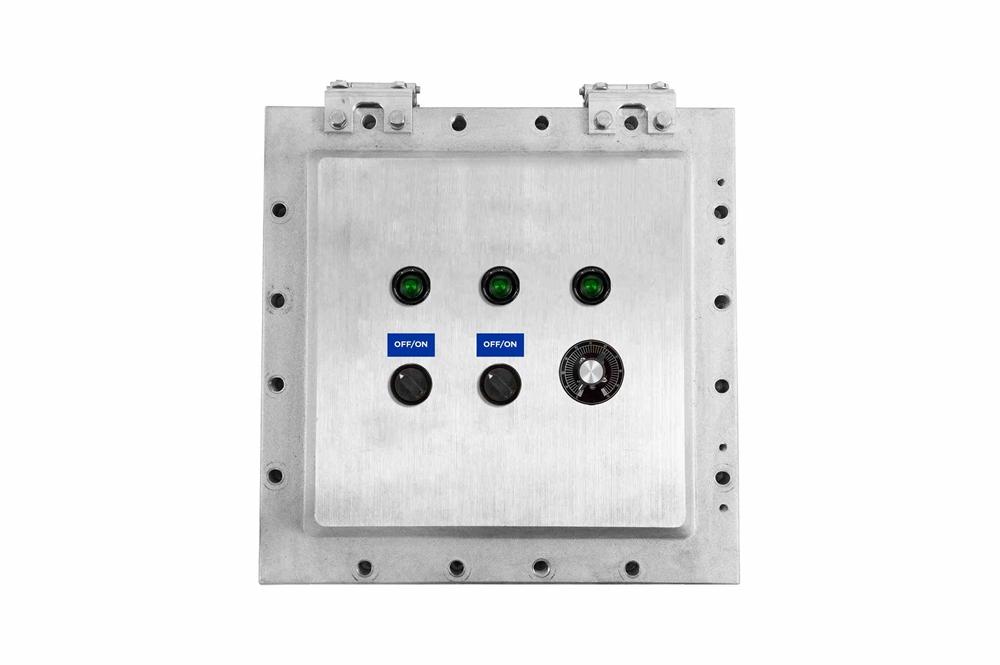

Explosion Proof Control Station - C1D1/C2D1 - (3) Green Pilot Lights, (2) 2-pos Switches - Potentiometer - (2) Hubs
Explosion Proof Control Station - C1D1/C2D1 - (3) Green Pilot Lights, (2) 2-pos Switches - Potentiometer - (2) Hubs
| EPCS-2X2PS-PTM.10K-2W-3XPL.G-2X0.75S-120V Explosion Proof Control Station | Ratings/Approvals |
| Listing: NRTL Listed for United States and Canada | Listed for United States & Canada |
| Unit Type: Explosion Proof Control Station | Class I, Divisions 1 & 2, Groups C, D |
| Internal Dimensions: 10€Â-L x 10€Â-W x 8€Â-H | Class I, Zones 1 & 2, Groups IIB, IIA |
| External Dimensions: 15.25" x 10.9" x 15.25" | Class II, Divisions 1 & 2, Groups E, F, G |
| Unit Weight: 82 lbs | Class III, Divisions 1 & 2 |
| Shipping Weight: 137 lbs | NEMA 3R, 4, 7 (C, D), 9 (E, F, G) |
| Voltage: - | NRTL Listed to UL 508A |
| Amps:Â Â - | NRTL Listed to UL 1203 |
| Indicator Lights: (3) Green LED Indicator Lights [120V] - Top Row | NRTL Listed to CSA C22.2 No 14, 25, 30 |
| Switches: (2) 2-position Switches, Maintained [On/Off Label] - Bottom Row | |
| Potentiometer: (1) 10K ohm, 30V DC Max Voltage, 2W Capacity - Bottom Row | |
| Materials: Copper-free Aluminum | |
| Mount: Surface | Toll Free:Â 1-800-369-6671 |
| Hub Size: (2) 3/4" NPT Hubs on South Side | |
| The Larson Electronics EPCS-2X2PS-PTM.10K-2W-3XPL.G-2X0.75S-120V Explosion Proof Control Station is suitable for busy operations in hazardous locations. This system features three indicator lights, two 2-position switches and a 10K ohm potentiometer. The NEMA 4X-rated station contains two, 3/4" NPT hubs on the south side of the unit. The EPCS-2X2PS-PTM.10K-2W-3XPL.G-2X0.75S-120V is a durable explosion proof control station designed for hazardous locations. This unit contains three green indicator lights that operate on 120V. A total of two 2-position maintained switches with an On/Off label can be found on the control station. One 10K ohm potentiometer (30V DC maximum voltage, 2-watt capacity) is also accessible on the explosion proof unit. The EPCS-2X2PS-PTM.10K-2W-3XPL.G-2X0.75S-120V is constructed of cast aluminum, equipped with stainless steel hinge and bolts and includes a watertight gasket for a NEMA 4X protection rating. A total of two, 3/4" NPT hubs are located on the south side of this unit. The explosion proof control station is compatible with surface mount configurations. Applications: Petroleum refineries, chemical and petrochemical plants, paint spray booths, food manufacturing buildings, agricultural sites, grain storage centers, small motors, manual control and more. |
