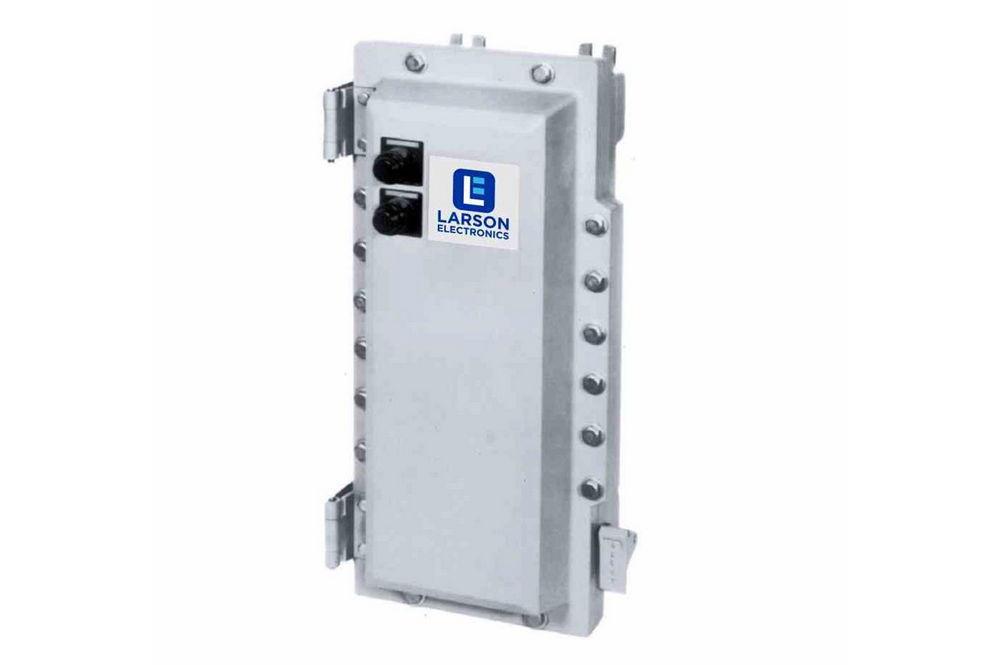

Explosion Proof Motor Control Station - Class I, II, III - 5 HP Polyphase - (3) Pilot Lights - IP66

LARSON ELECTRONICSSKU: PL3-EPCS-MTS-3P-5HP-480V-PB.RG-3XPL
filler

Precio:
Precio de venta$15,162.00

Descripción

Specifications / Additional Information
EPCS-MTS-3P-5HP-480V-PB.RG-3XPL Explosion Proof Hinge Cover Motor Control Station Features/Ratings
Listing: United States, Canada Class I, Division 1&2 Groups B,C,D
External Dimensions: 18.25" H x 14.38" W x 12.13" D Class II, Division 1 Groups E,F,G
Weight: - Class II, Division 2 Groups F,G
Configuration: 3-Pole Class III
Coil Voltage: 120V AC, 230V AC or 24V DC NEMA 3, 3R, 4, 4X, 7(B,C,D), 9(E,F,G), 12
Lamp Voltage: 120V AC, 230V AC or 24V DC NEMA Size 0
Max. HP Polyphase: 5 Wet Location
Max Continuous Amps: 18 IP66
Max HP @ 200V AC: 3
Max HP @ 230V AC: 3
Max HP @ 480/575V AC: 5
Push Buttons: Start/Stop - Momentary
Pilot Lights: Green (Run), Red (Stop), Amber (Trip)
Materials: Cast Copper Free Aluminum
Hardware Materials: Stainless Steel
Mounting: Surface Mount
Hub Sizes: 2" NPT
Hub Qty: 3 Intl: 1-214-616-6180
Hub Locations: One on Top and Two on Bottom
Conduit: Operator Provided
' Product Overview '
The Larson Electronics EPCS-MTS-3P-5HP-480V-PB.RG-3XPL Explosion Proof Motor Control Station is designed for use in Class I, II and III rated combustible sites. This 3-pole device contains three pilot lights and features start/stop momentary push buttons. Suitable for wet locations, the IP66-rated unit provides operators with general motor control protection, motor overload and under-voltage protection. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The EPCS-MTS-3P-5HP-480V-PB.RG-3XPL is made of corrosion-resistant cast copper-free aluminum and features a semi-clamshell design with an external flanged ground joint between the body and cover to make interior components easily accessible. A motor operating starting handle is located on the right side wall of the enclosure. Equipped with an IP66 rating, the control station is offered in the following coil and lamp voltages: 120V AC, 230V AC or 24V DC. This 3-pole unit is equipped with start/stop momentary push buttons and green (run), red (stop) and amber (trip) pilot lights. When the motor is running, the green pilot light is on; and when the motor is off, the red pilot light is activated. The amber light is activated when the breaker is tripped by the motor. The 18-amp explosion proof device includes versatile internal operating mechanisms that allow easy field adjustment and can accommodate various standard manufacturer starters. This NEMA-rated explosion proof motor control enclosure`s body, cover and operating handle is constructed of copper-free aluminum, and the operating shaft and brushing is stainless steel. Stainless steel springs allow operators to clearly see that all bolts are fully retracted from the body. A neoprene cover gasket seals out moisture and is permanently attached to the cover. Wiring: The explosion proof station contains three, 2" NPT hubs for completing electrical connections. One 2" NPT hub is located at the top of the unit and two 2" NPT hubs are located at the bottom. Mounting: The EPCS-MTS-3P-5HP-480V-PB.RG-3XPL caters to simple installations, facilitated by an included pre-drilled mounting plate within the enclosure, which is field removable. A steel bracket for lifting larger enclosures during installation is also included in the standard model. Applications: Indoor and outdoor general motor control protection in hazardous locations, areas where frequent washdowns occur, or where heavy rain and water spray are present, motor overload and under-voltage protection, and locations where a centrally located motor control is necessary.
