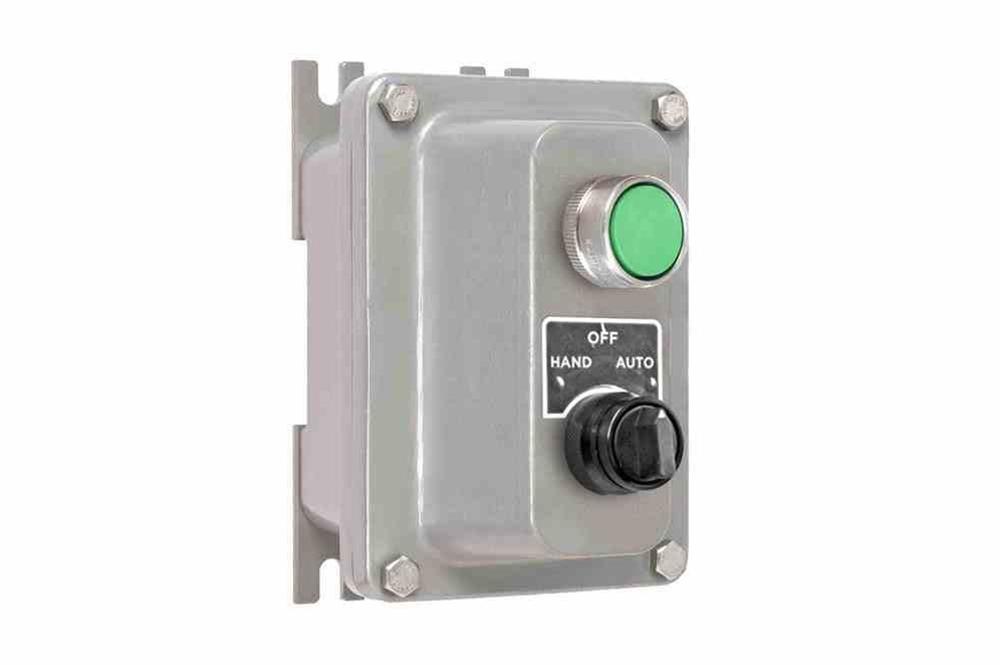

20A Explosion Proof Switch w/ Push Button - Class I, II, III - (1) 3-position Switch, (1) Momentary PB

LARSON ELECTRONICSSKU: PL3-EPCS-PB20-1XMPB-3PSW-N4X
filler

Precio:
Precio de venta$6,294.00

Descripción

Specifications / Additional Information
EPCS-PB20-1XMPB-3PSW-N4X Explosion Proof 3-Position Push Button Switch Ratings/Approvals
Listing: NRTL Listed for United States, Canada Class I, Divisions 1 & 2, Groups C, D
Unit Type: Explosion Proof Switch with Push Button Class II, Division 1, Groups E, F & G
Dimensions: 13.08" x 8.14" x 9.82" Class III
Weight: - NEMA 3R, 4, 4X, 7 (C, D), 9 (E, F, G)
Voltage Rating: 600V AC NRTL Listed to UL 508A, UL 1203
Amp Rating: 20A NRTL Listed to CSA C22.2 No 14, 25, 30
Selector Switch Type: 3-Position
Push Button Type: Momentary
Push Button Color: Red, Green or Black
Contacts: (2) NO
Material: Copper Free Aluminum
Mount: Surface
Hubs: (1) 1/2" or 3/4"
' Product Overview '
The Larson Electronics EPCS-PB20-1XMPB-3PSW-N4X Explosion Proof 3-Position Switch with Push Button is suitable for use in Class I, II and III rated combustible sites. This weatherproof unit is rated at 600V AC and 20 amps. Protected by a copper-free aluminum enclosure, the control device contains one momentary push button and one 3-position switch. The EPCS-PB20-1XMPB-3PSW-N4X is recommended for motor or equipment control in flammable facilities. The 600V AC rated unit supports one 3-position switch and one momentary push button. Rated at 20-amps, options for the color of the push button includes: red, green or black. The NEMA-rated device is constructed of copper-free aluminum. The EPCS-PB20-1XMPB-3PSW-N4X comes with stainless steel captive screws for the cover assembly. Hubs: The explosion proof device is offered with one 1/2" NPT or 3/4" NPT hub for completing wiring connections. Mount: The EPCS-PB20-1XMPB-3PSW-N4X is compatible with surface mounting applications. Applications: Starters, remote control of motors, chemical processing plants, food processing facilities, oil refineries and other hazardous locations applicable to the unit's classified ratings.
