Explosion Proof Control Station - C1D1/C2D1 - 2-Pos Switch - 10k Ohm Potentiometer - 24VDC Pilot

LARSON ELECTRONICSSKU: PL3-EPCS-PBS-2PS.OF-PTM.10K.LCK-PLG-24VDC
filler

Precio:
Precio de venta$4,562.00

Descripción

Specifications / Additional Information
EPCS-PBS-2PS.OF-PTM.10K.LCK-PLG Explosion Proof Control Station Ratings/Approvals
Unit Type: Explosion Proof Control Station Class I, Div. 1 & 2, Groups C,D
Dimensions: 13" x 4.375" x 4.1875" Class I, Zones 1 & 2, Groups llB, llA
Weight: - Class II, Div. 1 & 2, Groups E,F,G
Rated Voltage: 600V AC (Maximum) Class III
Selector Switch: 2 Positions - On/Off (Maintained) NEMA 7(C,D) 9(E,F,G)
Potentiometer: (1) Short, Single Turn - 10k Ohm - Lockable, 2W 30V DC
Pilot Light: (1) Short, Green - 24V DC - 0.6 Watts - 25mA Amp Draw
Materials: Aluminum and SS Toll Free: 1-800-369-6671
Enclosure Type: Drilled and Tapped (3) Operator Holes Intl: 1-214-616-6180
Mount: Surface Fax: 1-903-498-3364
Hub Size: 3/4" NPT E-mail:
' Product Overview '

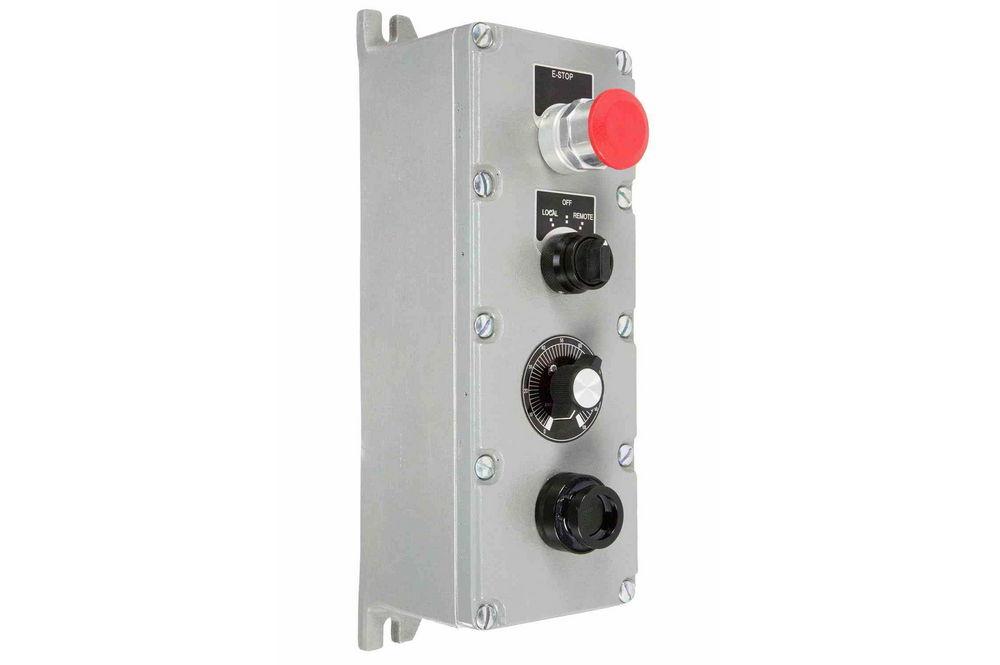

The Larson Electronics EPCS-PBS-2PS.OF-PTM.10K.LCK-PLG Explosion Proof Control Station is suitable for busy operations in hazardous locations. Featuring three drilled and tapped operator holes, the unit supports several control mechanisms for heavy-duty machines. A two-position selector switch, green pilot light and single-turn 10k Ohm (lockable) potentiometer can be found on this station. Constructed of aluminum with stainless steel components, the unit is surface mount compatible. The EPCS-PBS-2PS.OF-PTM.10K.LCK-PLG is a durable explosion proof control station designed for hazardous locations. Featuring a maximum voltage rating of 600V AC, this unit supports a total of three drilled and tapped operator holes at the cover. Operators may engage commands using a two-position (on/off), maintained selector switch. A short, green pilot light for real-time notifications, as well as a short, single turn 10k Ohm potentiometer are also available. Designed for security, the potentiometer is lockable. The EPCS-PBS-2PS.OF-PTM.10K.LCK-PLG is constructed of aluminum with stainless steel parts. The NEMA-rated control station is compatible with surface mount configurations. Applications: Petroleum refineries, chemical and petrochemical plants, paint spray booths, food manufacturing buildings, agricultural sites, grain storage centers, small motors, manual control and more.
