Explosion Proof Electric Inline Axial Fan - Class I, Div. I - 220V 50 Hz - No Duct

LARSON ELECTRONICSSKU: PL3-EPF-10P.3-220V-NFK
filler

Precio:
Precio de venta$3,570.00

Descripción

Specifications / Additional Information
EPF-10P.3Explosion Proof Inline Axial Fan UL and C-UL Listed
Air consumption: 38 cfm Class I, Div. 1, Groups C and D
Voltage: 220V 50 Hz Class II, Div. 1, Groups E, F, G
Startup Amps : 3.1 (Max at Startup) T3C Temp rating -30C to 160C
Constant Amps : 1.3 Meets UL and Canadian UL Safety Ratings
Motor: 1/4 Horsepower
CFM Delivery :974
Noise Level: 72 dbA @ 3ft
Fan Type: Inline Axial Fan Toll Free: 1-800-369-6671
Size: 16€W x 16.75€H x 12.5€D Intl: 1-214-616-6180
Wiring: 20 Foot Cord w/ 220V 6-20 exp plug Fax: 1-903-498-3364
Protection: Dual Lug Ground Body/Automatic Reset Thermal Overload
' Product Overview '

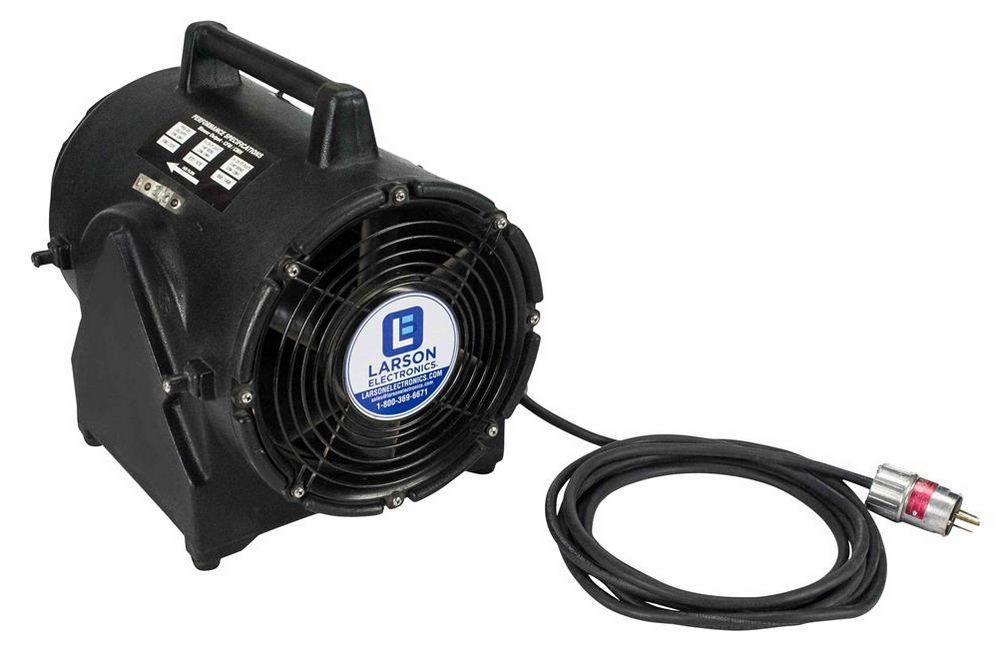

Made in the USA The Larson Electronics EPF-10P.3-220V-NFK Explosion Proof Electric Inline Axial Fan is UL and CUL listed and safely and effectively redirects stale air from hazardous location areas. This fan does not include the static conductive duct and is designed for portability and can be linked in series when larger lengths of conductive duct are needed. The EPF-10P.3-220V-100 meets UL and Canadian UL safety ratings for Class 1, Division 1, Groups C and D & Class II Division 1, Groups E, F and G. This explosion proof fan delivers high-performance airflow with a 974 overall CFM rating and 786 CFM when fitted with a 15 foot duct and a 90 degree bend. The 1/4 horsepower electric motor runs on standard 220V 50 Hz and for added safety this fan includes a pre-wired explosion proof switch, dual grounding lugs on the steel housing and 20 foot cord fitted with a standard 220V straight blade plug. At start up, the motor within the portable explosion proof fan will draw 3.1 amps. After startup and the fan is at operational speed, the motor will draw a constant 1.3 amps. When operating multiple units on a single circuit, it is best to turn one fan on at a time to lower total amperage spike introduced to the circuit. This explosion proof fan is designed for portability and durability with a light weight compact body constructed of powder coated steel and a non-sparking aluminum blower wheel. The rubber coated base feet and an integral carry handle provide easy transport and secure placement when placed on a flat surface. This unit includes an 8 inch intake and exhaust flange and a built in automatic reset thermal overload for added protection. *NOTE: Explosion Proof Fans can be used as an intake and as an exhaust fan.*
INCLUDES: 1. Hazardous location ventilation fan (blower). Features:
  •  1/4 HP electric motor that operates on 220 VAC.
  •  Explosion-proof switch installed and wired.
  • 8 inch intake and exhaust flange.
  •  974 cfm free air delivery
  •  786 cfm when a 15ft. duct and a 90 degree bend are present while in use.
  •  661 cfm when a 15ft. duct and two 90 degree bends are present while in use.
  •  72 dbA @ 3ft.
  •  Approved for Class I, Div. 1, Groups C and D and Class II, Div. 1, Groups E, F, G.
  •  Aluminum non-sparking blower wheel.
  •  Dual grounding lugs installed on steel housing.
  •  All Steel, powder coated red and rubber base feet.
  •  Automatic reset thermal overload.
  •  Carry handle frame.
  •  Pre-Wired With 20 Ft. Cord.
  •  Pre-Wred with a 20 amp 220V plug.
