24" Electric Explosion Proof Fan - C1D1/C2D1 - 7980 CFM - 10' 16/3 SOOW Cord w/ EXP Plug

LARSON ELECTRONICSSKU: PL3-EPF-24-PM-10C-EPP
filler

Precio:
Precio de venta$3,460.00

Descripción

Specifications / Additional Information
EPF-24-PM-10C-EPP Explosion Proof Circular Fan/Blower Ratings/Approvals
Listing: NRTL Listed for United States and Canada Class I, Divisions 1 & 2, Groups C, D
Dimensions: 24"Dia x 15"D Class II, Divisions 1 & 2, Groups E, F, G
Weight: - T3B Temp Rating
Voltage: 115V or 230V, 60Hz
HP Motor: 0.25 HP
Motor Insulation: Class B
CFM Delivery: 7,980
Sound Level: 75db @ 3ft
Start-up Amps: 9.8A @ 115V - 4.9A @ 230V Special Orders - Requirements
Ambient Temperature: 40°C (104°F)
Ambient Temperature Rating: 10°C to 40°C
Mounting: Ceiling or Wall Mount
Cord: 10' 16/3 SOOW Cord w/ EXP Cord Cap
EXP Cord Cap: 5-15P, 5-20P or 6-20P
' Product Overview '

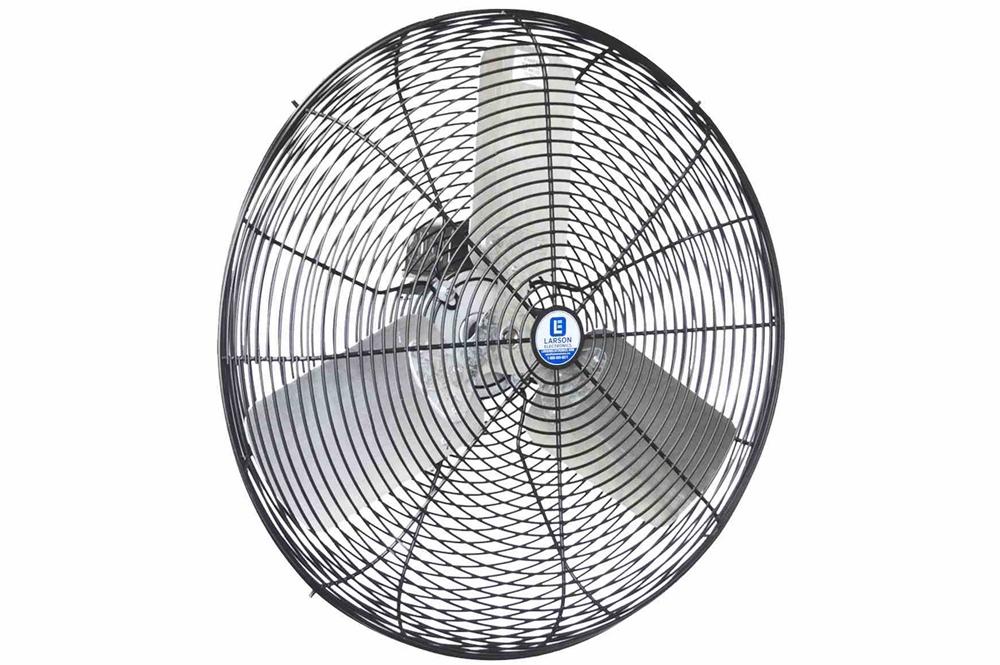

Made in the USA The Larson Electronics EPF-24-PM-10C-EPP Explosion Proof Circular Fan redirects and circulates air within hazardous locations. This explosion proof fan provides a high 7,980 CFM output for effective airflow in larger spaces and comes with 10 feet of 16/3 SOOW cord with an explosion proof cord cap. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS PRODUCT* This electric explosion proof circular fan is suitable for confined spaces and is approved for use within Class I, Divisions 1 & 2 and Class II, Divisions 1 & 2 hazardous locations. This fan features a high efficiency 1/4 HP motor which is fully encapsulated and a precision balanced, non sparking aluminum blade assembly for high output and protection against accidental ignitions. This fan has 24" propeller diameter and produces over 7,980 CFM of air output for excellent circulation of air in large areas. The EPF-24-PM-10C-EPP has an ambient temperature rating of 10°C to 40°C. Voltage: This fan is compatible with single-phase 115V or 230V 60Hz and operates at 1,725 RPM. A cast aluminum junction box houses the fan motor and allows for electrical connections to the fan.
Click Photos to Enlarge
5-15 Straight Blade Plug 5-20 Straight Blade Plug 6-20 Straight Blade Plug
Wiring & Plug: This explosion proof fan is equipped with 10 feet of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an explosion proof cord cap for easy connection to explosion proof outlets. Plug options include a 5-15 15 amp straight blade plug for use with 120V explosion proof outlets, a 5-20 20 amp straight blade plug for use with 120V explosion proof outlets, or a 6-20 20 amp straight blade plug for use with 220-240V explosion proof outlets. **PLEASE NOTE** voltage ratings on plugs and outlets are MAXIMUM voltage. For low voltage applications, proper voltage must be applied to the outlet or damage to the light fixture will occur. Mount: Mounting options include ceiling mount for suspended pendant mounting and a wall mounting kit for mounting to flat surfaces. A 12" stainless steel safety cable is included with ceiling mount kits.
