30" Electric Explosion Proof Fan - 8723 CFM - 25' 16/3 SOOW w/ EXP Plug - C1D1 & C2D1

LARSON ELECTRONICSSKU: PL3-EPF-30-PM-EYM-25-EPP
filler

Precio:
Precio de venta$3,968.00

Descripción

Specifications / Additional Information
EPF-30-PM-EYM-25-EPP Explosion Proof Fan/Blower Approvals/Ratings:
Dimensions: 30"-Dia x 15-D Class I, Divisions 1 & 2, Groups C, D
Weight: 64 lbs. Class II, Divisions 1 & 2, Groups E, F, G
Motor: 0.25 Horsepower T3B Temp Rating
Voltage: 115V or 230V AC
Ambient Temperature Rating: 10°C to 40°C
Motor Insulation: Class B
Start-up Amps: 5.6A @ 115V - 2.8A @ 230V
Fan Type: Circular Fan Toll Free: 1-800-369-6671
CFM Delivery: 8,723 Intl: 1-214-616-6180
Wiring: 25` 16/3 SOOW Cable w/ Explosion Proof Plug Fax: 1-903-498-3364
Cord Cap: 5-15 Straight (120V), 5-20 Twist (120V), or 6-20 Twist (250V) Explosion Proof Plug
' Product Overview '

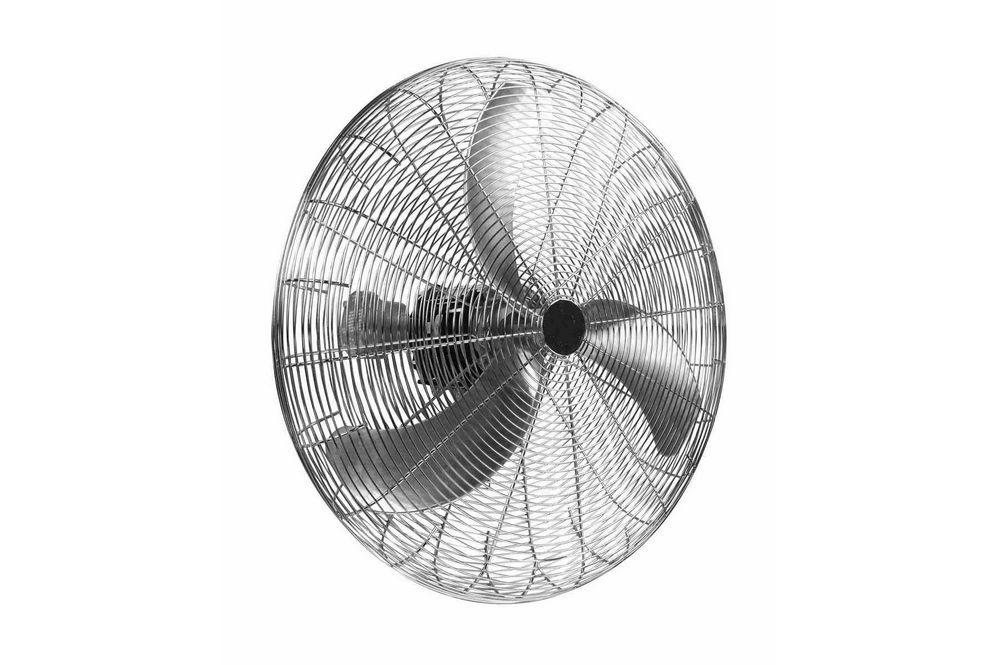

Made in the USA The Larson Electronics EPF-30-PM-EYM-25-EPP Explosion Proof Circular Fan redirects and circulates air within hazardous locations. This explosion proof fan meets UL standards for hazardous areas and provides a high 8,723 CFM output for effective airflow in larger spaces. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS PRODUCT* This electric explosion proof circular fan is suitable for confined spaces and is approved for use within Class I, Divisions 1 & 2 and Class II, Divisions 1 & 2 hazardous locations. This fan features a high efficiency 1/4 HP motor which is fully encapsulated and a precision balanced, non sparking aluminum blade assembly for high output and protection against accidental ignitions. This fan has 30" propeller diameter and produces over 8,723 CFM of air output for excellent circulation of air in large areas. The EPF-30-PM-EYM-25-EPP has an ambient temperature rating of 10° to 40°C. The EPF-30-PM-EYM-25-EPP fan is rated for single phase 60Hz and operates at 1,140 RPM. A cast aluminum junction box houses the fan motor and allows for electrical connections to the fan. Mounting options include ceiling mount for suspended pendant mounting, wall mounting kit for mounting to flat surfaces, and a pole top mount for attached to floor stands. A 12` stainless steel safety cable is included with ceiling mount kits.
Click Photos to Enlarge
5-15 Straight Blade Plug 5-20 Straight Blade Plug 6-20 Straight Blade Plug
Wiring & Plug: This explosion proof fan is equipped with 25 foot of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an explosion proof cord cap for easy connection to explosion proof outlets. Plug options include a 5-15 15 amp straight blade plug for use with 120V explosion proof outlets, a 5-20 20 amp straight blade plug for use with 120V explosion proof outlets, or a 6-20 20 amp straight blade plug for use with 220-240V explosion proof outlets.
