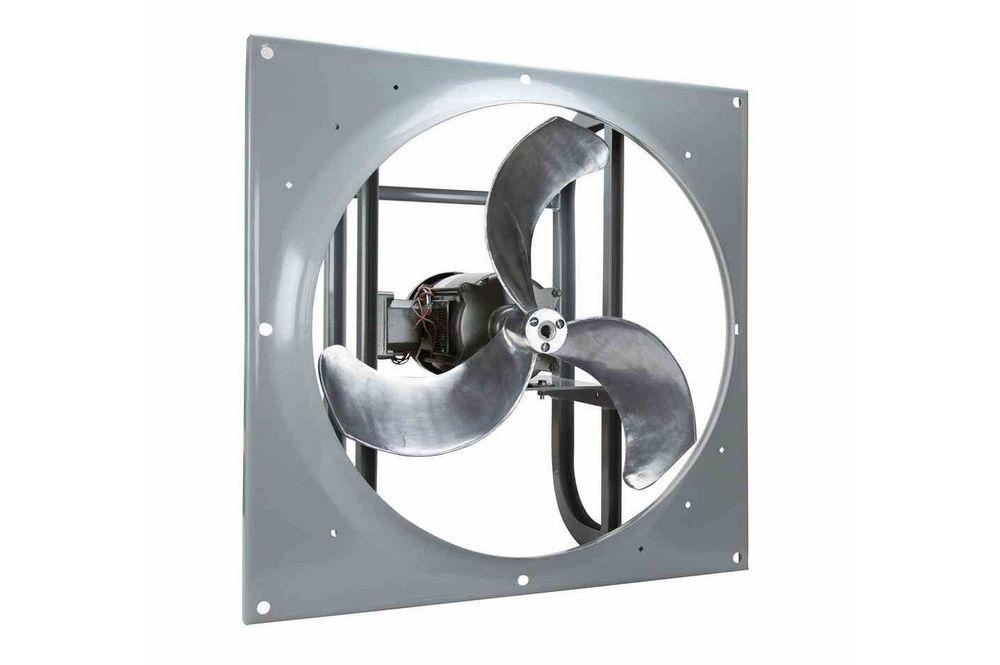

16" Explosion Proof Low Pressure Fan - 2950 CFM - 1/4 HP - 115V - C1 Group D & C2 Groups F & G

LARSON ELECTRONICSSKU: PL3-EPF-LPSM-16-0.25HP
filler

Precio:
Precio de venta$4,342.00

Descripción

Specifications / Additional Information
16" Explosion Proof Low Pressure Fan - 2950 CFM - 1/4 HP - 115V - C1 Group D & C2 Groups F & G Ratings/Features:
Type: Low Pressure Industrial Fan Listed for United States
Propeller Dimensions: 16" Diameter Class I, Divisions 1 & 2, Group D
Propeller Material: Spark-Resistant Cast Aluminum Class II, Divisions 1 & 2, Groups F & G
Weight: 40 lbs Spark-Resistant Propeller
Voltage: 115V AC Single Phase Up To 2950 CFM Air Movement
Motor: 1/4 HP Fully Enclosed Explosion Proof Rated for Hazardous Environments
Rotations Per Minutes (RPM): 1725 Made in the USA
Peak CFM (@ 0" SP): 2950
Max Sounds Level @ 5`: 17.6 (sones), 69.68 (db)
Wiring: Hard-Wire
Mounting: Permanent Mount (4 Holes) Toll Free: 1-800-369-6671
  Intl: 1-214-616-6180
  Fax: 1-903-498-3364
  E-mail:
' Product Overview '
Made in the USA The EPF-LPSM-16-0.25HP from Larson Electronics is a low pressure explosion proof industrial fan that operates on 115V AC voltage. This explosion proof industrial fan features a 16" diameter spark resistant cast aluminum blade that moves air at a rate of up to 2950 cubic feet per minute (CFM) for superior ventilation and air movement. The EPF-LPSM-16-0.25HP is powered by a fully enclosed and explosion proof 1/4 horsepower motor. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS PRODUCT* The EPF-LPSM-16-0.25HP explosion proof fan is rated for Class I Group D and Class II Groups F & G hazardous environments. The 16" diameter propeller on this explosion proof low pressure fan is constructed from cast aluminum to resist sparking further increasing the safety of the hazardous environment in which the fan is being utilized. This single phase explosion proof industrial fan has a 1/4 horsepower fully enclosed motor that can spin the propeller at a rate of 1725 RPM. Voltage: The EPF-LPSM-16-0.25HP explosion proof ventilation fan can operate on 115V AC. Wiring: The EPF-LPSM-16-0.25HP is a hard-wired ventilation fan that should be installed according to national, state and local electrical and mechanical codes. Applications: Class I Group D and Class II Groups F & G hazardous areas that require ventilation including but not limited to the following: clean rooms, marijuana extraction rooms, laboratory hoods, oil refineries, grain mills, chemical plants, welding shops, chemical storage areas and battery changing areas.
Made in USA Quality CFM Static Pressure (SP) Ratings
1. Fully enclosed explosion proof 1/4 HP motor. 2. Spark-resistant cast aluminum 16" diameter propeller. 3. Class I Group D and Class II Groups F & G rated. 4. 115 Voltage 5. Moves up to 2950 cubic feet of air per minute. 6. Fully assembled and ready to install. 1. 0" SP - 2950 CFM 2. 1/8" SP - 2200 CFM 3. 1/4" SP - 1900 CFM
