24" Explosion Proof Low Pressure Fan - 5100 CFM - 1/4 HP - 115V/230V - C1 Group D & C2 Groups F & G
24" Explosion Proof Low Pressure Fan - 5100 CFM - 1/4 HP - 115V/230V - C1 Group D & C2 Groups F & G
| 24" Explosion Proof Low Pressure Fan - 5100 CFM - 1/4 HP - 115V/230V - C1 Group D & C2 Groups F & G | Ratings/Features: |
| Type: Low Pressure Industrial Fan | Listed for United States |
| Propeller Dimensions: 24" Diameter | Class I, Divisions 1 & 2, Group D |
| Propeller Material: Spark-Resistant Cast Aluminum | Class II, Divisions 1 & 2, Groups F & G |
| Weight: 75 lbs | T3B Temp Rating |
| Voltage: 115V/230V AC Single Phase | Spark-Resistant Propeller |
| Motor: 1/4 HP Fully Enclosed Explosion Proof | Up To 5100 CFM Air Movement |
| Rotations Per Minutes (RPM): 1140 | Rated for Hazardous Environments |
| Peak CFM (@ 0" SP): 5100 | Made in the USA |
| Max Sound Level @ 5`: 20.6 (sones), 71.90 (db) | |
| Max Decibles @ 5`: 80db | |
| Wiring: Hard-Wire | |
| Mounting: Permanent Mount (8 Holes) | Toll Free:Â 1-800-369-6671 |
| Â | Intl:Â 1-214-616-6180 |
| Â | Fax:Â 1-903-498-3364 |
| Â | E-mail:Â |
Made in the USA

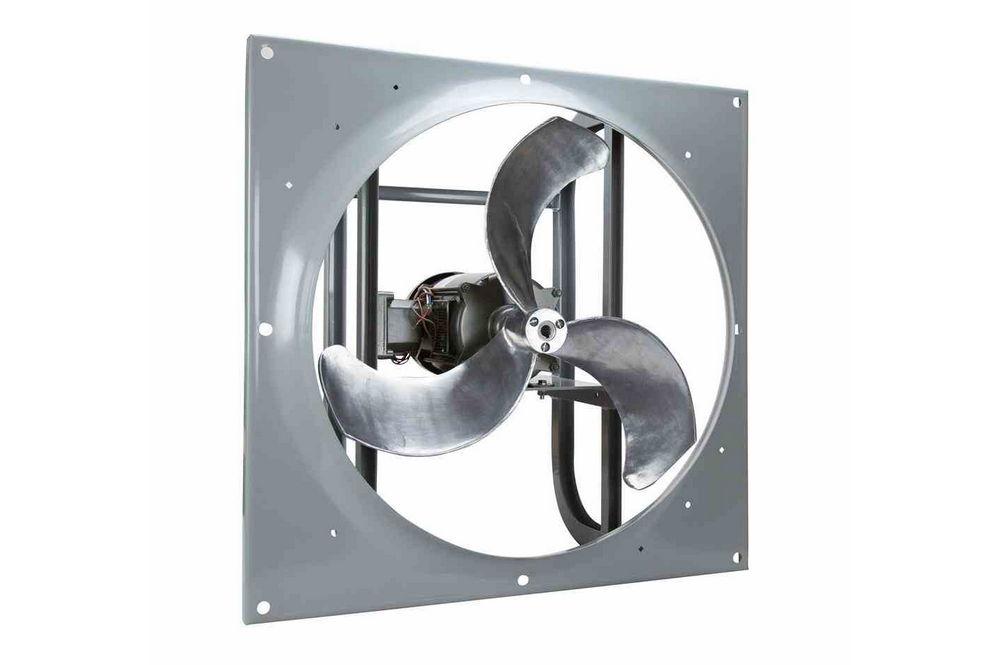

The EPF-LPSM-24-0.25HP from Larson Electronics is a low pressure explosion proof industrial fan that operates on 115V/230V AC voltages. This explosion proof industrial fan features a 24" diameter spark resistant cast aluminum blade that moves air at a rate of up to 5100 cubic feet per minute (CFM) for superior ventilation and air movement. The EPF-LPSM-24-0.25HP is powered by a fully enclosed and explosion proof 1/4 horsepower motor.
*PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS PRODUCT*
The EPF-LPSM-24-0.25HP explosion proof fan is rated for Class I Group D and Class II Groups F & G hazardous environments. The 24" diameter propeller on this explosion proof low pressure fan is constructed from cast aluminum to resist sparking further increasing the safety of the hazardous environment in which the fan is being utilized. This single phase explosion proof industrial fan has a 1/4 horsepower fully enclosed motor that can spin the propeller at a rate of 1140 RPM.
Voltage: The EPF-LPSM-24-0.25HP explosion proof ventilation fan can operate on 115V/230V AC voltages.
Wiring: The EPF-LPSM-24-0.25HP is a hard-wired ventilation fan that should be installed according to national, state and local electrical and mechanical codes.
Applications: Class I Group D and Class II Groups F & G hazardous areas that require ventilation including but not limited to the following: clean rooms, marijuana extraction rooms, laboratory hoods, oil refineries, grain mills, chemical plants, welding shops, chemical storage areas and battery changing areas.
|
