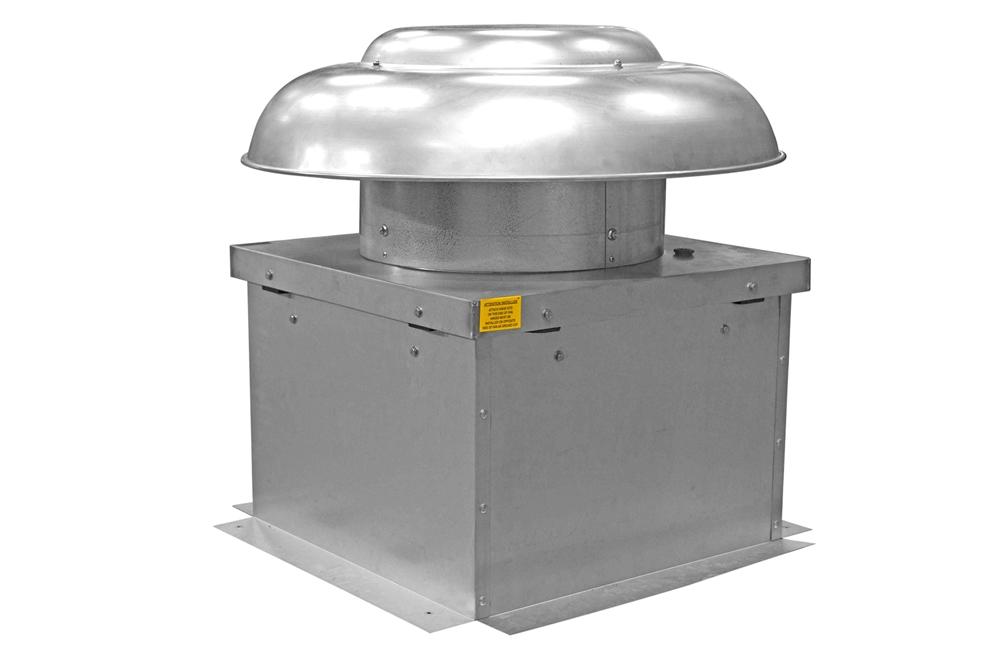

18" Explosion Proof Exhaust Fan - 3990 CFM - 1/2HP, Multi-tap 115/230V 1PH 60Hz - Roof Mounted

LARSON ELECTRONICSSKU: PL3-EPF-RME-18-0.5HP
filler

Precio:
Precio de venta$7,252.00

Descripción

Specifications / Additional Information
EPF-RME-18-0.5HP Explosion Proof Ventilation Fan Ratings/Features
Listing: United States Class I, Divisions 1 & 2 Group D
Type: Explosion Proof Roof Mounted Exhaust Fan Class II, Divisions 1 & 2 Groups F & G
Propeller Dimensions: 18" - Diameter Rated for Hazardous Environments
Weight: - Built-in Bird Screen
Voltage: Multi-tap - 115/230V AC, 60Hz
Phase: Single Phase
Motor: 1/2 HP Fully Enclosed Explosion Proof
Rotations Per Minutes (RPM): 1,750
Peak CFM (@ 0" SP): 3,990
Max Sound Levels @ 5`: 23 (sones), 73.21 (db) Toll Free: 1-800-369-6671
Materials: Non-Sparking Aluminum, Spun Aluminum Intl: 1-214-616-6180
Mounting: Roof/Ceiling Mount
Wiring: Hard-Wire
' Product Overview '
The EPF-RME-18-0.5HP from Larson Electronics is an Explosion Proof Exhaust Fan for use in flammable environments. Equipped with a built-in bird screen, this multi-tap unit operates on single-phase 115/230V AC 60Hz. The 1/2 horsepower (HP) explosion proof fan is constructed of non-sparking/spun aluminum and is compatible with roof/ceiling mounting applications. The EPF-RME-18-0.5HP explosion proof fan is rated for Class I, Group D and Class II, Groups F & G hazardous environments. This single-phase explosion proof ventilation fan has a 1/2 HP fully enclosed motor that can spin the propeller at a rate of 1,750 rotations per minute (RPM). Capable of achieving 3,990 cubic feet per minute (CFM), the explosion proof exhaust fan features a built-in bird screen. The explosion proof fan is constructed of non-sparking and spun aluminum, resulting in a lightweight unit. The 18" diameter propeller on this explosion proof high pressure ventilation fan resists sparking, further increasing the safety of the hazardous environment in which the fan is being utilized. Voltage: The EPF-RME-18-0.5HP is multi-tap capable and can operate on single-phase 115/230V AC 60Hz. Wiring: The explosion proof exhaust fan is a hard-wired unit that should be installed according to national, state and local electrical and mechanical codes. Mount: Operators may mount the fan on ceilings or roofings during installation. Applications: Class I, Group D and Class II, Groups F & G hazardous areas that require ventilation including but not limited to the following: clean rooms, marijuana extraction rooms, laboratory hoods, oil refineries, grain mills, chemical plants, welding shops, chemical storage areas and battery changing areas.
