Explosion Proof 12" Stainless Steel Hood Fan - C1D1/C2D1 - 1/3 HP - 1060 CFM - T3B Temp Rating

LARSON ELECTRONICSSKU: PL3-EPF-SCF-SS-12-0.33HP
filler

Precio:
Precio de venta$9,622.00

Descripción

Specifications / Additional Information
EPF-SCF-SS-12-0.33HP Explosion Proof Exhaust Vent Ratings
Unit Type: Explosion Proof Hood Vent Class I, Divisions 1&2, Groups C,D
Dimensions: 36" (Exhaust Vent), 12" (Hood Fan) Class II, Divisions 1&2, Groups E,F,G
Weight: - T3B Temperature Rating
Voltage: 115V/230V AC
Horsepower: 1/3 HP
CFM: 1060 CFM
Materials: 304 Stainless Steel (Shroud), Aluminum (Fan Blades) Toll Free: 1-800-369-6671
Finish: Epoxy Powder Coat (Fan Motor) Intl: 1-214-616-6180
Mount: Surface/Wall
Color: Metallic
' Product Overview '

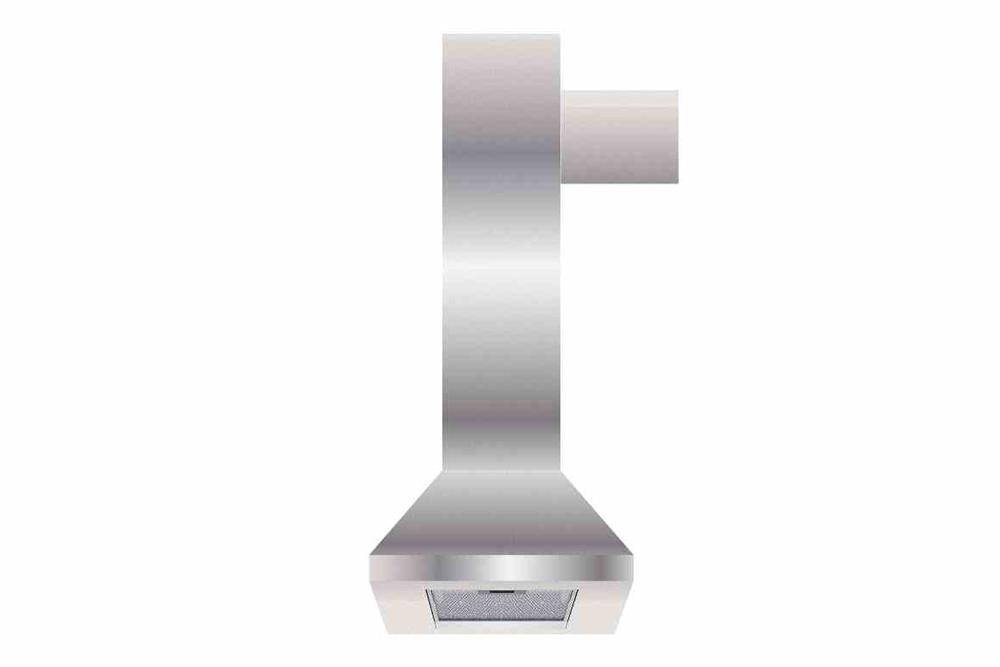

The Larson Electronics EPF-SCF-SS-12-0.33HP Explosion Proof 12" Stainless Steel Hood Fan is designed for Class I, Divisions 1 & 2 and Class II, Divisions 1 & 2 environments. The 1/3 HP hood vent is compatible with 115/230V and offers 1,060 CFM of airflow. Constructed of 304 stainless steel and aluminum, the fan motor is protected by an epoxy powder coating. The EPF-SCF-SS-12-0.33HP facilitates airflow in flammable work sites, such as labs and extraction rooms. This unit operates on 115/230V and provides 1,060 CFM of air movement during use. Equipped with a 1/3 HP centrifugal fan, the exhaust vent measures 36". The shroud is constructed of 304 stainless steel and the fan blades are made out of aluminum. For durability in rugged environments, the fan motor is finished with an epoxy powder coat. This explosion proof hood fan features a T3B temperature rating and is suitable for Class I, Divisions 1 & 2 and Class II, Divisions 1 & 2 rated facilities. Applications: Airflow management, hazardous locations, labs, extraction rooms, industrial kitchens, chemical processing and more.
