30" Electric Explosion Proof Fan on 4' Stand - 8723 CFM - 30" - Pedestal Mount - 200' Cord - C1D1
30" Electric Explosion Proof Fan on 4' Stand - 8723 CFM - 30" - Pedestal Mount - 200' Cord - C1D1
| EPF-SM-30-200-EPP Hazardous Location Fan | Ratings |
| Dimensions: 30"L x 30"W x 71.44"JH | Class I Division 1 Groups C & D |
| Weight: 72 lbs | Class II Division 2 Groups E, F, & G |
| Motor: 0.25 Horsepower | OSHA Compliant |
| Voltage: 115V or 208-230V | |
| Start-up Amps: 9.8A @ 115V, 4.9A @ 208-230V | |
| Fan Type: Circular Pedestal | |
| Ambient Temperature Rating: 10°C to 40°C | |
| Motor Insulation: Class B | |
| CFM Delivery: 10,670 | |
| Rotations Per Minute (RPM): 1,140 | Toll Free:Â 1-800-369-6671 |
| Noise Level: 75db @ 3ft | Intl:Â 1-214-616-6180 |
| Wiring: 200` 16/3 Cable with Explosion Proof Plug | Fax:Â 1-903-498-3364 |
| Cord Cap: 5-15P (115V), 5-20P (115V), 6-20P (208-230V) | E-mail:Â |
Made in Texas

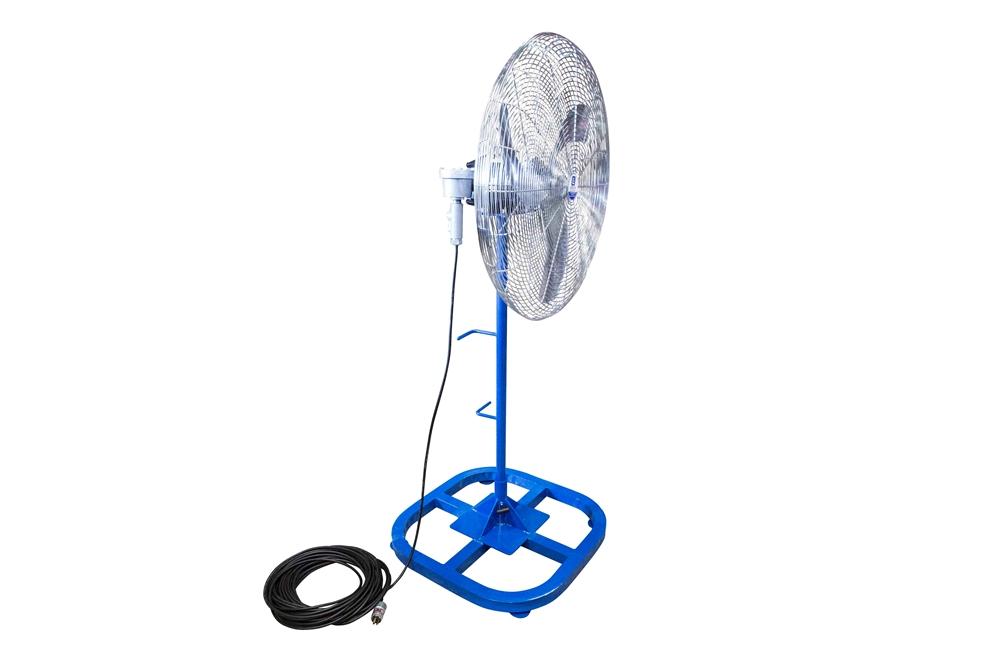

The Larson Electronics EPF-SM-30-200-EPP hazardous location fan is designed as a spot cooling fan for use in hazardous atmospheres. This Class I Division 1, Class II Division 1 fan is rated for use in atmospheres that include flammable or explosive vapors, gas, or dusts. The non-sparking aluminum fan blades offer increased safety in hazardous locations. The EPF-SM-30-200-EPP OSHA compliant 30" circulation fan delivers maximum airflow to a variety of hazardous work environments.
*PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS PRODUCT*
This hazardous location fan has a spark-proof design intended to minimize the chance for the fan to be the cause of an ignition or explosion in a hazardous environment. It is important to note that no fan can be completely explosion proof. However, the EPF-SM-30-200-EPP hazardous location fan has all the design elements that minimize that risk including non-sparking blades and a thermally protected, maintenance free 1/4 HP motor. The EPF-SM-30-200-EPP has an ambient temperature rating of 10° to 40°C.
This hazardous location pedestal fan has a 30" diameter and generates over 10,000 CFM of air output for efficient spot cooling. The EPF-SM-30-200-EPP fan is available in 115V operating at 9.8 amps or 208-230V operating at 4.9 amps. The powder coated steel fan guards offer corrosion resistance and a high degree of durability while the heavy duty galvanized steel pedestal stand offers a sturdy base. The explosion proof fan weighs 68 pounds, spins at 1,140 RPM and is equipped with 200` of 16/3 SOOW cable and explosion proof plug.
Cord Options: The Larson Electronics EPF-SM-30-200-EPP hazardous location fan is outfitted with 200` of 16/3 SOOW cable and an explosion proof plug. The 115V model is available with a 5-15 or 5-20 explosion proof plug while the 208-230V model has a 6-20 explosion proof plug.
|
|||||||||
