Explosion Proof Fusible Disconnect Switch - 30 Amp - C1D2 - 2-Pole - (2) 2" & (2) 0.5" Cast Hubs

LARSON ELECTRONICSSKU: PL3-EPFDS-30A-2P
filler

Precio:
Precio de venta$6,142.00
 Más opciones de pago

Descripción

Specifications / Additional Information
EPFDS-30A-3P Explosion Proof Disconnect Switch / Breaker Features/Ratings
Amps: 30 (Maximum) Class I Division 1 & 2 Groups C & D
Weight: 10.5 lbs Class I Zones 1 & 2 Groups llB & llA
Configuration: 2-Pole Class II Division 1 & 2 Groups E, F & G
Voltage: 600V AC or 125V DC maxim Class III
Fuses Included: No NEMA 7 (C, D) 9 (E, F, G)
Materials: Cast Aluminum
Hardware Materials: Stainless Steel
Mounting: Surface Mount
Hub Sizes: (2) 2" NPT [One north, one south side], (2) 0.5" NPT [One north, one south side] Toll Free: 1-800-369-6671
Hub Qty: 4 Intl: 1-214-616-6180
Hub Locations: Two on the north, two on the south side Fax: 1-903-498-3364
Conduit: Operator Provided
*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '

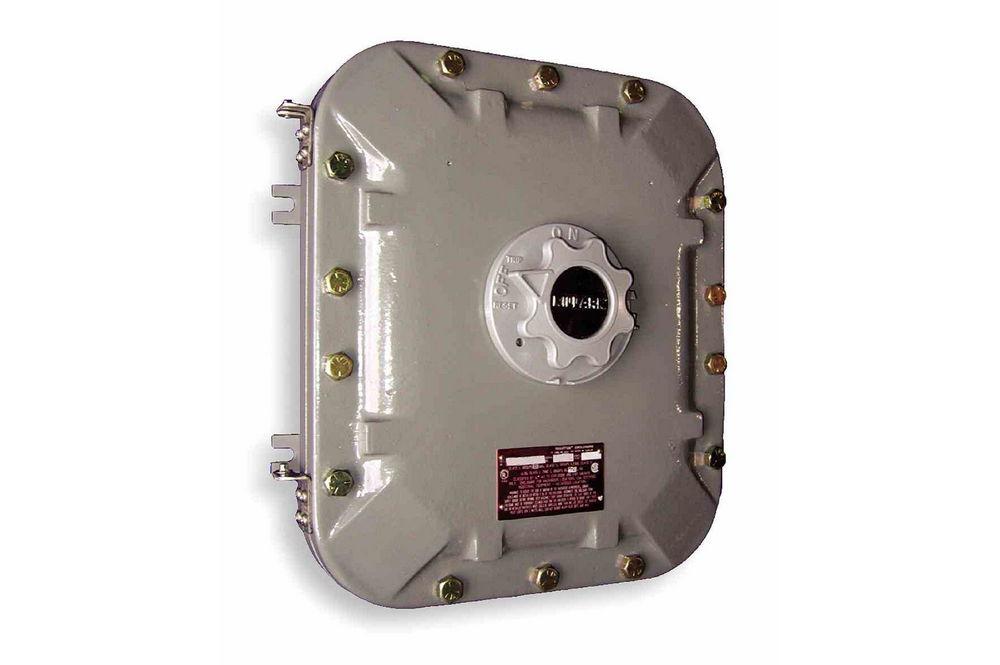

Made in the USA The Larson Electronics EPFDS-30A-3P explosion proof 30 amp fusible disconnect switch / breaker provides operators with a Class I and II, Division 1 and 2 cast aluminum enclosure that provides overcurrent and short circuit protection of service entrance, feeder or branch circuits, lighting, heating, appliance and motor circuits. This explosion proof disconnect switch and breaker features an EHD frame and has a 2-Pole configuration. The EPFDS-30A-3P operates on a maximum of 600V AC or 125V DC and features two cast 2" conduit hubs, one on the north side, one on the south side; and two cast 0.5" conduit hubs, one on the north side, one on the south side. The EPFDS-30A-3P is fusible at 30 amps with operator provided fuses. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The EPFDS-30A-3P explosion proof disconnect switch / breaker is made of cast aluminum and features a rectangular bolted cover design for uniform and attractive installations. The cover bolts are made from stainless steel. The external on/off lever can be locked into the "off" position with room for up to three padlocks for superior security. The internal circuit breaker handle mechanism is a sliding plate type mounted to the cover. The circuit breaker is trip free of the external handle mechanism. Applications: Petroleum refineries, chemical and petrochemical plants, storage areas, and other processing facilities where hazardous substances are handled or stored.
