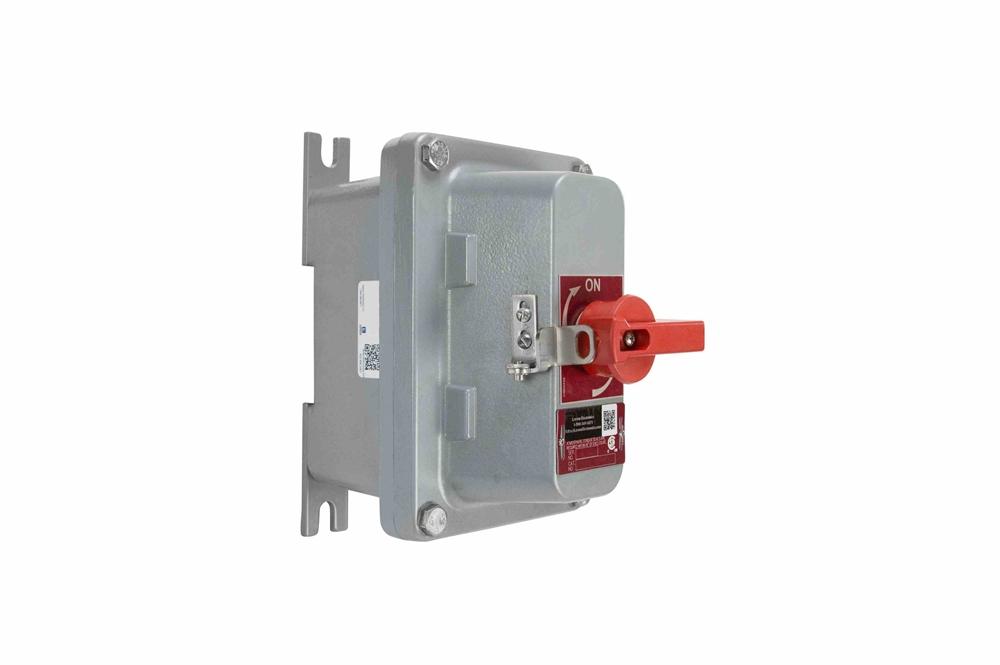

630A Explosion Proof Fused Disconnect Switch - C1D1/C2D1 -600V 3PH, (3) Time Delay Fuses - (3) Hubs

LARSON ELECTRONICSSKU: PL3-EPFDS-630A-3P-3X630A.600V-TD
filler

Precio:
Precio de venta$54,086.00

Descripción

Specifications / Additional Information
EPFDS-630A-3P-3X630A.600V-TD Explosion Proof Disconnect Switch Ratings
Listing: United States, Canada Class I, Division 1 & 2 Groups C, D
Dimensions: 23.88" W x 47.88" H x 14.25" D Class I, Zones 1 & 2 Groups llB & llA
Weight: 419 lbs Class II, Division 1 & 2 Groups E, F, G
Voltage: 600V AC (Maximum) Class III
Amps: 630A NEMA 3, 4, 4X, 7 (C, D), 9 (E, F, G)
Configuration: 3-Pole IP66
Fuses: Included
Fuses Type: Time Delay Fuse
Time Delay: 10 Seconds (Minimum) @ 500% Overload
Fuse Qty: (3) 630A 3P [600V]
Materials: Copper-free Aluminum
Hardware Materials: Stainless Steel
Mounting: Surface Mount
Hub Sizes: (2) 3" NPT (Top), (1) 0.5" NPT (Bottom) Toll Free: 1-800-369-6671
Hub Qty: 3 Intl: 1-214-616-6180
Hub Locations: (2) Top, (1) Bottom
Conduit: Operator Provided
*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '
Made in the USA The Larson Electronics EPFDS-630A-3P-3X630A.600V-TD Explosion Proof Fused Disconnect Switch is designed for use in Class I, II and III environments. Equipped with time-delay fuses, this 3-pole unit contains three, 630-amp 600V fuses and three, NPT hubs. The explosion proof disconnect offers delayed response to transient surges, making it ideal for addressing pulse currents and temporary overloads associated with motors, HVAC systems and HID lights in flammable work sites. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The EPFDS-630A-3P-3X630A.600V-TD is ideal for short circuit protection or may serve as a motor circuit disconnect in hazardous locations. Rated at three-phase 600V AC, this fused unit contains three, 630-amp 3-pole 600V time-delay fuses. The fuses feature 10-second time delay at 500% overload. These explosion proof disconnects are not sensitive to electrical pulses, allowing connected systems to utilize more power without activating the fuse. Time-delay fuses (also known as a short-blow fuse or a slow-blow fuse) can withstand electrical surges for a specific period of time, typically 10-15 seconds. This feature is useful for equipment that relies on high voltage current during startup, such as motors. Choosing between a time-delay fuse and a fast-acting fuse highly depends on the type of system or device requiring protection, as both protective methods are effective (one is not superior over the other). The explosion proof disconnect switch/breaker is constructed of cast aluminum and stainless steel cover bolts. The external on/off lever can be locked into the "on or "off" position with room for up to three padlocks for superior security. A gasketed flange with O-ring (in the side bolt circle) is available for protection from the ingress of moisture. Hubs: The 3-pole disconnect switch comes with two, 3" NPT hubs located at the top and one, 0.5" NPT hub at the bottom with a wire size compatibility of #2-600MCM. Mount: The EPFDS-630A-3P-3X630A.600V-TD is compatible with surface mounting applications. Applications: Petroleum refineries, chemical and petrochemical plants, storage areas, and other processing facilities where hazardous substances are handled or stored.
