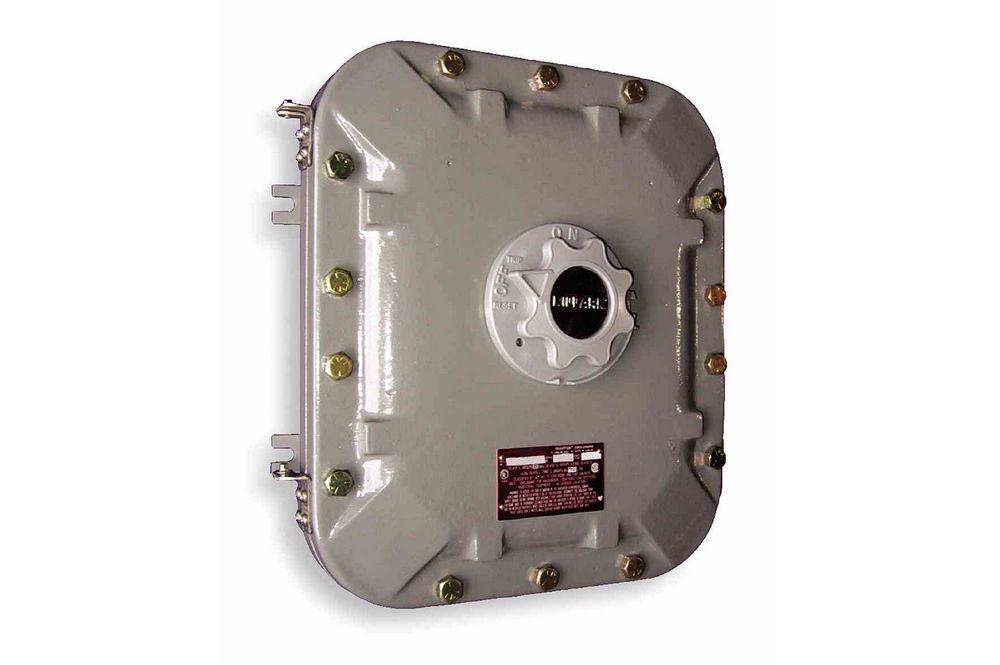

80A Explosion Proof Fused Disconnect - 600V Rated - Time Delay Fuse - (3) 80A Fuses (2) NPT Hubs

LARSON ELECTRONICSSKU: PL3-EPFDS-80A-3P-3X80A.600V-TD
filler

Precio:
Precio de venta$16,744.00

Descripción

Specifications / Additional Information
EPFDS-80A-3P-3X80A.600V-TD Explosion Proof Disconnect Switch/Breaker Features/Ratings
Unit Type: Explosion Proof Fused Disconnect Class I, Division 1&2 Groups B,C,D
Dimensions: 12" x 18" x 8" Class I, Zones 1&2 Groups llB+ H2,IIA
Weight: 130 lbs Class II Division 1&2 Groups E,F,G
Rated Voltage: 600V AC Class III
Configuration: 3-Pole NEMA 3,4,4X,7(B,C,D),9(E,F,G)
Amps: 80A (Maximum) CENELEC/ATEX/IEC Ex
Fuses: Included Ex d IIB + H2 T5 or T6
Fuse Type: Time Delay Fuse Ex tD A21 IP66
Time Delay: 10 Seconds (Minimum) @ 500% Overload
Fuse Qty: (3) 80A 3P [600V]
Materials: Copper-free Aluminum
Hardware Materials: Stainless Steel
Finish: Aluminum Lacquer Paint Finish
Mounting: Wall/Surface Mount Toll Free: 1-800-369-6671
Wire Size: #14-2/0 Intl: 1-214-616-6180
Hub Qty: 2
Hub Sizes/Locations: (1) 2" NPT @ Top, (1) 0.5" NPT @ Bottom
*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '
The Larson Electronics EPFDS-80A-3P-3X80A.600V-TD Explosion Proof Disconnect Switch is designed for use in Class I, II and III environments. Equipped with time-delay fuses, this 3-pole unit contains three 80-amp 600V fuses and two NPT hubs. The explosion proof disconnect offers delayed response to transient surges, making it ideal for addressing pulse currents and temporary overloads associated with motors, HVAC systems and HID lights in flammable work sites. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The EPFDS-80A-3P-3X80A.600V-TD ensures active protection of electrical systems in combustible facilities. Rated at 600V AC, this fused unit contains three 80-amp 3-pole 600V time-delay fuses. The fuses feature 10-second time delay at 500% overload. These explosion proof disconnects are not sensitive to electrical pulses, allowing connected systems to utilize more power without activating the fuse. Time-delay fuses (also known as a short-blow fuse or a slow-blow fuse) can withstand electrical surges for a specific period of time, typically 10-15 seconds. This feature is useful for equipment that relies on high voltage current during startup, such as motors. Choosing between a time-delay fuse and a fast-acting fuse highly depends on the type of system or device requiring protection, as both protective methods are effective (one is not superior over the other). Operators are provided access to a copper-free aluminum handle, which can be padlocked in the ON or OFF position. The ATEX-rated explosion proof disconnect is constructed of copper-free aluminum, with stainless steel hardware. For durability, the unit is finished in aluminum lacquer paint and features a NEMA-rated enclosure. Hubs: For completing electrical connections, two NPT hubs are provided on the enclosure. One 2" NPT hub at the top; and one 0.5" NPT hub at the bottom are available during installation. Mounting: Operators can mount the explosion proof disconnect on walls or flat surfaces. Applications: Motors, VFDs, phase converters, HVAC systems, dryers, fluorescent lights, HID lights, metal halide, high pressure sodium, mercury vapor, petroleum refineries, chemical and petrochemical plants, storage areas, and other processing facilities where hazardous substances are handled or stored.
