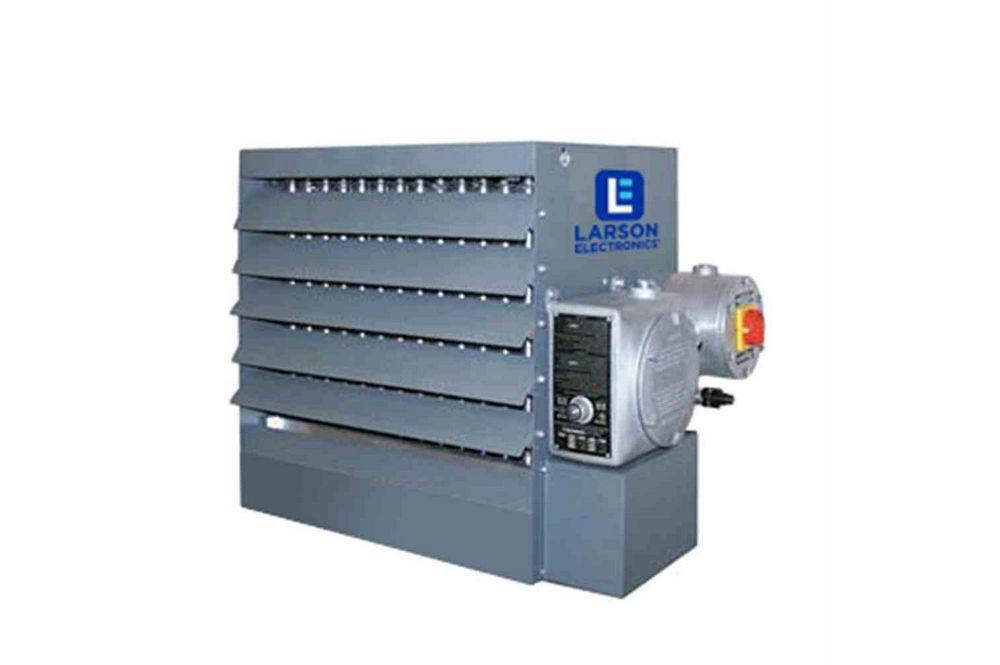

3000W Explosion Proof Heater - Forced Fan Heater - C1D1, C2D1 - 208V 1PH - 580 CFM - Pole Mount

LARSON ELECTRONICSSKU: PL3-EPH-FH-PM-T3B-3KW-208V.1P
filler

Precio:
Precio de venta$29,500.00

Descripción

Specifications / Additional Information
EPH-FH-PM-T3B-3KW-208V.1P Hazardous Location Fan Ratings/Features
Unit Type: Hazardous Location Forced Fan Type Heater Class I, Div 1 & 2 Groups C, D
Dimensions: 22.5" x 17.75" x 21" (Fan w/o Pole Mount) Class II, Div 1 & 2 Groups E, F, G
Weight: 204 lbs 6,000 Cycles of Service
Motor Voltage: 208V AC Pole Mount
Control Voltage: 24V
Phase: 1PH
Watts: 3,000W
BTUs: 10,250
Amps: 16.3
CFM: 580
Air Throw: 24`
Temperature Rating/Rise: T3A/16.5°F
Materials: Aluminum, Stainless Steel
Finish: Powder Coated Epoxy Paint Finish
Mount: Pole Mount (3.5" Schedule 40 Pipe Not Included)
Recommended Mounting Height: 8`
Color: Gray
' Product Overview '
The Larson Electronics EPH-FH-PM-T3B-3KW-208V.1P Hazardous Location Fan provides active heating in hazardous locations and cold-temperature work sites. This 3,000-watt forced fan heater is compatible with 208V single phase and features an airflow rate of 580 CFM (24` air throw). Operators can mount the hazardous location fan on poles (3.5" Schedule 40 pipe required/not included). The EPH-FH-PM-T3B-3KW-208V.1P is suitable for maintaining adequate temperatures in Class I, Divisions 1 & 2 and Class II, Divisions 1 & 2 work sites. This 3,000-watt fan forced heater operates on 208V single phase with 24V control voltage. The 16.3-amp rated unit supports an airflow rate of 580 CFM, capable of throwing air as far as 24 feet. This T3A temperature-rated fan features guard shields to protect internal, moving parts. This hazardous location fan forced heater is constructed of 14 gauge steel and aluminum with stainless steel/aluminum pressure relief valves. The unit is rated for 6,000 cycles of service. Versatile louvers allow operators to control the direction of air leaving the fan in real-time. For protection from freeze damage (up to -45° C), the unit utilizes a Ethylene Glycol to water mixture as a heat transfer fluid inside the heater core. Mounting: The EPH-FH-PM-T3B-3KW-208V.1P is designed for pole mount configurations. The mounting component measures 7" x 25" x 6.5" and weighs 37 lbs. To complete the mounting installation, a customer-provided 3.5" Schedule 40 pipe is required (not included). To mount the unit, operators must secure the fan to the pole using the attachment assembly. The mounting arm component connects the attachment assembly to the pole, which is secured to the base assembly. The recommended mounting height for this hazardous location unit is 8 feet. Applications: Heating, manufacturing plants, chemical processing, cold-temperature facilities, farming operations, agricultural sites, flour processing, grain silos and more.
