Specifications / Additional Information
EPH-VH-225K-160F-208V.3P Explosion Proof Hydronics Heater | Ratings/Features |
Listing: NRTL Listed for United States | Class I, Divisions 1 & 2, Group D |
Dimensions: 17 5/8" x 37 1/2" x 37 1/2" | Class II, Divisions 1 & 2, Groups F & G |
Fan Propeller Dimensions: 24" | No Fan Guard |
Weight: - | 28' Recommended Mounting Height |
Voltage: 200V AC, 50 Hz | Â |
Phase: 3-phase | Â |
Watts: - | Â |
Motor: 1/4 HP, Fully Enclosed Explosion Proof | Â |
RPM: - | Â |
CFM: 6,140 CFM | Â |
Max Sound Level @ 5' (Fan): - | |
Air Flow Direction: Vertical | |
Heating Method: Steam, Water | |
Output @ 2 PSI Steam: 386,000 BtuH | |
Output @ 160°F Water: 224,640 BTU | |
Coil Type: Rectangular | |
Flow Rate: 28.94 GPM | |
Heating Capacity: 386,000 BtuH | |
Heating Element Diameter: 5/8" | |
Maximum Operating Pressure: 75 PSI | |
FLA: 1.92 | |
Maximum Operating Water Temperature: 320°F | |
Materials: Non-sparking, Metal | Special Orders - Requirements |
Number of Louvers: - | |
Mount: Ceiling | |
Hub Size: 2" | |
Hub Type: Threaded Male | |
Color: Gray |
function MM_openBrWindow(theURL,winName,features) { //v2.0
window.open(theURL,winName,features);
}

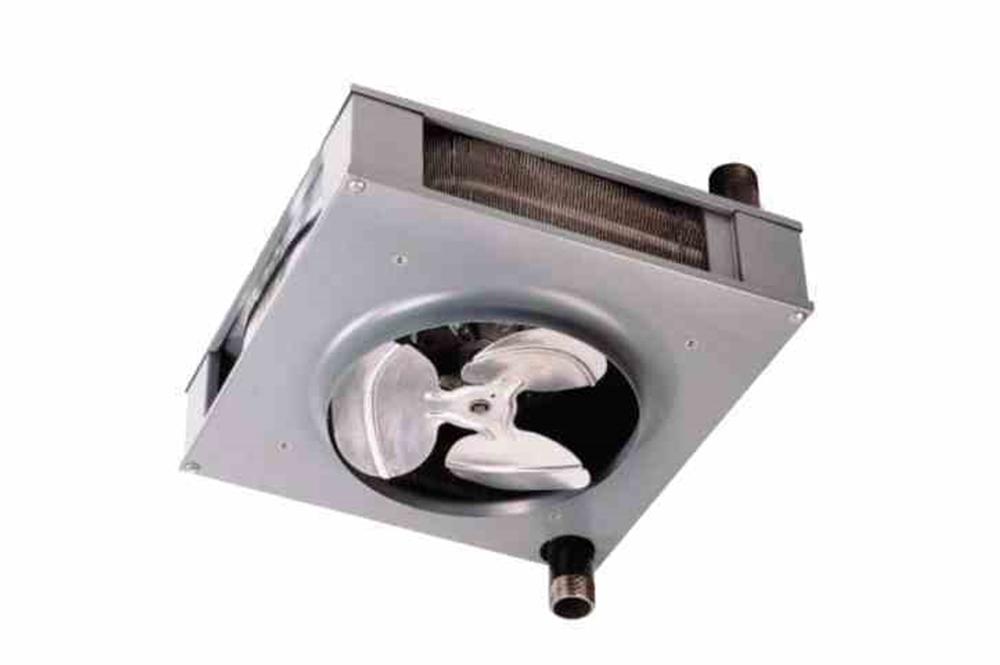

The EPH-VH-225K-160F-208V.3P from Larson Electronics is an Explosion Proof Hydronic Heater that is a durable heating solution for Class I Divisions 1 & 2 Group D and Class II Divisions 1 & 2 Groups F & G hazardous environments and cold-temperature work sites. This heater is compatible with three-phase 208 V AC, 60 Hz and features a fan air flow rate of 6,140 CFM. Designed with vertical air flow, the hydronic heater can be mounted on ceilings during installation (recommended mounting height is 28'). The EPH-VH-225K-160F-208V.3P actively heats facilities and C1D1&2 and C2D1&2 rated indoor sites. Powered by a 1/4 HP fully enclosed explosion proof fan, the heater features a rectangular coil and has a 386,000 BtuH heating capacity with a flow rate of 28.94 GPM. This 6,140 CFM unit offers vertical air flow and does not contain a fan guard. The hydronics heater has a maximum operating pressure of 75 PSI and a maximum operating water temperature of 320°F. The industrial unit is made out of non-sparking and metallic materials. The 6,140 CFM fan is equipped with a 24" non-sparking propeller. Designed for combustible sites, this heater utilizes steam and water to generate heat. Hot water is used to control the temperature for efficient heating. Voltage: This explosion proof hydronics heater operates on three-phase 208 V AC, 60 Hz power. Hubs: The EPH-VH-225K-160F-208V.3P contains a 2" threaded, male hub. Mounting: The flameproof heater is compatible with ceiling mount installations. For best results, the unit should be mounted at a height of 28 feet. Applications: Heating, manufacturing plants, chemical processing, cold-temperature facilities, farming operations, agricultural sites, flour processing, grain silos and more. |
