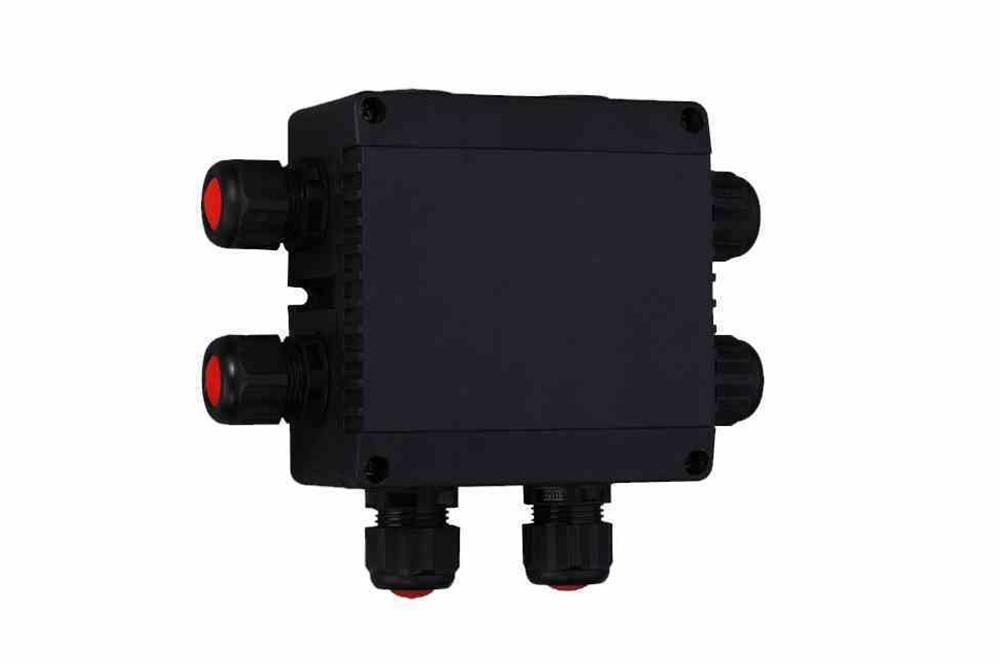

Explosion Proof Non-metallic Terminal Box - (10) Terminal Contacts - (8) M25 Hubs - ATEX/IECEx
Explosion Proof Non-metallic Terminal Box - (10) Terminal Contacts - (8) M25 Hubs - ATEX/IECEx
| EPJ-AE.EX-FG-EE-TB-200.200MM-8XM25-M1 Flameproof Terminal Box | Ratings |
| Listing: NRTL to IEC Ex/ATEX Standards | Zone 0, Zone 1 and Zone 2 |
| Dimensions: 7.87" x 7.87" x 3.93" (200mm x 200mm x 100mm) | Zone 20, Zone 21, and Zone 22 |
| Weight: - | IEC Ex - Ex e Ⅱ T6 Gb Ex tD A21 T80℃ |
| Voltage Rating: 690V AC (Maximum) | ATEX - Ex II 2GD Ex e II T6 Gb Ex tD A20 T80℃ |
| Current Rating: 35A (Maximum) | IEC 60079, EN 60079 |
| Terminal Contact Type: NS35 Din Rail Mount | IP66 Weatherproof |
| Terminal Contacts: (4) 6mm2 for 10 AWG, (6) 4mm2 for 12AWG | Â |
| Operating Temp: -40°C < Ta < 55°C |  |
| Materials: Non-metallic, Static Resistant Alloy Plastic | Â |
| Earth (Ground): (1) 6mm2 Earth Ground Lug, Brass | |
| Cable Glands: Not Included | |
| Mounting: Surface or Conduit | |
| Terminal Type: Pole, Spiral | |
| Hubs: (8) M25 | |
| Color: Black |
| The Larson Electronics EPJ-AE.EX-FG-EE-TB-200.200MM-8XM25-M1 Explosion Proof Non-metallic Terminal Box offers reliable connection for wiring and electrical components inside ATEX/IECEX rated environments. This explosion proof accessory is made out of non-metallic, static resistant alloy plastic. Operators may access ten terminal blocks and eight M25 hubs. Cable glands are not included and must be purchased separately. The EPJ-AE.EX-FG-EE-TB-200.200MM-8XM25-M1 is a sturdy terminal box with flameproof features. This non-metallic unit measures 7.87" x 7.87" x 3.93" and contains NS35 din rail mount terminal contacts. The explosion proof device is rated at 690V AC maximum and 35 amps maximum. Operators may access the following terminal contacts: (4) 6mm2 for 10 AWG and (6) 4mm2 for 12 AWG. One, 6mm2 earth grounding lug is also available with the unit. This ATEX/IECEX rated explosion proof accessory is constructed of non-metallic, static resistant alloy plastic. The IP66-rated unit is suitable for use in Zone 0, Zone 1, Zone 2, Zone 20, Zone 21 and Zone 22 rated combustible sites. Designed for rugged environments and flammable locations that experience fluctuating temperatures, the compact unit operates within a range of -40°C to 55°C. Hubs: This flameproof terminal box contains eight M25 hubs (cable glands not included and must be purchased separately). The unit features a brass earth ground terminal. Mounting: The EPJ-AE.EX-FG-EE-TB-200.200MM-8XM25-M1 is compatible with surface or conduit mount configurations. Applications: Petroleum refineries, chemical and petrochemical plants, paint spray booths, food manufacturing buildings, agricultural operations, grain storage centers, harsh environments, rugged work sites, marine locations, wet locations and more. |
