Explosion Proof Thermocouple Head - C1D1/C2D1 - Copper-Free Aluminum - ATEX/IECEx - N4X/IP66 - 3 Connection 10-Amp Terminal Block
Explosion Proof Thermocouple Head - C1D1/C2D1 - Copper-Free Aluminum - ATEX/IECEx - N4X/IP66 - 3 Connection 10-Amp Terminal Block
| EPJ-TC-L-V1-TB3 Explosion Proof Thermocouple Head | Ratings |
| Listing: United States, Canada, European Union, Asia | Class I, Division 1 Groups B,C,D |
| Dimensions: 3.91" OD | Class II, Division 1 Groups E,F,G |
| Weight: 1.1 lb | ATEX/IECEX Rated |
| Voltage: - | ATEX II 2GD |
| Phase: - | Ex d IIC Gb Ta = -40°C to 85°C |
| Provision Nameplate: Included | Ex tb IIIC Db IP68 |
| Operating Temperature Range: -40°C to 85°C | NEMA 4X, IP66/IP68 |
| Terminal Block: 3 Connection Terminal Block Rated for 10 Amps | Â |
| Materials: Copper-Free Die-cast Aluminum Housing, Epoxy Coated O-ring | Â |
| Ball Chain/Nameplate: Stainless Steel | Special Orders - Requirements |
| Mount: - | |
| Accommodation: Terminal Block or Head-mounted Transmitter | Toll Free:Â 1-800-369-6671 |
| Hub Qty: (2) Threaded | Intl:Â 1-214-616-6180 |
| Hub Size Options: 1/2" NPT or 3/4" NPT | |
| Color: Blue |

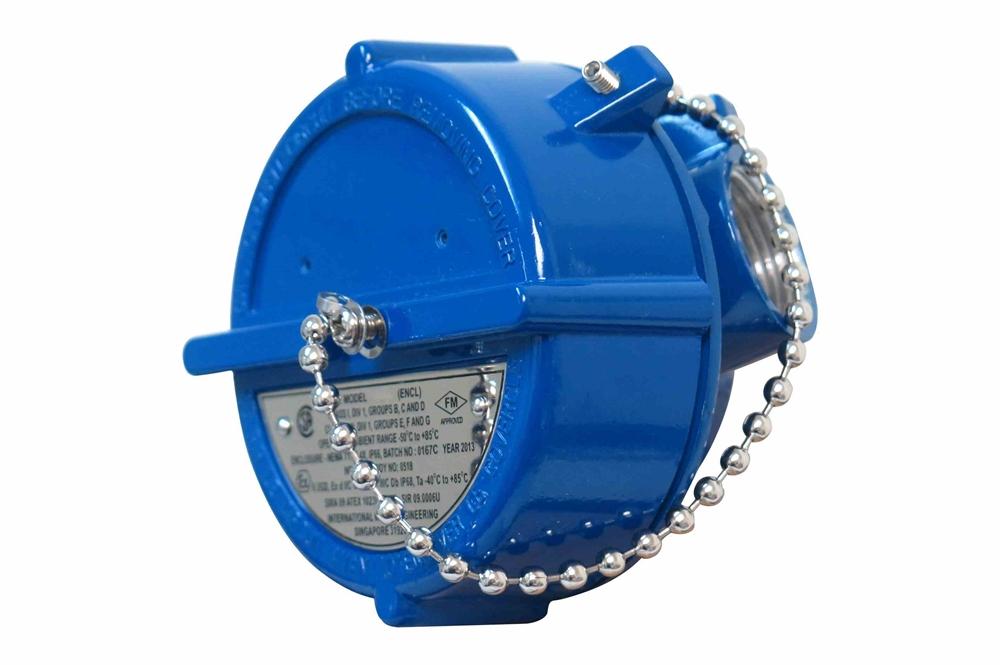

| The EPJ-TC-L-V1-TB3 from Larson Electronics is an Explosion Proof Thermo Coupler that protects and provides access to electrical connections/devices in flammable work environments. Designed for Class I, Division 1 and Class II, Division 1 rated sites, the compact NEMA 4X device features copper-free die-cast aluminum construction and comes with a stainless steel provision nameplate and a 3 connection terminal block that is raated for 10-amps. The EPJ-TC-L-V1-TB3 offers electrical protection and access to sensitive equipment and/or connections in Class I, Division 1 and Class II, Division 1 combustible facilities. This explosion proof unit comes with a provision nameplate and ball chain for added safety. The thermocouple head is made of copper-free die-cast aluminum with an epoxy-coated O-ring and stainless steel nameplate/ball chain. A NEMA 4X rating provides protection against ingress of water, dust/debris, corrosion and external formation of ice. This IP66/IP68 explosion proof accessory can be used in ATEX/IECEX rated sites. Hubs: This explosion proof device accommodates a terminal block or head-mounted transmitter. Equipped with two threaded hubs for input and output connections, the unit is offered in 1/2" NPT or 3/4" NPT. |
