Explosion Proof Hand Lamp - Class I, II - 100/75/60 Watt - 120V AC - 200' 12/3 SOOW Cord

LARSON ELECTRONICSSKU: PL3-EPL-120-200
filler

Precio:
Precio de venta$1,624.00

Descripción

Specifications / Additional Information
EPL-120-200 Explosion Proof Hand Lamp Approvals / Ratings
Listing: NRTL Listed for United States & Canada Class I, Division 1 & 2, Groups C, D (100 watt)
Lamp Type: Incandescent Class II, Division 1 & 2, Groups F, G (60 or 75 watt)
Dimensions: 16.5"L x 5"Dia Class I, Zone 1, Group IIB
Lamp Weight: 5 lbs NRTL Listed to UL 844
Voltage: 120V AC, 50/60 Hz NRTL Listed to CSA 22.2 No. 137
Total Watts: 100W, 75W or 60W T3C Temperature Rated
Total Lumens: 1,000 (100W), 750 (75W), or 600 (60W)
Luminous Efficacy: 10 Lm/W
Lamp Life: 4,000 Hours
Beam Angle: Omni-directional
Ambient Operating Temp: -20° to +50°C
Housing Material: Aluminum & Plastic
Mounting: Handheld w/ Swivel Hook
Lens Material: Tempered Glass
Wiring: 200` 12/3 SOOW Cable Int'l: 1-214-616-6180
Cord Cap: 5-15 Straight, 5-20 Straight, L5-15 Twist, L5-20 Twist, Pigtail
E-mail:
' Product Overview '

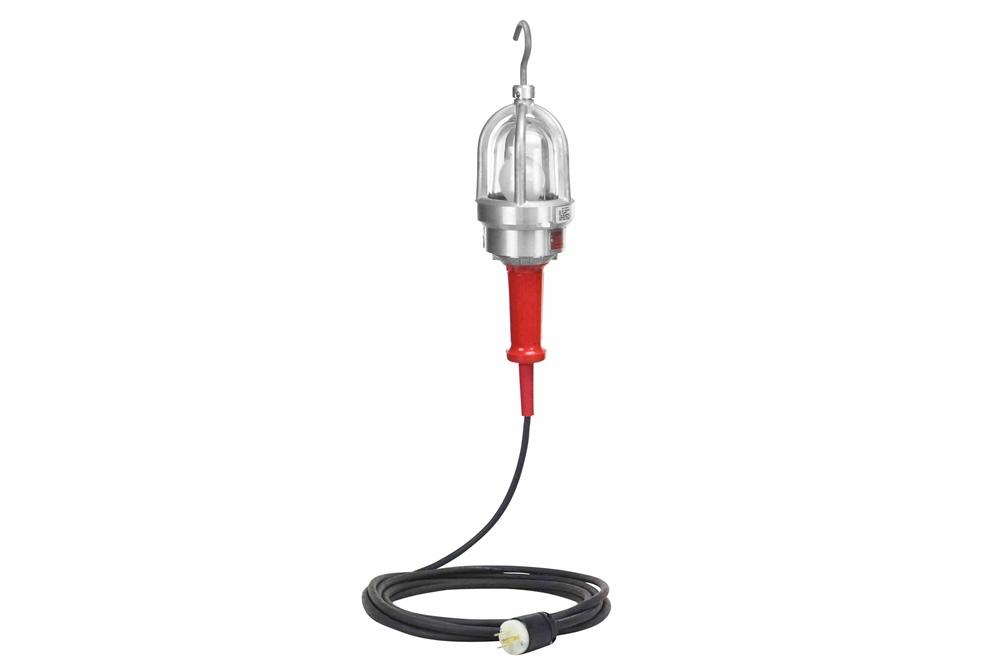

The Larson Electronics EPL-120-200  Explosion Proof Hand Lamp is ideal for work activities in hazardous locations requiring explosion proof protection. Designed to operate on 120V AC, the incandescent light provides 1,000 lumens of output with a 100-watt bulb. This T3C-rated unit comes with 200' of 12/3 SOOW cord and a general-area cord cap. This explosion proof work light from Larson Electronics comes complete with 200 feet of explosion proof cord. The EPL-120-200 drop light housing is constructed of aluminum with a rubber bumper guard designed to provide an effective lighting solution for operators requiring a versatile source of illumination. This hazardous location hand lamp is Class I, Division 1 approved when equipped with a 100 watt bulb and Class II, Division 1 approved when equipped with a 60 or 75 watt bulb. This explosion proof drop light is ideal for hazardous work areas where a ready source of easily managed lighting is desired.
Dark 40` Container Illuminated with EPL-120-100
Click Photos to Enlarge Click Photos to Enlarge
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated Flying Leads / Pigtail Wires
Wiring and Plug: This drop light is equipped with 200 feet of 12/3 chemical and abrasion resistant SOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground and NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug. Note: The cord cap on this unit is not class rated and must be plugged outside of the classified hazardous location. Larson Electronics can equip this light with an explosion proof cord cap for complete class rated protection at an additional fee. This explosion proof hand light operates on standard 120 Volts. This unit is available with either a 100 watt bulb for Class I, Division 1 operation (Gases Vapors) or a 60 or 75 watt bulb for Class II, Division 1 operations (Dusts). Choose your bulb type below when ordering. Applications: Applicable hazardous locations, oil and gas facilities, mining, construction sites, chemical processing, grain storage, confined spaces, inspections, detailed tasks and more.
