PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1(647) 254-9757 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.
Made in the USA

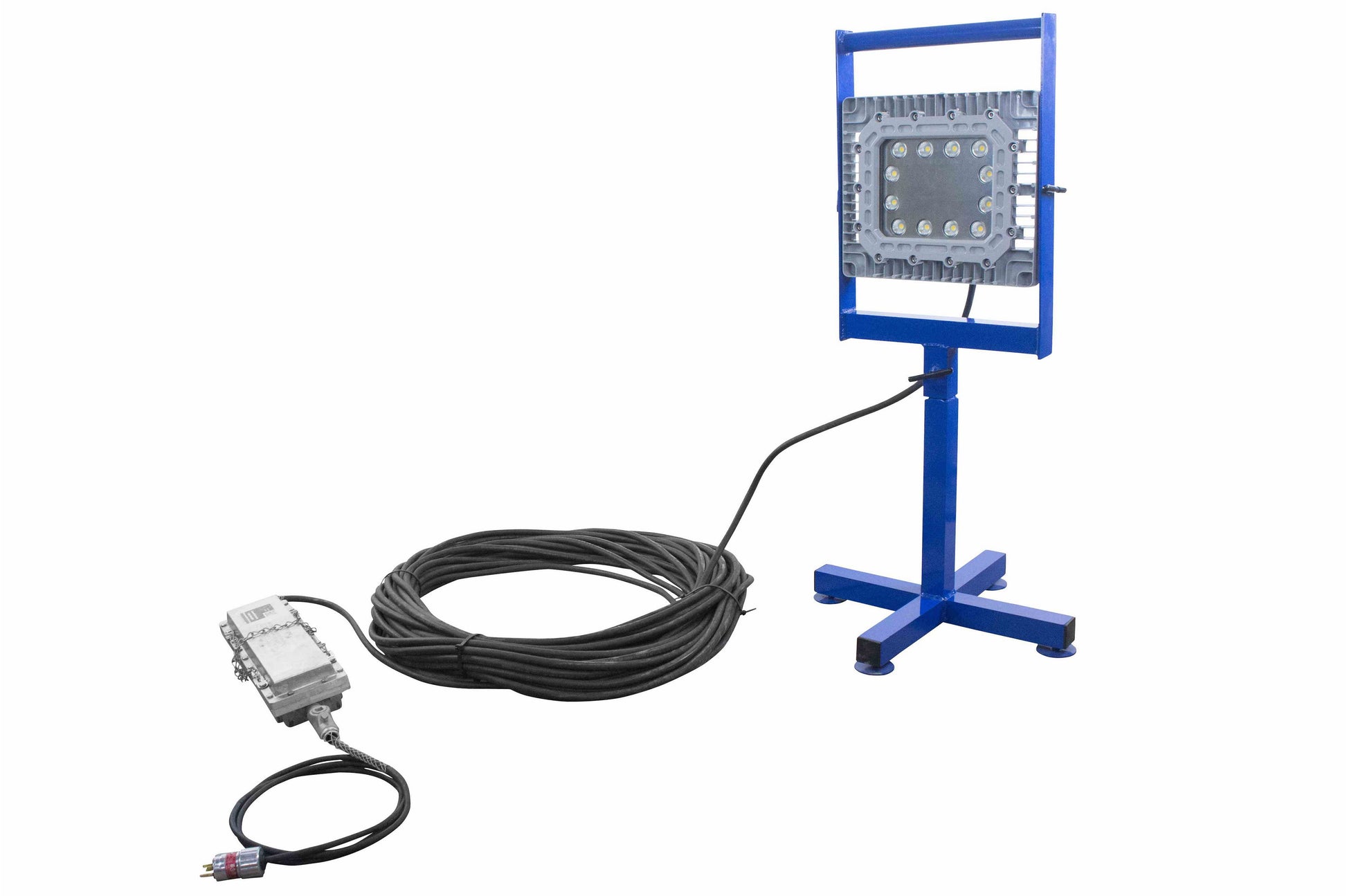

The EPL-16BS-1X150LED-140DB-X24I-C1D1-200 Explosion Proof LED Light from Larson Electronics is rated Class 1 Division 1-2 Groups C & D and Class 2 Division 1-2 and uses a 22 inch Cree LED light head to produce 21,000Â lumens of light while drawing only 150 watts. This portable light fixture operates on 120-277V AC 50/60 Hz stepped down to 24V DC via an inline encapsulated C1D1 transformer.
The EPL-16BS-1X150LED-140DB-X24I-C1D1-200 explosion proof LED light with stepdown encapsulated C1D1 transformer provides 10,000 square feet of work area coverage with 21,000 lumens of light output. This portable LED light is mounted to a four leg aluminum base and has an LED light head measuring 22 inches wide by 14 inches tall. The LED light head on this unit produces a brilliant flood pattern of light that is ideal for illuminating enclosed areas and hazardous locations where flammable vapors, gases and dusts may be present. Often referred to as simply a “tank light,†this unit is considered universal due to its ability to be passed through any conventional manhole such as those found in petrochemical containers and ship storage tanks.
The LED light head produces a brilliant flood pattern of light that is ideal for illuminating enclosed areas and further adds to this units desirability as a portable tank lighting solution. This explosion proof LED light fixture is comprised of a 22 inch LED light head mounted atop a base stand fabricated from non sparking aluminum. Transferring the unit through manholes consists of simply removing the light head from the base, passing the light head and base through the manhole separately, and then reassembling the unit once inside. The lamp can be easily adjusted up or down 90 degrees and locked into position by simply loosening the two hand screws located on either side of the light head and re-tightening them once the desired angle is found. Included with this LED light is 200 feet of SOOW cord, which combined with the 360° of rotation and 90° of tilt offered by the LED light head provides an effective alternative to often cumbersome explosion proof string lights.
The explosion proof LED light head in this unit features multiple LED drivers which helps to increase the operational life of the fixture.
With traditional LED lights, in the event an LED array or driver fails, the entire fixture no longer illuminates.
This new series of LED lamps contains
twelve individual LED boards configured in a series of banks. Each bank contains two LED boards with an individual driver. In the event of a driver failure, only one bank of LEDs will be effected while the other banks will continue to operate. In the event that of an LED failure, the mating LED will continue to operate.
60° Beam Angle
125° Beam Angle Plug
140° Beam Angle Plug
Beam Angles:
When used as a portable lighting solution, the varying beam angles are each individually ideal for several environments. The 60° beam provides the most intense beam of the three options. It is perfect for narrow, confined spaces and is ideally suited for tank cleaning purposes. It offers focused light to provide ample illumination to tight work spaces and other environments. The 125° beam offers a more diffused source of light that is also less intense in brightness. It is a great general area work light and performs well when used for outdoor illumination. The 140° beam offers a very wide lighting pattern and is ideal for situations where lighting distance is not a concern, but illumination of a wider area and even light distribution is. The 140° beam is great for situations that call for working in close proximity to lights such as in a paint booth.
Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting.
Voltage:
The step-down transformer installed in-line provide the ability to automatically monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. These light towers can operate on current ranging from 90 to 305V AC or 127 to 431V DC without any modifications necessary as a result. This ability to sense and adjust input current also provides protection against voltage spikes and drops that can occur in electrical systems which would otherwise result in burning up or premature LED failure without it.
5-15 Straight Blade Plug
5-20 Straight Blade Plug
6-20 Straight Blade Plug
Wiring:
This unit is equipped with 200 feet of 600V 12/3 chemical and abrasion resistant SOOW cable leading to an encapsulated, Class 1 Division 1 explosion proof step down transformer. There is ten feet of 16/3 SOOW cable coming out of the inline transformer, and is terminated in a explosion proof cord cap. Both the line-in and line-out cables of the transformer are terminated via EYM seal offs with Kellum style cord grips to prevent the cable from being pulled out while in the field. The transformer enclosure features a chain carry handle for easy mobility. This inline power supply for this explosion proof drop light is an auto sensing universal voltage transformer that operates on any voltage within the 100-277 volts AC 50/60Hz range. This unit allows operators to power the LED light from any 120V, 220V, or 240V AC power source, and steps down AC voltage to 24V DC.
Plug:
Plug options include a 5-15 15 amp straight blade plug for use with 120V explosion proof outlets, a 5-20 20 amp straight blade plug for use with 120V explosion proof outlets, or a 6-20 20 amp straight blade plug for use with 220-240V explosion proof outlets.
**PLEASE NOTE** voltage ratings on plugs and outlets are MAXIMUM voltage.
Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug.
Energy Consumption Comparison
Metal Halide
LED
Wattage
400 watts
150 watts
Amp Draw @ 120V AC
3
.83 amps
1.25 amps
Amp Draw @ 220V AC
2.09 amps
0.68 amps
Amp Draw @ 240V AC
1.92 amps
0.63 amps
Amp Draw @ 277V AC
1.66 amps
0.54 amps
Amp Draw @ 12V DC
38.33
amps
12.5 amps
Amp Draw @ 24V DC
19.12 amps
6.25
amps
Lamp Life Expectancy
20,000 hours
50,000+ hours
Operation cost per year
$241.78
$78.84
Each LED light fixture has the potential to save $150.00+ per year in electricity alone, not including maintainer costs, operational downtime, reduced productivity, HVAC loads, or carbon footprint. When retrofitting an entire facility with 100s of light fixtures, the return on investment of LED over metal halide becomes evident.
Further adding to the versatility and convenience of this explosion proof LED light are 25 peel off mylar overspray lamp protectors that ship with the unit. The protectors provide lamp protection from dirt or debris and can be removed, cleaned and replaced, lessening the need for tedious lamp cleaning or replacements. his explosion proof LED light fixture is IP67 rated, dust-proof, and protected against high pressure jets and temporary submersion. The cast aluminum body and LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LEDs and electronics. This lamp is T5 temperature rated and the LED light head retains 80% of its lumen output after 60,000 hours of use, far longer than incandescent or fluorescent lamps.
Made in USA Quality
Superior LED Benefits
1. Approved Class 1 Div1-2 Class2 Div I-2
1. 60,000+ hour lifespan.
Specifications
Listing: United States - Canada
Lamp Type: Cree LED
Dimensions: 46.61"-H x 23"-W x 23"-D
Weight: 45 lbs
Voltage: 90-305 Volts AC 50/60 Hz or 127- 431V DC stepped down to 24V DC
Total Watts: 150W
Total Lumens: 21,000
Luminous Efficiency: 140 Lm/W
Lamp Life: 60,000+ Hours
Color Temp: 5600K, 5000K, 4500K, 4000K, 3500K, 3000K, 2700K, or 6500K
Color Rendering Index: >75 CRI
Beam Angle: 60°, 125°, or 140°
Lighting Configuration: Flood Pattern
Power Efficiency: >95%
Power Factor: 0.992
Ambient Operating Temp Range: -50° C to +65°C
Operating Temp Rating: T5
Lamp Housing Material: Copper Free Cast Aluminum
Lens Material: Hardened Borosilicate Glass
Gasket Material: Silicone
Base Stand Material: Non-Sparking Aluminum
Base Stand Finish: Powder Coated - Blue
Mounting: Portable Base Stand w/ Handle and Feet
Wiring: 200` 14/3 SOOW, 200` 12/3 SOOW, seal-off w/ Kellum strain relief, inline transformer, seal-off w/ Kellum strain relief, 10` 16/3 SOOW EXP Cord Cap
Beam Lux: 8500@ 1 Meter 1250@ 3 Meters
Wiring: 200` 14/3 SOOW, 200` 12/3 SOOW, seal-off w/ Kellum strain relief, inline transformer, seal-off w/ Kellum strain relief, 10` 16/3 SOOW EXP Cord Cap
Cord Cap: 5-15, 5-20, 6-20 - Explosion Proof
Made in the USA
The EPL-16BS-1X150LED-140DB-X24I-C1D1-200 Explosion Proof LED Light from Larson Electronics is rated Class 1 Division 1-2 Groups C & D and Class 2 Division 1-2 and uses a 22 inch Cree LED light head to produce 21,000Â lumens of light while drawing only 150 watts. This portable light fixture operates on 120-277V AC 50/60 Hz stepped down to 24V DC via an inline encapsulated C1D1 transformer.
The EPL-16BS-1X150LED-140DB-X24I-C1D1-200 explosion proof LED light with stepdown encapsulated C1D1 transformer provides 10,000 square feet of work area coverage with 21,000 lumens of light output. This portable LED light is mounted to a four leg aluminum base and has an LED light head measuring 22 inches wide by 14 inches tall. The LED light head on this unit produces a brilliant flood pattern of light that is ideal for illuminating enclosed areas and hazardous locations where flammable vapors, gases and dusts may be present. Often referred to as simply a “tank light,†this unit is considered universal due to its ability to be passed through any conventional manhole such as those found in petrochemical containers and ship storage tanks.
The LED light head produces a brilliant flood pattern of light that is ideal for illuminating enclosed areas and further adds to this units desirability as a portable tank lighting solution. This explosion proof LED light fixture is comprised of a 22 inch LED light head mounted atop a base stand fabricated from non sparking aluminum. Transferring the unit through manholes consists of simply removing the light head from the base, passing the light head and base through the manhole separately, and then reassembling the unit once inside. The lamp can be easily adjusted up or down 90 degrees and locked into position by simply loosening the two hand screws located on either side of the light head and re-tightening them once the desired angle is found. Included with this LED light is 200 feet of SOOW cord, which combined with the 360° of rotation and 90° of tilt offered by the LED light head provides an effective alternative to often cumbersome explosion proof string lights.
The explosion proof LED light head in this unit features multiple LED drivers which helps to increase the operational life of the fixture.
With traditional LED lights, in the event an LED array or driver fails, the entire fixture no longer illuminates.
This new series of LED lamps contains
twelve individual LED boards configured in a series of banks. Each bank contains two LED boards with an individual driver. In the event of a driver failure, only one bank of LEDs will be effected while the other banks will continue to operate. In the event that of an LED failure, the mating LED will continue to operate.
60° Beam Angle
125° Beam Angle Plug
140° Beam Angle Plug
Beam Angles:
When used as a portable lighting solution, the varying beam angles are each individually ideal for several environments. The 60° beam provides the most intense beam of the three options. It is perfect for narrow, confined spaces and is ideally suited for tank cleaning purposes. It offers focused light to provide ample illumination to tight work spaces and other environments. The 125° beam offers a more diffused source of light that is also less intense in brightness. It is a great general area work light and performs well when used for outdoor illumination. The 140° beam offers a very wide lighting pattern and is ideal for situations where lighting distance is not a concern, but illumination of a wider area and even light distribution is. The 140° beam is great for situations that call for working in close proximity to lights such as in a paint booth.
Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting.
Voltage:
The step-down transformer installed in-line provide the ability to automatically monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. These light towers can operate on current ranging from 90 to 305V AC or 127 to 431V DC without any modifications necessary as a result. This ability to sense and adjust input current also provides protection against voltage spikes and drops that can occur in electrical systems which would otherwise result in burning up or premature LED failure without it.
5-15 Straight Blade Plug
5-20 Straight Blade Plug
6-20 Straight Blade Plug
Wiring:
This unit is equipped with 200 feet of 600V 12/3 chemical and abrasion resistant SOOW cable leading to an encapsulated, Class 1 Division 1 explosion proof step down transformer. There is ten feet of 16/3 SOOW cable coming out of the inline transformer, and is terminated in a explosion proof cord cap. Both the line-in and line-out cables of the transformer are terminated via EYM seal offs with Kellum style cord grips to prevent the cable from being pulled out while in the field. The transformer enclosure features a chain carry handle for easy mobility. This inline power supply for this explosion proof drop light is an auto sensing universal voltage transformer that operates on any voltage within the 100-277 volts AC 50/60Hz range. This unit allows operators to power the LED light from any 120V, 220V, or 240V AC power source, and steps down AC voltage to 24V DC.
Plug:
Plug options include a 5-15 15 amp straight blade plug for use with 120V explosion proof outlets, a 5-20 20 amp straight blade plug for use with 120V explosion proof outlets, or a 6-20 20 amp straight blade plug for use with 220-240V explosion proof outlets.
**PLEASE NOTE** voltage ratings on plugs and outlets are MAXIMUM voltage.
Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug.
Energy Consumption Comparison
Metal Halide
LED
Wattage
400 watts
150 watts
Amp Draw @ 120V AC
3
.83 amps
1.25 amps
Amp Draw @ 220V AC
2.09 amps
0.68 amps
Amp Draw @ 240V AC
1.92 amps
0.63 amps
Amp Draw @ 277V AC
1.66 amps
0.54 amps
Amp Draw @ 12V DC
38.33
amps
12.5 amps
Amp Draw @ 24V DC
19.12 amps
6.25
amps
Lamp Life Expectancy
20,000 hours
50,000+ hours
Operation cost per year
$241.78
$78.84
Each LED light fixture has the potential to save $150.00+ per year in electricity alone, not including maintainer costs, operational downtime, reduced productivity, HVAC loads, or carbon footprint. When retrofitting an entire facility with 100s of light fixtures, the return on investment of LED over metal halide becomes evident.
Further adding to the versatility and convenience of this explosion proof LED light are 25 peel off mylar overspray lamp protectors that ship with the unit. The protectors provide lamp protection from dirt or debris and can be removed, cleaned and replaced, lessening the need for tedious lamp cleaning or replacements. his explosion proof LED light fixture is IP67 rated, dust-proof, and protected against high pressure jets and temporary submersion. The cast aluminum body and LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LEDs and electronics. This lamp is T5 temperature rated and the LED light head retains 80% of its lumen output after 60,000 hours of use, far longer than incandescent or fluorescent lamps.
Made in USA Quality
Superior LED Benefits
1. Approved Class 1 Div1-2 Class2 Div I-2
1. 60,000+ hour lifespan.
Specifications
Listing: United States - Canada
Lamp Type: Cree LED
Dimensions: 46.61"-H x 23"-W x 23"-D
Weight: 45 lbs
Voltage: 90-305 Volts AC 50/60 Hz or 127- 431V DC stepped down to 24V DC
Total Watts: 150W
Total Lumens: 21,000
Luminous Efficiency: 140 Lm/W
Lamp Life: 60,000+ Hours
Color Temp: 5600K, 5000K, 4500K, 4000K, 3500K, 3000K, 2700K, or 6500K
Color Rendering Index: >75 CRI
Beam Angle: 60°, 125°, or 140°
Lighting Configuration: Flood Pattern
Power Efficiency: >95%
Power Factor: 0.992
Ambient Operating Temp Range: -50° C to +65°C
Operating Temp Rating: T5
Lamp Housing Material: Copper Free Cast Aluminum
Lens Material: Hardened Borosilicate Glass
Gasket Material: Silicone
Base Stand Material: Non-Sparking Aluminum
Base Stand Finish: Powder Coated - Blue
Mounting: Portable Base Stand w/ Handle and Feet
Wiring: 200` 14/3 SOOW, 200` 12/3 SOOW, seal-off w/ Kellum strain relief, inline transformer, seal-off w/ Kellum strain relief, 10` 16/3 SOOW EXP Cord Cap
Beam Lux: 8500@ 1 Meter 1250@ 3 Meters
Wiring: 200` 14/3 SOOW, 200` 12/3 SOOW, seal-off w/ Kellum strain relief, inline transformer, seal-off w/ Kellum strain relief, 10` 16/3 SOOW EXP Cord Cap
Cord Cap: 5-15, 5-20, 6-20 - Explosion Proof
