Explosion Proof Hand Lamp w/ ATEX DXN Plug - 100' SOOW Cord - 60/100 Watt - 220VAC

LARSON ELECTRONICSSKU: PL3-EPL-220-100-DNX1
filler

Precio:
Precio de venta$2,768.00

Descripción

Specifications / Additional Information
EPL-220-100-DXN1 Ratings/Approvals
Listing: United States Class 1, Division 1 Groups C, D (100 watt)
Lamp Type: Incandescent Class 2, Division 1 Groups F, G (75 watt)
Handlamp Dimensions: 16.5"-L x 5"-Dia Class 1, Division 2 inline transformer
Handlamp Weight: 5.5 lbs Class 1, Division 1 plug
Total Weight: 15 lbs Class 1, Zone 1 Group IIB
Total Watts: 100 or 60 watts NEMA 4X
Voltage: 220-240 VAC ATEX Rated DXN Plug
Total Lumens: 787 or 1050
Luminous Efficacy: 9 Lm/W
Lamp Life: 2,550 Hours
Color Temp: 2700K
Lighting Configuration: 360° Flood
Max Amperage: 0.42A @ 240V AC
Max Ambient Temp: 40° C
Max Operating Temp: 160° C (T3C) Class 1 & 2 Division 1 & 2
Mounting: Handheld w/ Swivel Hanging Hook
Wiring: 100` 16/3 SOOW
Cord Cap:230V ATEX Rated DXN Plug
Warranty: Yes - 3 Years
3 year warranty replacement on this light. After 30 days, the customer ships the failed light and/or LED bulb to Larson Electronics at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics will provide a return label via email to the customer. When the failed light is returned, Larson Electronics will ship a new replacement.

' Product Overview '

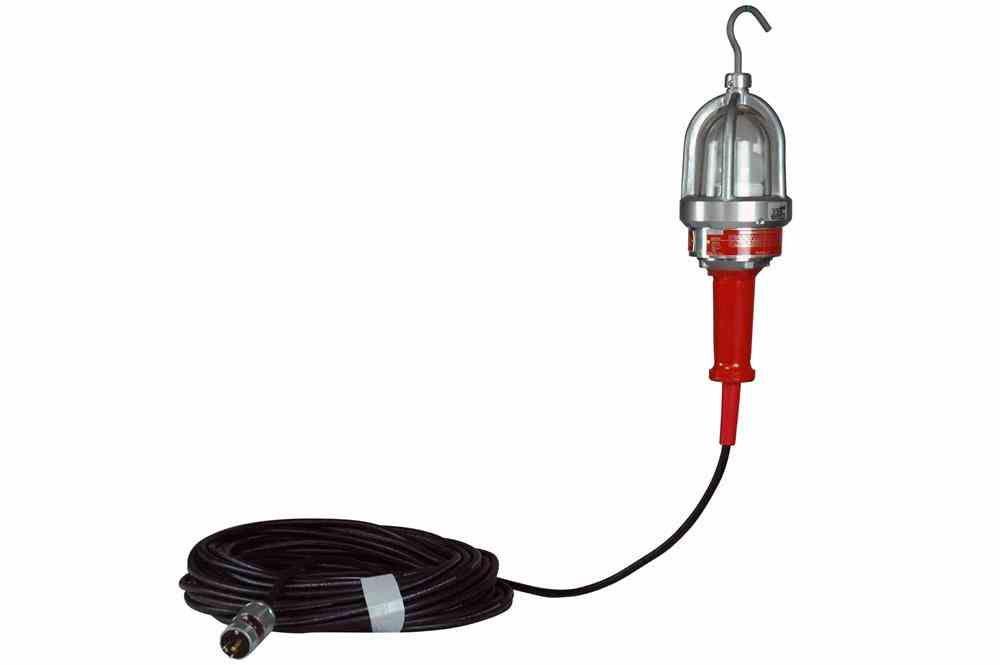

Made in the USA The Larson Electronics EPL-220-100-DXN1 Explosion Proof Hand Lamp is UL Listed Class 1 Division 1 Groups C and D and is ideal for general work activities in hazardous locations requiring explosion proof protection. This C1D1 drop light is equipped with a 100 watt or 75 watt incandescent lamp and 100` SOOW cable that is terminated in a DXN cord cap. This explosion proof work light from Larson Electronics comes complete with 100 feet of explosion proof cord and an ATEX rated 230 volt DXN plug for long range and convenient operation. The EPL-220-100-DXN1 drop light housing is constructed of aluminum with a rubber bumper guard designed to provide an effective lighting solution for operators requiring a versatile source of illumination. This hazardous location hand lamp is Class 1, Division 1 approved when equipped with a 100 watt bulb and Class 2 Division 1 approved when equipped with a 75 watt bulb. This explosion proof drop light is ideal for hazardous work areas where a ready source of easily managed lighting is desired.
Dark 40` Container DXN1 ATEX DXN Plug Illuminated with EPL-220-100
Click Photos to Enlarge Click Photos to Enlarge
This 60 or 100 watt drop light is suitable for use in areas where petrochemical vapors (100 watt) and various dusts (75 watt) are present. This unit is rated Class 1, Division 1, Class 2 Division 1 and comes complete with 100’ of SOOW 16/3 AWG cord ending in a an ATEX rated 230V DXN1 plug of the for complete explosion proof protection which allows connecting the lamp within the hazardous location. This explosion proof hand light operates on European standard 220 Volts. This unit is available with either a 100 watt bulb for Class 1 Division 1 operation (Gases Vapors) or a 75 watt bulb for Class 2 division 1 operations (Dusts). Choose your bulb type below when ordering.
Made in USA Quality Lamp Features
1. Federal Spec Cord. 2. Explosion Proof. 3. 75 or 100 Watt Lamp. 4. Rugged fabricated steel and cast aluminum construction. 5. Red and Gray paint finish. 6. UL Class1 Div1 Class 2 Div1 7. 220 Volt Operation 8. 100` SOOW cable Explosion Proof Plug. 9. Hook for Convenient Placement. 10. Rubber bumper Guard Non-sparking aluminum housing 220 VAC operation Aluminum lamp guard Lamp shield prevent shattering Plugs into standard outlets Swivel hook for hanging and hands free operation Explosion proof cord
