Explosion Proof Hand Lamp -100/75/60 Watt - 220V AC - 25 Meter 14/3 SOOW Cord - Class 1 & Class 2

LARSON ELECTRONICSSKU: PL3-EPL-220V-14.3-25M
filler

Precio:
Precio de venta$1,228.00

Descripción

Specifications / Additional Information
EPL-220V-14.3-25M Explosion Proof Hand Lamp Approvals / Ratings
Lamp Type: Incandescent Class I, Divisions 1 & 2, Groups C, D (100 watt)
Dimensions: 16.5"L x5"Dia Class II, Divisions 1 & 2, Groups F, G (60 or 75 watt)
Total Weight:78.4 lbs Class I, Zone 1, Group IIB
Lamp Weight: 5 lbs Listed to UL 844
Voltage: 220V AC, 50/60 Hz Listed to CSA 22.2 No. 137
Total Watts: 100 watts, 75 watts, or 60 watts Listed for United States and Canada
Total Lumens: 1000 (100W), 750 (75W), or 600 (60W) T3C Temperature Rated
Luminous Efficacy: 10 Lm/W
Lamp Life: 4,000 Hours
Ambient Operating Temp: -20°C to +50°C
Housing Material: Aluminum & Plastic
Mounting: Handheld w/ Swivel Hook
Lens Material: Tempered Glass
Wiring: 25 Meters 14/3 SOOW Cord w/ General Area Cord Cap
Cord Cap: 6-15, L6-15, BS1363, Schuko, or Pigtail
Warranty: Yes - 1 Year*
Intl: 1-903-270-1187
' Product Overview '

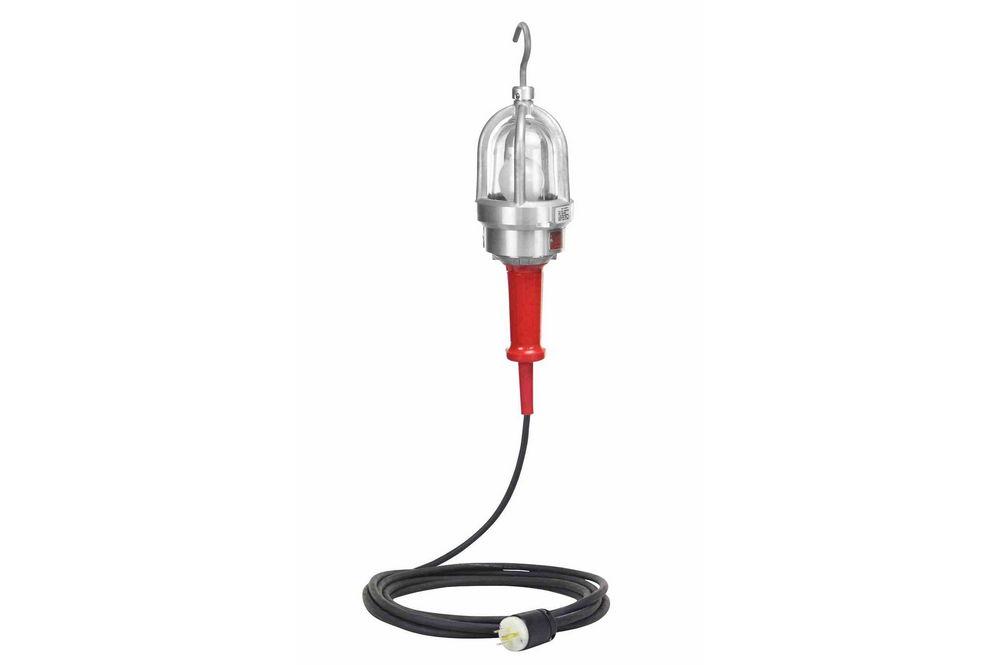

Made in the USA The EPL-220V-14.3-25M from Larson Electronics is an Explosion Proof Hand Lamp that is Class I Division 1 Groups C & D rated for use in hazardous location. This explosion proof hand lamp operates on 220V AC, 50/60Hz and is equipped with 25 meters of 14/3 SOOW cable and a choice of cord caps. *Please note that although the hand lamp on the EPL-220V-14.3-25M is explosion proof, the included cord cap is NOT and must be plugged in OUTSIDE of the hazardous area.* This explosion proof work light from Larson Electronics comes complete with 25 meters of explosion proof cord. The EPL-220V-14.3-25M drop light housing is constructed of aluminum with a rubber bumper guard designed to provide an effective lighting solution for operators requiring a versatile source of illumination.
Dark 40` Container Illuminated with EPL-220V-14.3-25M
Click Photos to Enlarge Click Photos to Enlarge
This hazardous location hand lamp is Class I Division 1 approved when equipped with a 100 watt bulb and Class II Division 1 approved when equipped with a 60 or 70 watt bulb. This explosion proof drop light is ideal for hazardous work areas where a ready source of easily managed lighting is desired.
Click Photos to Enlarge
L6-15 Twist Lock Plug 15 Amp / 250V Rated
UK BS1363 Straight Blade Plug 13 Amp / 250V Rated / Internal Fuse Intl Schuko 2-Pin Plug 16 Amp / 250V Rated / Grounded Flying Leads / Pigtail Wires
Wiring/Plug: This explosion proof hand lamp is equipped with 25 meters of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug. This explosion proof hand light operates on 220V AC, 50/60Hz. This unit is available with either a 100 watt bulb for Class I Division 1 operation (Gases Vapors) or a 60 or 75 watt bulb for Class II Division 1 operations (Dusts). Choose your bulb type below when ordering.
