Explosion Proof Incandescent Drop Light - 100/60 Watts - 220 Volts, 50Hz - 50' Cord - Class I & II

LARSON ELECTRONICSSKU: PL3-EPL-220V-50
filler

Precio:
Precio de venta$1,164.00

Descripción

Specifications / Additional Information
EPL-220V-50 Explosion Proof Hand Lamp Approvals / Ratings
Lamp Type: Incandescent Class I, Division 1 & 2, Groups C, D (100 watt)
Dimensions: 16.5"L x 5"Dia Class II, Division 1 & 2, Groups F, G (75 watt)
Total Weight: 14.8 lbs Class I, Zone 1, Group IIB
Lamp Weight: 5 lbs Listed to UL 844
Voltage: 220-240V AC 50/60Hz Listed to CSA 22.2 No. 137
Total Watts: 100 watts, 75 watts, or 60 watts Listed for United States and Canada
Total Lumens: 1000 (100W), 750 (75W), or 600 (60W) T3C Temperature Rated
Luminous Efficacy: 10 Lm/W
Lamp Life: 4,000 Hours
Ambient Operating Temp: -20° to +50°C
Housing Material: Aluminum & Plastic
Mounting: Handheld w/ Swivel Hook
Lens Material: Tempered Glass
Wiring: 50` 16/3 SOOW Cable
Cord Cap: 6-15, 6-20, L6-15, L6-20, BS1363, Schuko, or Pigtail
Warranty: Yes - 1 Year*
Intl: 1-903-270-1187

' Product Overview '

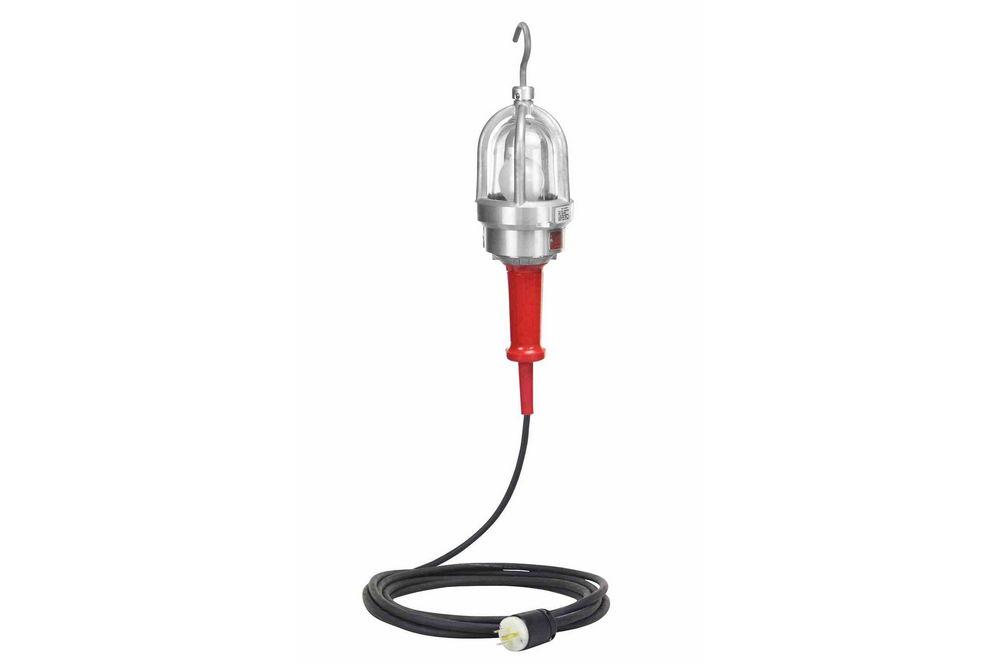

Made in the USA The Larson Electronics EPL-220V-50 Explosion Proof Hand Lamp is UL Listed Class 1 Division 1 Groups C and D - and is ideal for general work activities in hazardous locations requiring explosion proof protection. This explosion proof work light from Larson Electronics comes complete with 50 feet of explosion proof cord. The EPL-220V-50 drop light housing is constructed of aluminum with a rubber bumper guard designed to provide an effective lighting solution for operators requiring a versatile source of illumination. This hazardous location hand lamp is Class 1, Division 1 approved when equipped with a 100 watt bulb and Class 2 Division 1 approved when equipped with a 75 watt bulb. This explosion proof drop light is ideal for hazardous work areas where a ready source of easily managed lighting is desired.
Dark 40` Container Illuminated with EPL-220V-50
Click Photos to Enlarge Click Photos to Enlarge
This 75 or 100 watt drop light is suitable for use in areas where petrochemical vapors (100 watt) and various dusts (75 watt) are present. This unit is rated Class 1, Division 1, Class 2 Division 1 and comes complete with 50€™ of SOOW 16/3 AWG cord ending in a straight blade plug.
Click Photos to Enlarge
L6-15 Twist Lock Plug 15 Amp / 250V Rated UK BS1363 Straight Blade Plug 13 Amp / 250V Rated / Internal Fuse
Intl Schuko 2-Pin Plug 16 Amp / 250V Rated / Grounded Flying Leads / Pigtail Wires
Wiring and Plug: This explosion proof drop light is equipped with 50 foot of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug.
Made in USA Quality Lamp Features
1. Federal Spec Cord. 2. Explosion Proof. 3. 75 or 100 Watt Lamp. 4. Rugged fabricated steel and cast aluminum construction. 5. Red and Gray paint finish. 6. UL Class1 Div1 Class 2 Div1 7. 240 Volt Operation 8. 50` SOOW cable. 9. Hook for Convenient Placement. Rubber bumper Guard Non-sparking aluminum housing 220 VAC operation Aluminum lamp guard Lamp shield prevent shattering Plugs into standard outlets Swivel hook for hanging and hands free operation Explosion proof cord
