CID1 Explosion Proof 34 Watt Linear LED Light - Surface Mount - 20' Cord w/ EXP PluG - 3,600 Lumens

LARSON ELECTRONICSSKU: PL3-EPL-24-50LED-SFC-20C
filler

Precio:
Precio de venta$4,230.00

Descripción

Specifications / Additional Information
EPL-24-50LED-SFC-20C Explosion Proof Ratings
NRTL Listed for United States & Canada Class I Divisions 1&2, Groups C & D
Lamp Type: LED T4A Temp Rating
Dimensions: W-4.83" L-25.56" H-6.15 " NRTL Certified toUL 844
Weight: 17.5 Lbs NRTL Certified toUL 1598 Marine Type
Voltage: Universal 100-277VAC 50/60 hz NRTL Certified toUL 8750
Total Watts: 34 Watts IP66 Rated
Total Lumens: 3,600 NEMA 4X
Luminous Efficacy: 106 l/w CSA 22.2 No. 137-M81
LED Lamp Life Expectancy: 100,000+ Hours Made in the USA
Color Temp: 5000K
Beam Angle: 150°
Ambient Operating Temp Range:-40° C to 65°C
Operating Temp Rating: T4A Rated
Minimum Operating Temp: -40° C
Maximum Case Temp: 65° C Toll Free: 1-800-369-6671
Surface Mounting: Surface Mounted Via a Trunnion U-Bracket Intl: 1-214-616-6180
Wiring: 1/2" Threaded NPT w/ 20ft` 16/3 SOOW Cable With Explosion Proof Cord Cap Fax: 1-903-498-3364
Cord Cap: 15A 5-15P, 20A 5-20P, 20A 6-20P E-mail:
' Product Overview '

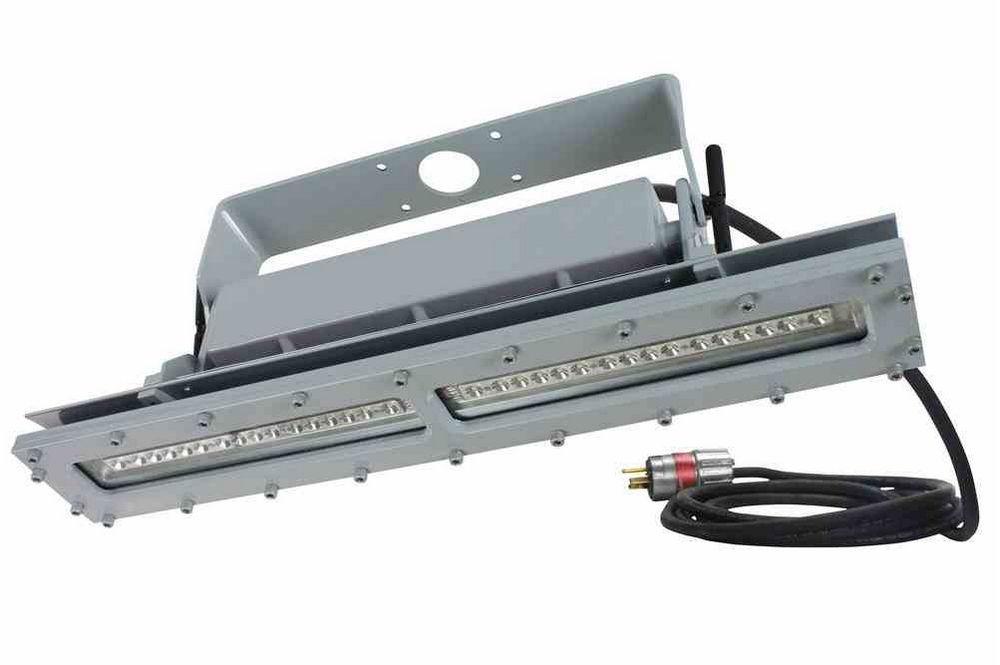

Made in Texas The Larson Electronics EPL-24-50LED-SFC-20C LED Explosion Proof LED Light Fixture is NRTL Listed for United States and Canada Class I, Divisions 1 & 2 for areas where flammable chemical/petrochemical vapors exist or have the potential to exist. This explosion proof LED light runs on universal voltage of 120-277V, has a T4A temperature rating, and is designed for low profile surface mounting to provide bright illumination in areas where flammable gas or vapors may be present. The EPL-24-50LED-SFC-20C is comprised of solid state design LEDs, making this explosion proof led fixture highly resistant to shock and vibrations and cooler running than comparable incandescent and HID light fixtures. This 34 Watt LED fixture draws less than one amp on a 120 Volt AC power system while producing 3,600 lumens of bright white light, producing efficiency that reduces power consumption and operating costs without compromising light output or quality. This explosion proof linear LED fixture contains no ballast box normally associated with fluorescent fixtures, which reduces overall weight and creates a slimmer unit profile. The solid state LEDs have a 100,000+ hour service life, which results in extreme efficiency and greatly reduced maintenance costs. The solid state design of the LED lamps give this fixture superior resistance to damage from vibration, extremes in temperature and a lamp service life over twice that of standard T5 fixtures. This light is universal voltage capable and can be operated with 100-277 VAC, 50/60Hz without any need for a special ballast. We offer 347-480V AC 50/60 Hz on special requests. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LED luminaries. The LED lamp produces 3,600 lumens with a color temperature of 5000K and a color rendering index of 75, which produces colors and details much more accurately than high pressure sodium or mercury vapor luminaries. The EPL-24-50LED- SFC-20C is surface mounted via a trunnion u-bracket and is ideal for illuminating areas where light is at a premium. We also sell the EPL-24-50LED-PND, a pendant version of this product.  This low profile explosion proof LED light with 20` 16/3 SOOW cable with explosion proof plug is surface mounted with a single adjustable aluminum u-bracket and comes with a 20` explosion proof plug. The EPL-24-50LED-SFC-20C is a low profile, bright, and explosion proof lamp applicable for work environments where flammable gases and vapors may be presents, such as in factories, silos, plants, and Class I Division 1 and 2 work environments.
Click Photos to Enlarge
5-15 Straight Blade Plug 5-20 Straight Blade Plug 6-20 Straight Blade Plug
High Quality Features Superior LED Benefits
1. Low power consumption. 2. Instant on/off operation. 3. Fixture constructed of extruded corrosion resistant copper free aluminum alloy. 4. Superior color rendering compared to HPS, LPS, MV. 5. Retains 80% lumen output after 60,000 operating hours. 6. Powder coated aluminum fixture body. 7. Low profile - Light weight 8. 3,600 Lumen output from only 34 watts             1. 100,000 hour lifespan. 2. Can SAVE 50% or more on energy. 3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs. 4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration) 5. 100% recyclable. 6. No toxins-lead, mercury. 7. No UV light, infrared radiation or CO2 emissions. 8. Qualifies buildings for LEED and other sustainable business certifications. 9. Bright, even light maintains consistent color over time. 10. Instant on/off No flickering, delays or buzzing. 11. Very good color rendering. 12. Vibration/impact resistant. 13. Significantly cooler operation. 14. Less frequent outages, higher output improves workplace safety.
