Larson Low Profile Surface Mount Explosion Proof Fluorescent Light - 20,000 Lumens - 25' Cord w/ EXP Plug
Larson Low Profile Surface Mount Explosion Proof Fluorescent Light - 20,000 Lumens - 25' Cord w/ EXP Plug
Sold by: Larson Electronics
Made in the USA
The Larson Electronics EPL-48-216-EYM-25C-EPP Explosion Proof Fluorescent Light Fixture is NRTL Listed for United States and Canada, and rated Class 1 Division 1 and Class 1 Division 2
for hazardous locations where flammable chemical/petrochemical vapors exist or have the potential to exist. The unit carries a T6 temperature rating, it is also approved for Paint Spray Booths. This unit is equipped with 25` of SOOW cable and terminated in an explosion proof plug for easy connection to electrical sources withint the hazardous environments.

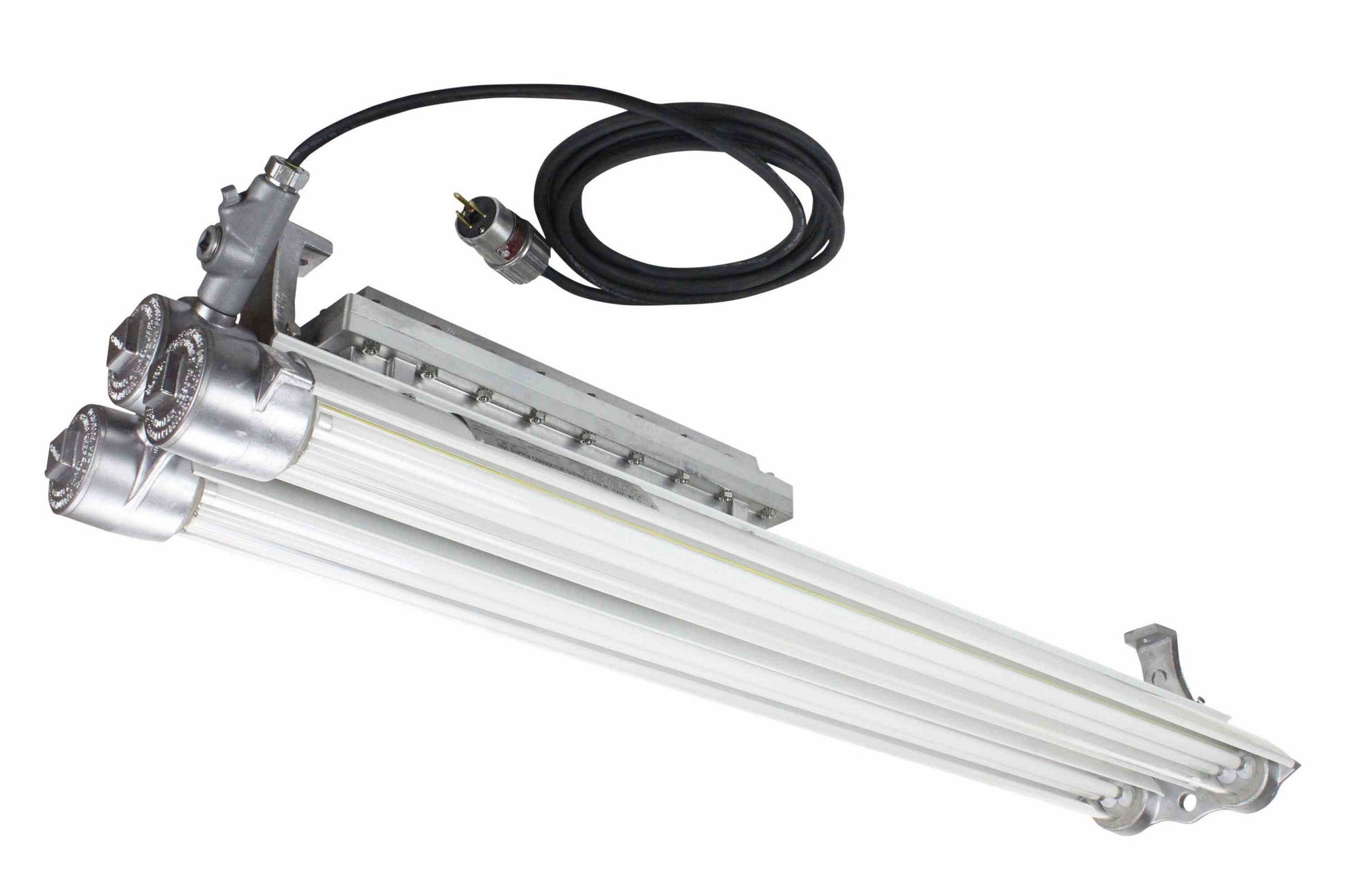

The EPL-48-216-EYM-25C-EPP fixture is a 4 foot long, 4 lamp, Class 1 Division 1 and Class 2 Division 1&2 explosion proof fluorescent light which is also approved for use in paint spray booth applications. This T6 temperature rated fixture comes standard with four T5 high output fluorescent lamps. The lamps are protected by heat and impact resistant Pyrex tubes and the fixture is constructed of copper free aluminum alloy. The lamp reflectors are corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. This fixture is multi-voltage capable and is available with a variety of lamp options. The EPL-48-216-EYM-25C-EPP provides operators in hazardous locations with a reliable and affordable lighting solution that provides the best explosion proof protection available without sacrificing light quality or fixture durability.
Mounting Options:
Unless otherwise specified, our standard, most popular configuration is the bracket end mounting shown enlarged below. We also offer a pendant mount for those needing to suspend the fixture away from the ceiling surface (i.e. suspend from pipe or conduit). Additional mounting configurations can be customized to meet the requirements on the application. Please contact us for special mounting configurations.
Adjustable Surface Mount Brackets:
Each bracket is cinched to the bracket mounting peg on each side of the light. The angle of the bracket is set by tightening two cap screws on either side of the bracket. The cap screws act as a set screw. The bracket itself is mounted via a single bolt hole at the top the bracket. There are two brackets, one on each end of the light. Once the brackets are mounted to a surface (ceiling, floor or wall), the light fixture can be removed from the brackets by loosening the cap screws that hold the bracket to the mounting peg.
Suspension Mounting:
Pendant mount fixtures hang from the ceiling and are suspended by rigid pipe. Each fixture features a 1/2” NPT junction box on one end, and a 1/2” NPT adjustable L-bracket on the other end of the fixture. Operators bring rigid pipe down to the threaded mounting hubs. Wiring is fed down through the rigid pipe to the junction box and tied in to the fixture’s lead wires, completing the electrical connection. The adjustable L-shape mounting bracket provides support for the opposite end of the fixture.
5-15 Straight Blade Plug
5-20 Straight Blade Plug
6-20 Straight Blade Plug
Wiring & Plug:
The EPL-48-216-EYM-25C-EPP explosion proof light fixture is NRTL Listed for United States and Canada for use in paint spray booths. This fixture is equipped with a seal off and 25` of 16/3 chemical and abrasion resistant SOOW cable terminated in an explosion proof cord cap. Plug options include explosion proof 5-15 15 amp straight blade plug, explosion proof 5-20 20 amp straight blade plug, or explosion proof 6-20 20 amp straight blade plug. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug.
Made in USA Quality
Lamp Options
1. Each unit dialectically tested.
F54-T5/850/HO
– 54 watt, 5000 lumens per bulb, 20,000 hours life, 5000 Kelvin color, CRI 85 RHA-UNV-254-LT5 Ballast is THD<10% and HPF .98 (Suffix –50KT5)
F54-T5/841/HO
- 50 watt, 4450 lumens per bulb, 20,000 hour life, 4100 Kelvin color, CRI 85 (Suffix -41KT5)
This light is also available with LED bulbs instead of fluorescent bulbs.
Specifications
NRTL Listed for United States & Canada
United States & Canada NRTL Listed for
Dimensions: W-11.25" x L-52" x H-8.5 "
Weight: 70 Lbs
Voltage: Universal 120-277VAC 50/60 Hz
Total Watts: 216W
Total Lumens: 20,000
Lamp Life Expectancy (Hrs): 20,000 (T5HO)
Luminous Efficiency (Lm/W): 95.59 (T5HO)
Color Temp: 5000K or 41000K
Beam Angle: 150°
Ambient Operating Temp Range: -20°C to +70°C
Operating Temp Rating: T6 Rated
Minimum Operating Temp: -30°C
Maximum Case Temp: +90°C
Housing Material: Cast Aluminum End Caps, Aluminum Reflectors - Copper Free
Lens Material: Hardened Borosilicate Glass Tubes
Gasket Material: Buna Rubber O-Rings
Mounting: Surface Standard - Pendant Optional
Wiring: 25` 16/3 SOOW w/ EYM Seal Off & Cord Cap
Cord Cap: 5-15, 5-20, or 6-20 - C1D1 Rated
Warranty: 5 Years*
