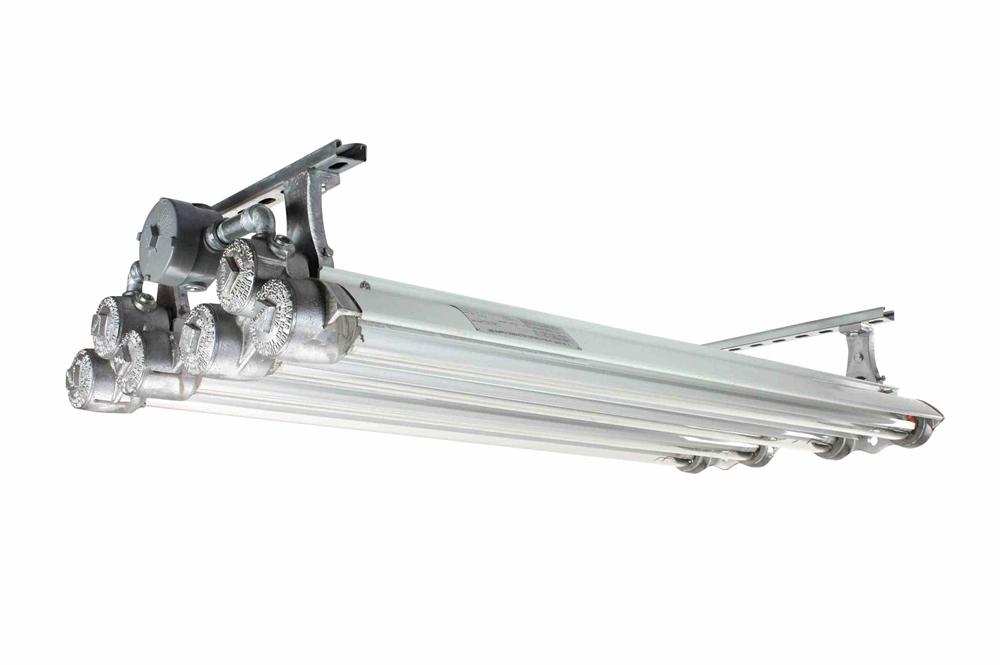

112W Explosion Proof LED Light for Paint Spray Booth - C1&2D1 - 4' 4 Lamp - T6 Temp - 0-10V Dimming - 100' 12/5 SOOW Cord
112W Explosion Proof LED Light for Paint Spray Booth - C1&2D1 - 4' 4 Lamp - T6 Temp - 0-10V Dimming - 100' 12/5 SOOW Cord
Precio habitual
$8,376.00 CAD
Precio habitual
Precio de oferta
$8,376.00 CAD
Los gastos de envío se calculan en la pantalla de pago.
Specifications / Additional Information
| EPL-48-4L-LED-D-V2-100C Explosion Proof Dimmable LED Fixture | Ratings/Approvals |
| Dimensions: 22.50"-W x 52.00"-L x 8.50"-H | Class I Division 1, Groups C and D T6 |
| Weight: 95 lb | Class I Division 2, Group A,B,C,D |
| Voltage: Universal 120-277 V AC, 50/60 Hz | Class II, Divisions 1 & 2, Groups E,F,G |
| Total Watts: 112 watts (28 Watts per Lamp) | NRTL Certified to UL 595 Marine Type (Saltwater) |
| Total Lumens: 14,000 (3,500 per Lamp) | NRTL Certified to UL 844 |
| LED Lamp Life Expectancy: 50,000+ Hours | NRTL Certified to UL 1598 Marine Type |
| Luminous Efficacy: 125 Lumens per Watt | Paint Spray Booth Approved |
| Color Temp: 5600K, 5000K, 4500K, 4000K, 3500K, 3000K, 2700K, or 6000K | California Title 24 Compliant |
| Color Rendering Index: >80 | IP67 Rated - Waterproof |
| Beam Angle: 150° | T6 Temperature Rating |
| Power Efficiency: 90% | NEMA 4X |
| Power Factor: >0.95 | LEL Listed LED Lamps |
| Ambient Operating Temp Range: -30°C to +85°C | Approved for Confined Spares |
| Operating Temp Rating: T6 Rated | Silicone Free |
| Minimum Operating Temp: -30°C | Factory Sealed Fixture |
| Maximum Case Temp: +90°C | 0-10V Dimmable |
| Housing Material: Cast Aluminum End Caps, Aluminum Reflectors - Copper Free | Made in the USA |
| Lens Material: Hardened Borosilicate Glass Tubes | |
| Gasket Material: Buna Rubber O-Rings | Special Orders - Requirements |
| Mounting: Surface Standard - Pendant Optional | |
| Wiring Hub: 1/2" NPT | Toll Free:Â 1-800-369-6671 |
| Wiring: 100' 12/5 SOOW Cord w/ Blunt Cut End | Intl:Â 1-214-616-6180 |
| Â | Fax:Â 1-903-498-3364 |
| Â | E-mail:Â |
| Made in the USA The EPL-48-4L-LED-D-V2-100C from Larson Electronics is an Explosion Proof Dimmable LED Light Fixture that is NRTL Listed for United States and Canada and rated Class I Divisions 1 & 2 and Class II Divisions 1 & 2 for areas where flammable chemical/petrochemical vapors, gases and/or pulverized dust and fibers exist or have the potential to exist. This explosion proof LED light has a T6 temperature rating and carries a paint spray booth light certification, making it ideal for applications such as paint booths, oil rigs, offshore applications, petrochemical, manufacturing, chemical storage, water treatment centers, and food processing plants. The EPL-48-4L-LED-D-V2-100C is equipped with 100' of 12/5 SOOW cord that brings power to both the light and the dimming controls. ***PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS HAZARDOUS LOCATION LIGHT FIXTURE*** This 4 foot long 4 lamp LED fixture is ideal for operators seeking a top quality dimmable explosion proof light that will reduce operating costs, improve lighting quality and reduce downtime incurred from frequent servicing intervals. The EPL-48-4L-LED-D-V2-100C is equipped with Larson Electronics` specially designed LED T-series bulbs which produce 14,000 lumens, resulting in 30% more foot candles of illumination at 8 feet as compared to standard T8 lamps when measured with an Extech light meter. Our LED-T series bulbs are visibly brighter than standard T8`s and have consistently surprised many of our customers with their unexpectedly high light output levels. We have replaced four 8 foot dual lamp T8 fixtures in our own facility with our LED T series lamps and produced more illumination in the work area with only one 4 lamp 4 foot long LED fixture. This LED light fixture features 0-10V dimming capabilities. This gives operators the ability to manually adjust the brightness of the LED lamp quickly and easily. The 0-10V dimming allows for adjustments to fit the brightness needs of any lighting situation. A 0-10V dimmable light works through the use of a DC control signal that ranges between zero and ten volts. The basic idea is that at 10 volts of input the light is at its brightest level with 0 volts being the lowest possible dimness setting. The smooth, continuous and flicker-free dimming of a 0-10V dimmable LED light is ideal for a wide range of different lighting applications. We now offer our second generation LED tube lamps with this fixture which have increased this hazardous location light`s performance. This four lamp explosion proof LED linear fixture is lighter in weight, has a slimmer profile, and produces more light than traditional explosion proof fluorescent fixtures. The four foot long LED tube design bulbs included with this unit are rated at 50,000 hours of service life, which is over twice as long as standard T8 bulbs. This 0-10V dimmable fixture carries a T6 temperature rating and is approved for Class I Division 1, Groups C and D, Class I, Division 2, Group A, B, C and D, and Class II, Divisions 1 and 2, Groups E, F and G environments where flammable or combustible gases, vapors, dusts, fibers, and flying exist or stand the potential to exist. This LED linear fixture is approved for use in confined spaces. | ||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||
We have eliminated the ballast box normally associated with explosion proof fluorescent fixtures which reduces overall weight and overall complexity of installation. There is no ballast in this unit and the included LED lamps have a 50,000+ hour service life, both of which result in extreme efficiency and greatly reduced maintenance costs. These fluorescent LED lamps have internal drivers, eliminating external power components. The solid state design of the LED lamps give this fixture superior resistance to damage from vibration, extremes in temperature and a lamp service life over twice that of standard fluorescent bulbs. This second generation lamp is offered in 5600K cool white, 4500K natural white, and 3000K warm white. Our standard unit ships with 5600K unless different color temperature is specified.
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.
LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
The 28 watt LED lamps produce 30% more illumination than standard T8 bulbs while offering lower amp draw and increased reliability. Each lamp produces 3,500 lumens at 125 lumens per watt, for a combined 14,000 total lumen light output. An EPL-48-4L-T8 explosion proof fluorescent light, with a combined total of 128 watts, draws 1.07 amps at 120 volts AC. This LED version of the same light, with a total of 112 watts, draws only 0.93 amps at 120 volts AC. The EPL-48-4L-LED-D-V2-100C is universal voltage, not multi-tap, and operates on any voltage from 120V to 277V AC 50/60hz without any modifications. The 0-10V dimming capabilities of the EPL-48-4L-LED-D-V2-100C offers energy savings and easy brightness control.
|
