10W Hazardous Location LED Aviation Obstruction Light - 230V, 50/60 Hz - Blue, L810 - Surface Mount - ATEX/IECEx
10W Hazardous Location LED Aviation Obstruction Light - 230V, 50/60 Hz - Blue, L810 - Surface Mount - ATEX/IECEx
| EPL-AE.EX-AVL-LED-10W-B-230V-R1 LED Aviation Obstruction Light | Ratings/Approvals |
| Listing: NRTL Listed for European Union and International | ATEX/IECEx Rated |
| Lamp Technology: LED (L810) | Zones 1/2 and 21/22 |
| Dimensions (w/ Mounting Bracket): 13.62" x 9.84" (346mm x 250mm) | Ex tb …C T80ƒ Db |
| Weight: 18.95 lbs (8.6 kgs) | Ex …¡ 2 GD Ex de …¡ C T6 Gb |
| Voltage: 230V AC, 50/60Hz | IP66 Waterproof |
| Total Watts: 10W | T6 Temperature Rating |
| Luminous Intensity: > 2,000 cd +/- 25% | Â |
| Luminous Efficacy: - | Â |
| Lamp Life: 50,000+ Hours | Â |
| LED Color:Â Blue | Â |
| Color Rendering Index: - | Â |
| Lamp Type: - | Â |
| Lamp Base: - | Â |
| Replacement Lamp: - | Â |
| Beam Angle: 360° |  |
| Lighting Configuration: Flood Pattern | |
| Power Efficiency: - | |
| Power Factor: - | |
| Ambient Operating Temp Range: -40° C to +55°C | |
| Operating Temp Rating: T6 | Â |
| Housing Material: Die-cast Aluminum Alloy | Â |
| Housing Finish: Epoxy Resin Powder | Â |
| Lens Material: Borosilicate Glass | |
| Hardware Material: Stainless Steel | |
| Mounting: Surface - Mounting Bracket w/ (2) Mounting Holes | |
| Terminals: L1, N, PE | |
| Cable Entry: (1) M25 x 1.5 - Molded Plastic w/ Stopping Plug | |
| Cable Entry OD: 8-17mm |

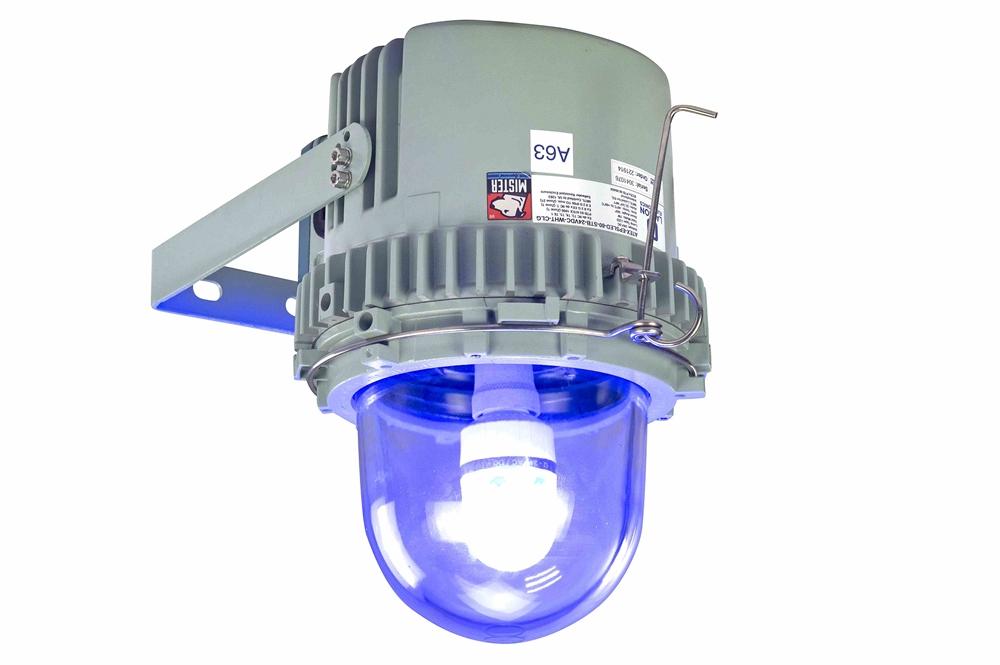

| The EPL-AE.EX-AVL-LED-10W-B-230V-R1 Hazardous Location LED Aviation Obstruction Light from Larson Electronics is a powerful lamp for ATEX/IECEx rated environments. This 10-watt blue fixture is compatible with 230V AC, 50/60Hz and offers 360 degrees of illumination. Constructed of die-cast aluminum alloy with an epoxy resin powder finish, the IP66 rated light is compatible with surface mounting applications. The EPL-AE.EX-AVL-LED-10W-B-230V-R1 is a durable blue LED L810 aviation light for hazardous locations and combustible sites. Equipped with a corrosion-resistant housing, this unit operates on 230V AC, 50/60 Hz. The 10-watt light features an expected lifespan of 50,000+ hours and offers > 2,000 cd +/- 25% luminous intensity. A 360-degree beam angle ensures high visibility during use. This blue LED luminary is constructed of die-cast aluminum alloy with an epoxy resin powder finish. Protected by a borosilicate toughened glass lens, the unit carries T6 and IP66 waterproof ratings. This LED L810 aviation light is ATEX/IECEx rated for Zones 1, 2, 21 and 22. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting. Wiring: Cable entries are facilitated by one M25 x 1.5 hub (molded plastic cable gland and stopping plug). Terminal connections include: L1, N and PE. Mounting: The EPL-AE.EX-AVL-LED-10W-B-230V-R1 is compatible with surface mounting installations. An included mounting bracket with two openings can be used to secure the light on flat surfaces. Suggested Applications: Hazardous locations, aviation lighting, helipads, obstruction lighting, military lighting systems and more.  |
