Explosion Proof Switchbox - 12" x 18" x 6" Int. Dimensions - C1D1 - Surface Mount - (12) Switches
Explosion Proof Switchbox - 12" x 18" x 6" Int. Dimensions - C1D1 - Surface Mount - (12) Switches
| EPL-AEB-12.18.6-12XSPST-6X0.75IN Explosion Proof Switch Box | Ratings/Approvals |
| Type: Explosion Proof Switchbox | Class I Divisions 1 & 2 Groups B, C & D |
| Internal Dimensions: 12.00"L x 18.00"W x 6.00"H | Class I Zones 1 & 2 Groups IIB & IIA |
| Weight: ~110 lbs | Class II Divisions 1 & 2 Groups E, F & G |
| Hubs: (6) 3/4" NPT Hubs | Class III |
| Hub Locations: (2) on South Side, (2) on East Side & (2) on West Side | NEMA 3, 4, 4X, 7 (B, C, D) 9 (E, F, G) |
| Switches: (12) Single Throw, Single Pole (SPST) Switches | |
| Switch Amp Ratings: 10A @ 125V; 5A @ 250V | |
| Mounting: Surface Mount | |
| Toll Free:Â 1-800-369-6671 | |
| Intl:Â 1-214-616-6180 | |
| *All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250* |

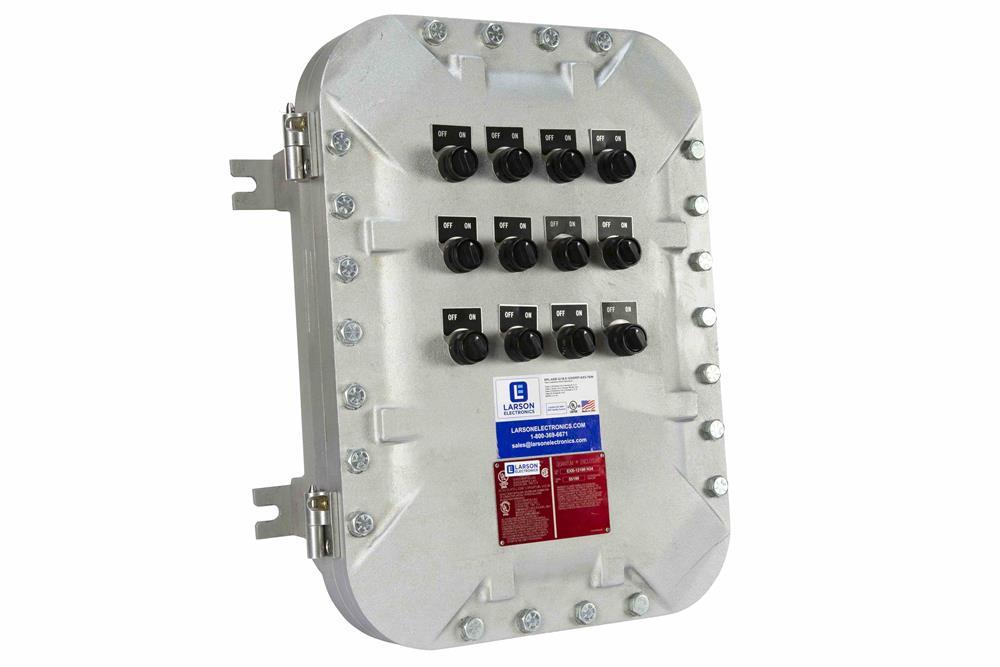

| Made in the USA The EPL-AEB-12.18.6-12XSPST-6X0.75IN from Larson Electronics is an Explosion Proof Switchbox that provides operators with a Class I and II, Divisions 1 and 2 cast aluminum switchbox provides twelve single throw, single pole (SPST) switches to energize NEMA starters and is designed to hold electrical equipment up to 12" by 18" by 6" in size. This explosion proof enclosure is ideal for indoor or outdoor applications where flammable vapors, gases, or dusts exist or stand the potential to exist. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The EPL-AEB-12.18.6-12XSPST-6X0.75IN explosion proof enclosure is made of cast aluminum, is equipped with stainless steel hinge and bolts, and includes a watertight gasket for a NEMA 4X protection rating. The internal cavity of this flameproof enclosure measures 12" in length by 18" in width by 6" in height. A removable backplate for easy mounting of equipment outside of the enclosure can be provided at an additional cost. Mounting is provided by four ears, two per side of the enclosure. The EPL-AEB-12.18.6-12XSPST-6X0.75IN is also equipped with six 3/4" NPT hubs. The hub locations are as follows: two (2) on the south side, two (2) on the east side and two (2) on the west side. Switches: The EPL-AEB-12.18.6-12XSPST-6X0.75IN includes twelve single throw, single pole (SPST) switches that are designed to allow operators to energize NEMA starters within hazardous locations. Each switch is clearly labeled for both on and off. The switches are rated for 10 amps at 125V and 5 amps at 250V. |
