Explosion Proof Station - C1D1, C2D1 - (3) Explosion Proof External Antennas - (2) 3/4" NPT Hubs
Explosion Proof Station - C1D1, C2D1 - (3) Explosion Proof External Antennas - (2) 3/4" NPT Hubs
| EPL-AEB-24.12.12-2X0.75S-1XWA.N-2XWA.DIN Explosion Proof Station | Features/Ratings |
| Internal Dimensions: 24" L x 24" W x 10" H | Class I, Div 1&2 Groups B, C, D |
| External Dimensions: 28.38" x 28.38" x 14.19" | Class II, Div 1&2 Groups E, F, G |
| Explosion Proof Antennas: (2) EXP External Antennas w/ 4.3-10 Mini DIN Connectors [One per Side], (1) EXP External Antenna w/ N-Type Connectors [Center/Top] | IP66 Weatherproof |
| Mounting: Surface Mount | Mounting Plate |
| Hubs: (2) 3/4" NPT - Bottom | |
| Â | |
| Â | |
| Â | |
| Â | |
| Â | Fax:Â 1-903-498-3364 |
| Â | |
| *All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250* |

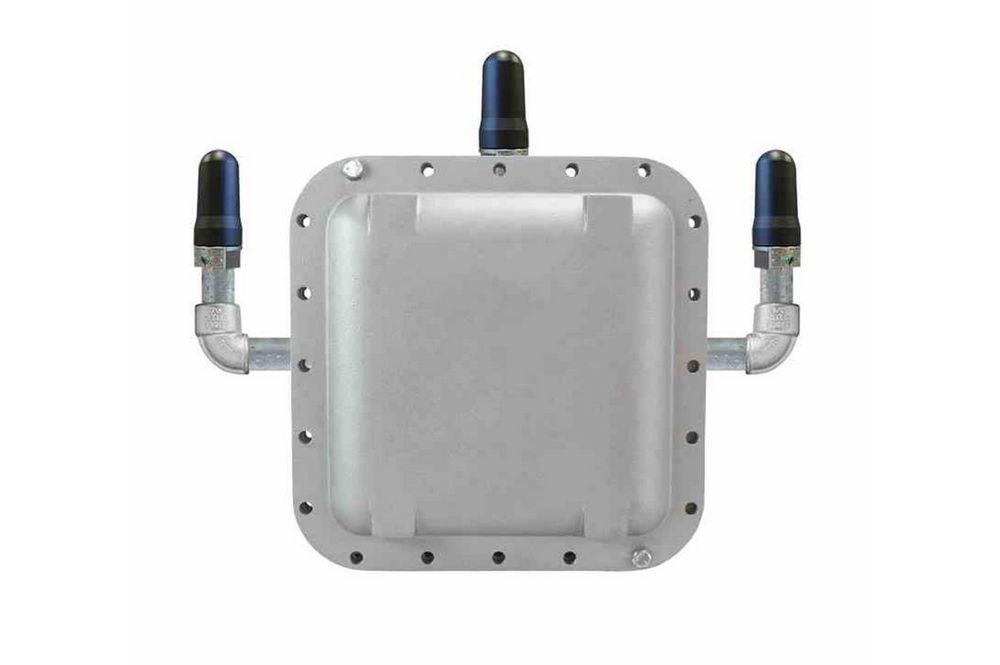

| Made in the USA The Larson Electronics EPL-AEB-24.12.12-2X0.75S-1XWA.N-2XWA.DIN Explosion Proof Station is designed for Class I, Division 1 & 2 and Class II, Division 1 & 2 work sites. The unit contains three, explosion proof antennas and one, mounting plate for modems or LTE radios. Constructed of copper-free aluminum, the station features an IP66 weatherproof rating. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The EPL-AEB-24.12.12-2X0.75S-1XWA.N-2XWA.DIN is an explosion proof station for communication in combustible environments. This unit is equipped with two, explosion proof antennas with 4.3-10 mini DIN connectors for modem antennas. The components are located at each side of the enclosure. One, explosion proof antenna with N-Type connectors for GPS connectors, which is located at the center top of the enclosure, is also available. The explosion proof station is constructed of cast aluminum, with stainless steel hinge and bolts. The internal cavity of this flameproof enclosure measures 24" in length by 24" in width by 10" in height. Mounting/Hubs: The EPL-AEB-24.12.12-2X0.75S-1XWA.N-2XWA.DIN mounts on flat surfaces or walls via four ears (two per side of the enclosure). Operators are provided access to one mounting plate for securing modems or LTE radios. This explosion proof station features two, 3/4" NPT hubs located on the south side of the enclosure. The hubs can be used to bring in network cabling and power connections. Applications: Industrial facilities, hazardous locations, offshore refineries, marine locations, indoor/outdoor spaces, agricultural sites, ship yards, docks and more. |
