Explosion Proof Enclosure - 24" x 36" x 10" Int. Dims. - C1D1 - 9" x 9" Viewing Lens - NEMA 4X

LARSON ELECTRONICSSKU: PL3-EPL-AEB-24.36.10-VW
filler

Precio:
Precio de venta$24,960.00

Descripción

Specifications / Additional Information
EPL-AEB-24.36.10-VW Explosion Proof Enclosure Features/Ratings
Internal Dimensions: 24" L x 36" W x 10" H Class I, Division 1 & 2, Explosion Proof
Viewing Lens Dimensions: 9" x 9" Class II, Division 1 & 2, Explosion Proof
Weight: -
Mounting: Surface Mount


  Intl: 1-214-616-6180


*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '

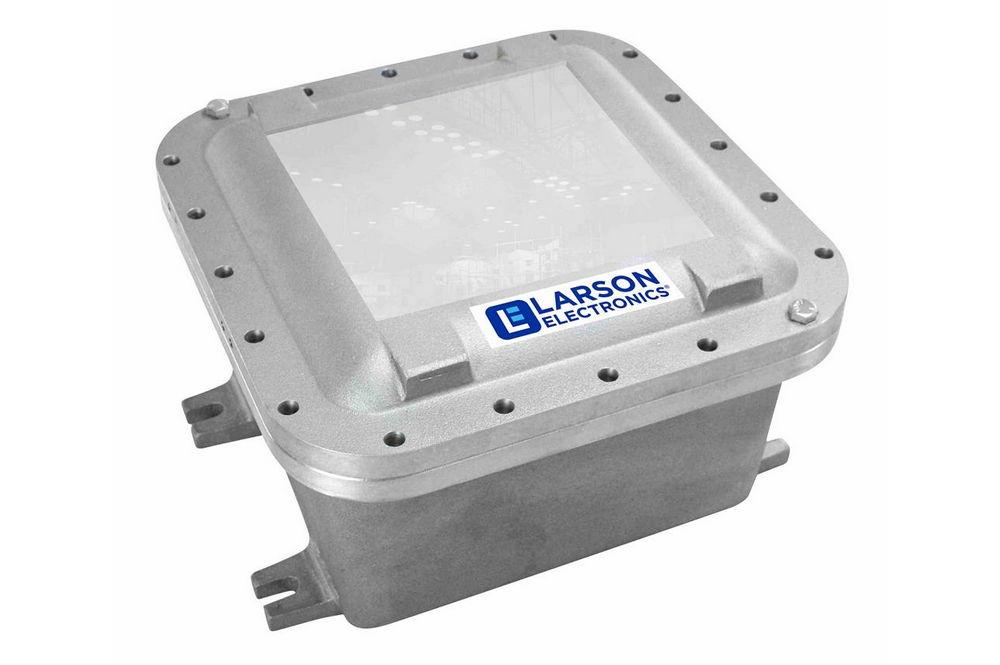

Made in the USA The Larson Electronics EPL-AEB-24.36.10-VW explosion proof enclosure provides operators with a Class I and II, Division 1 and 2 cast aluminum enclosure designed to hold electrical equipment up to 24" by 36" by 10" in size. A 9" x 9" square viewing lens at the cover of the unit allows operators to view digital readings with ease. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The EPL-AEB-24.36.10-VW explosion proof enclosure is made of cast aluminum, is equipped with stainless steel hinge and bolts, and includes a watertight gasket for a NEMA 4X protection rating. The internal cavity of this flameproof enclosure measures 24" in length by 36" in width by 10" in height. A removable backplate for easy mounting of equipment outside of the enclosure can be provided at an additional cost. Mounting is provided by four ears, two per side of the unit. This explosion proof enclosure features a 9" x 9" square viewing lens at the cover. The clear lens allows operators to view digital readings for devices or meters inside the unit. Applications: Chemical processing, transmitters, agricultural sites, grain storage centers, flow meters, flammable work sites, oil and gas facilities, gas analyzers, food processing plants, manufacturing, warehouses and more.
