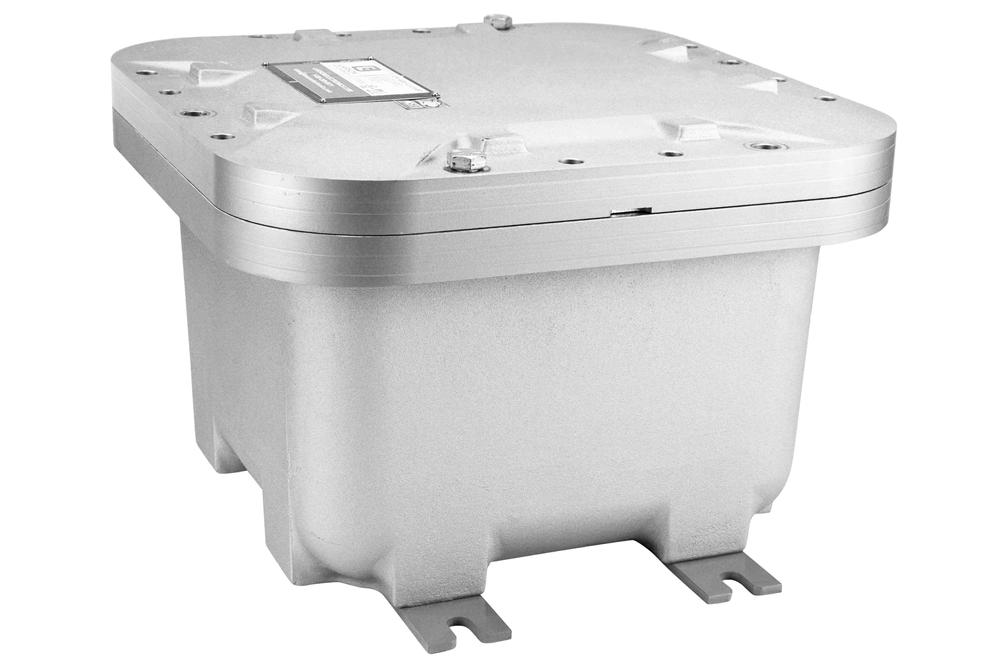

Explosion Proof Enclosure - C1D1 - 24'' x 36'' x 8'' Internal Dims - Hinges/Surface Mount - (31) Hubs

LARSON ELECTRONICSSKU: PL3-EPL-AEB-24.36.8-BP-HG-M1
filler

Precio:
Precio de venta$47,936.00

Descripción

Specifications / Additional Information
EPL-AEB-24.36.8-BP-HG-M1 Explosion Proof Enclosure Features/Ratings
Listing: NRTL Listed for United States, Canada Listed for NEC and CEC
Internal Dimensions: 36" (914mm) L x 24" (610mm) H x 8" ( 203mm) D Class I, Divisions 1 & 2, Groups B**, C, D
External Dimensions: 29.25'' (742.95mm) L x 41.25'' (1047.75mm) H x 12.40'' (314.96mm) D Class I, Zones 1 & 2, Groups IIB+H2, IIA
Pan Dimensions: 23'' (584.2mm)L x 35'' (889.0mm)W Class II, Divisions 1 & 2, Groups E, F, G
Available Dimensions for Devices: 24'' (609.6mm) L x 36'' (914.4mm) H x 8.12'' (206.25mm) D Class III, Divisions 1 & 2
Weight: 531 lbs (241.07 kgs) NEMA 3R, 4, 7, 9
Maximum Conduit Size: 5" NPT NRTL Certified to UL 886
Maximum Operators on Lid: 77 (11 rows of 7) NRTL Certified to UL 698
Total Hub Quantity: 31 NRTL Certified to UL 1203
Lid (Top) Hubs: 0 NRTL Certified to CSA C22.2 No 30
North Side Hubs: (7) 3/4"-14 NPT (24" Side, Section B-B)
South Side Hubs: (7) 3/4"-14 NPT (24" Side, Section D-D)
East Side Hubs: (3) 1"-11.5 NPT, (5) 3/4"-14 NPT (36" Side, Section C-C) **Conduit seals required within 18" for Group B applications
West Side Hubs: (2) 1"-11.5 NPT, (7) 3/4"-14 NPT (36" Side, Section A-A)
Bottom (Back/Base) Hubs: 0
Conduit: Operator Provided
Operating Window: N/A
Hinges Included: Yes at South Side of Enclosure Only (24" Side, Section D-D)
Hinges Material: N/A
Internal Mounting Pan Included: Yes, Aluminum
Internal Mounting Pan Taps: N/A
Internal Mounting Pan Material: N/A
Internal Mounting Pan Dimensions: N/A
Internal Grounding Lug: N/A
Breather Plug: N/A
Drain Plug: N/A
Suggested Operator Series: Extended Length
Ambient Operating Temp Range: -30° C to +85°C
Operating Temp Rating: T5/T6 Rated
Enclosure Material: Copper Free Cast Aluminum (less than 4/10 of 1%)
Hardware Material: Zinc Plated Steel
Enclosure Finish: Aluminum Lacquer Paint; Custom Available
Mounting: Surface Mount Legs
Mounting Leg Height: 0.25"
Mounting Dimensions Height: 31.56'' (801.63mm) Center to Center Toll Free: 1-800-369-6671
Mounting Dimensions Width: 27.56'' (700.03mm) Center to Center
Shipping Weight: 591 lbs
Shipping Dimensions: 48"L x 48"W x 21"H
*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '
The EPL-AEB-24.36.8-BP-HG-M1 from Larson Electronics is an Explosion Proof Enclosure that provides operators with a Class I and II, Divisions 1 and 2 cast aluminum enclosure designed to hold electrical equipment up to 36" by 24" by 8" in size. This explosion proof enclosure is ideal for indoor or outdoor applications where flammable vapors, gases, or dusts exist or stand the potential to exist. Operators may access an internal back plate and a total of 31 hubs on the unit. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The EPL-AEB-24.36.8-BP-HG-M1 explosion proof enclosure is made of cast aluminum, equipped with steel bolts and includes a weatherproof gasket for a NEMA 3R / NEMA 4 protection rating. This hazardous location device enclosure box is NEMA 7 (Groups B, C, and D) and NEMA 9 (Groups E, F, and G) rated. The internal cavity of this flameproof enclosure measures 36" in length by 24" in width by 8" in height. An aluminum internal back plate is available inside this unit. The south side of the enclosure (24 inch side, section D-D) contains hinges. The EPL-AEB-24.36.8-BP-HG-M1 explosion proof enclosure has a maximum input/output conduit size of 5" NPT. The enclosure contains the following hubs: (7) 3/4"-14 NPT hubs on north side - 24 inch side (section B-B), (7) 3/4"-14 NPT hubs on south side - 24 inch side (section D-D), (3) 1"-11.5 NPT hubs + (5) 3/4"-14 NPT hubs on east side - 36 inch side (section C-C) and (2) 1"-11.5 NPT hubs + (7) 3/4"-14 NPT hubs on west side - 36 inch side (section A-A). Customized conduit taps can be factory drilled using Larson Electronics CNC machines at an additional cost. The lid of the enclosure allows for a maximum of 77 extended operator devices (switches, push buttons, indicator lights, etc) in a configuration of 11 rows of 7. Customized boxes with selected operators can be factory installed at customer's request. This explosion proof enclosure is designed to house a wide range of compact electronics, control stations, meters, relays, starters, circuit breakers, terminal blocks and industrial equipment, for safe use in combustible work sites. Other applications include systems requiring junction, pull and/or splice boxes.
Click Photos to Enlarge
Click To Enlarge Click To Enlarge
Larson Electronics can customize each unit with drilled and tapped operator hubs and/or conduit hubs per customer request. Please view the above and below images for orientation. When looking at the top cover (labeled Lid), all four sides are labeled for the orientation when looking at the Lid. All hubs are CNC machined for precision. Please see below specifications table for included taps and dimensional drawing for exact locations.
Click To Enlarge Click To Enlarge
Construction: Each unit in the EPL-AEB series is certified to NEC standards for United States and CEC Canada. We offer an ATEX/IEC Ex model for global applications (ATEX-EPL-AEB series). These explosion proof enclosures are NEMA 3R rated, for indoor and outdoor use and provide a degree of protection against dirt, water, and ice. NEMA 4X equipment can be equipped upon request. NEMA 4X models include all stainless steel external hardware. Operator lid hinges can be fitted on the enclosure for regular opening and closing. Breather plugs, drain plugs, and grounding lugs can be added at customer request. Customization: Larson Electronics can customize this explosion proof enclosure for compatibility with existing systems, assemblies, work flows and processes or assist in designing units for new installation. We can add indicator lights, windows, hinges, operator handles, push button switches, momentary push button switches, emergency stop push buttons, selector switches, on/off switches, terminal blocks, relays, PLCs, mounting pans and more. Customized labels are also available for each operator in order to meet various requirements. Unless otherwise specified in the specification tables and drawing, each unit comes without factory conduit hub taps. Conduit openings can be tapped on all sides and back of the explosion proof enclosure. Tapping of conduit hubs is facilitated at Larson Electronics using a CNC machine for precise cutting. Larson Electronics offers customization on conduit opening size and locations. Taps include female NPT (National Pipe Thread), female BSPT (British Standard Pipe Thread), and Metric ISO thread. Please contact us for specific requirements. Additional equipment can be provided from factory, including nipples, unions, seal-offs, and operator devices. Suggested Applications: The EPL-AEB series of explosion proof enclosures are approved for use within indoor and outdoor environments where flammable or combustible gases, vapors, dusts, fibers, and flying exist or stand the potential to exist, and is ideal for a wide variety of applications. Applications include but not limited to aircraft maintenance, alcohol processing, aerospace, chemical manufacturing, coke processing, cold storage, compressed natural gas (CNG) facilities, cranes, cryogenics, distilleries, food processing, fuel storage, gas processing plants, grain processing, laboratories, liquefied natural gas (LNG) facilities, liquid propane gas (LPG), machine operations, manufacturing, marine vessels, methane production, mining, offshore, oil drilling rigs, oil refineries, paint spray booths, paper processing, petrochemical, petroleum refineries, pharmaceuticals, power plants, production refineries, sand blast cabinets, sewage and septic tanks, shipyards, solvent and cleaning areas, storage facilities, tank farms, tankers, textile, washdown areas, waste treatment plants, and woodworking. .
