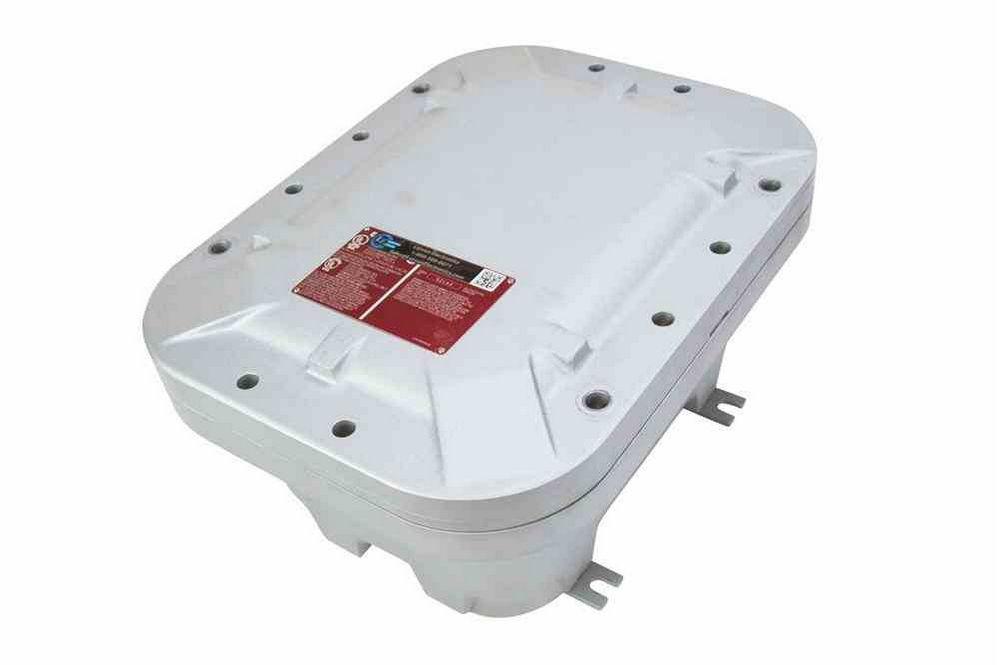

Explosion Proof Enclosure, C1D1, 8'' x 12'' x 6'' Internal Dims, Surface Mount, N3R

Explosion Proof Enclosure, C1D1, 8'' x 12'' x 6'' Internal Dims, Surface Mount, N3R

Precio habitual $3,160.00 CAD
Precio habitual Precio de oferta $3,160.00 CAD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Specifications / Additional Information
EPL-AEB-8.12.6 Explosion Proof Enclosure Features/Ratings
Listing: United States, Canada Listed for NEC and CEC
Internal Dimensions: 12" (305mm) L x 8" (203mm) H x 6" ( 152mm) D Class I, Divisions 1 & 2, Groups B**, C, D
External Dimensions: 13.25'' (336.55mm) L x 17.25'' (438.15mm) H x 8.70'' (220.98mm) D Class I, Zones 1 & 2, Groups IIB+H2, IIA
Pan Dimensions:7'' (177.8mm)L x 11'' (279.4mm)W Class II, Divisions 1 & 2, Groups E, F, G
Available Dimensions for Devices: 8'' (203.2mm) L x 12'' (304.8mm) H x 6.38'' (161.54mm) D Class III, Divisions 1 & 2
Weight: 47 lb (21.34 kg) NEMA 3R, 4, 7, 9
Maximum Conduit Size: 3€ NPT UL 886 Certified
Maximum Operators on Lid: 12 (4 rows of 3) UL 698 Certified
Total Hub Quantity: 0 UL 1203 Certified
Lid (Top) Hubs: 0 CSA C22.2 No 30 Certified
North Side Hubs: 0
South Side Hubs: 0
East Side Hubs: 0 **Conduit seals required within 18" for Group B applications
West Side Hubs: 0
Bottom (Back/Base) Hubs: 0 Replacement Internal Mounting Pan: %PAN%
Conduit: Operator Provided
Operating Window: N/A
Hinges Included: No
Hinges Material: N/A
Internal Mounting Pan Included: N/A
Internal Mounting Pan Taps: N/A
Internal Mounting Pan Material: N/A
Internal Mounting Pan Dimensions: N/A
Internal Grounding Lug: N/A
Breather Plug: N/A
Drain Plug: N/A
Suggested Operator Series: Long Length
Ambient Operating Temp Range: -30° C to +85°C
Operating Temp Rating: T5/T6 Rated
Enclosure Material: Copper Free Cast Aluminum (less than 4/10 of 1%)
Hardware Material: Zinc Plated Steel
Enclosure Finish: Aluminum Lacquer Paint; Custom Available
Mounting: Surface Mount Legs
Mounting Leg Height: 0.25"
Mounting Dimensions Height: 7.82'' (198.63mm) Center to Center Toll Free: 1-800-369-6671
Mounting Dimensions Width: 10.38'' (263.65mm) Center to Center
Shipping Weight: 107 lb
Shipping Dimensions: 48"L x 48"W x 21"H
*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '
Made in the USA The Larson Electronics EPL-AEB-8.12.6 explosion proof enclosure provides operators with a Class 1 and 2, Division 1 and 2 cast aluminum enclosure designed to hold electrical equipment up to 8" by 12" by 6" in size. This explosion proof enclosure is ideal for indoor or outdoor applications where flammable vapors, gases, or dusts exist or stand the potential to exist. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The EPL-AEB-8.12.6 explosion proof enclosure is made of cast aluminum, is equipped with stainless steel hinge and bolts, and includes a watertight gasket for a NEMA 4X protection rating. The internal cavity of this flameproof enclosure measures 8" in length by 12" in width by 6" in height. A removable backplate for easy mounting of equipment outside of the enclosure can be provided at an additional cost. LarsonElectronics.com can build enclosures to your specifications. If this model does not meet your needs, please contact us at 1-800-369-6671 or .
