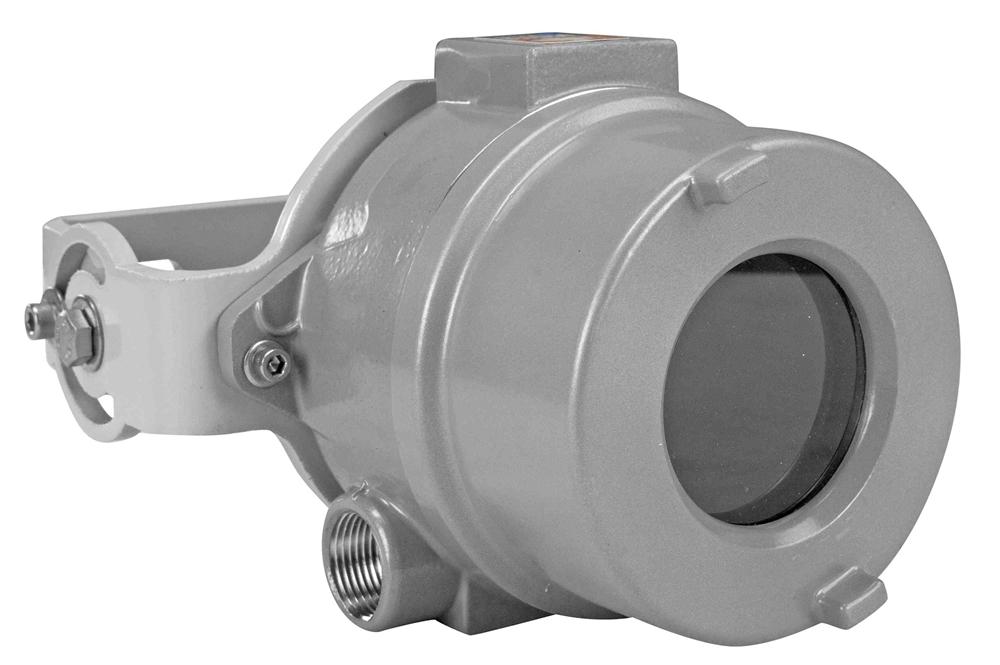

Explosion Proof Device Box Instrument Enclosure - Class I, II, III Div 1 & 2 - Trunnion - Glass Lens

LARSON ELECTRONICSSKU: PL3-EPL-AED-1X-GL-TRN
filler

Precio:
Precio de venta$1,076.00

Descripción

Specifications / Additional Information
EPL-AED-1X-GL-TRN Explosion Proof Device Box Instrument Enclosure w/ Trunnion Mount Ratings/Approvals
Device Type: Explosion Proof Instrument Enclosure Listed for United States, Canada, Europe, Asia
External Dimensions: 4-17/32"H x 6-1/8"W Class I, Div. 1 & 2, Groups B, C, D
Internal Dimensions: 3-3/32""H x 4-1/4"ID Class I, Zones 1 & 2, Groups IIB+H2, IIA
Internal Volume: 31 cu. in. Class II, Div. 1 & 2, Groups E, F ,G
Lens Opening: 2-9/32" Class III, Div. 1 & 2
Weight: 3 lbs NEMA Type 3, 4, 4X, 7 (B,C,D), 9 (E,F,G)
Cover Material:Copper-free Aluminum Alloy ATEX Ex II 2 G / D
Sealing Gasket: Neoprene O-ring IECEx db IIC Gb
Ground Screw Material: Zinc Plated Steel w/ Green Dye IECEx tb IIC Db IP66
Allen Head Cover Screw Material: Cadmium Plated Steel
Enclosure Finish: Silver Powder Epoxy Paint, Electrostatically Applied
Glass Lens Material: 3/8" Thick Tempered Glass
Mounting: Trunnion Mount Bracket Toll Free: 1-800-369-6671
Design: Single Cover Box Only Intl: 1-903-270-1187
Wiring Hubs: Offset Feed-thru (3/4" NPT) E-mail:
' Product Overview '
The EPL-AED-1X-GL-TRN from Larson Electronics is an Explosion Proof Device Box Instrument Enclosure with Trunnion Mount that houses compact instruments or devices used in hazardous locations, confined spaces and industrial facilities. The EPL-AED-1X-GL-TRN is Class I, Divisions 1 & 2, Groups B, C, D, Class I, Zones 1 & 2, Groups IIB+H2, IIA, Class II, Divisions 1 & 2, Groups E, F ,G and Class III Divisions 1 & 2 rated for hazardous areas and is listed for use worldwide including the United States, Canada, Europe and Asia. This explosion proof instrument enclosure may be used to comply with domenstic and international code requirements, while providing protection for operators and nearby workers. The EPL-AED-1X-GL-TRN offers protection from explosive hazards and ignitions, dust, harsh weather and rough treatment (tampering). This unit is cast from a copper-free aluminum alloy for durability. Neoprene 0-rings are provided with the enclosure to assure water resistance in NEMA 4/IP66 conditions. For maximum use of interior space, the explosion proof device box comes with offset feed-thru conduit openings (3/4" NPT). An internal ground screw is conveniently located away from the mounting components. The enclosure is finished with silver powder epoxy paint (electrostatically applied). This explosion proof device box features a trunnion mount for flexible mounting options. There is also a cast on side boss for optional machining, external mounting lugs on cover for seamless removal and tightening and an optional external ground screw. The ground screws are made out of zinc plated steel with green dye, while the allen head cover screw is constructed of cadmium plated steel. This instrument enclosure comes with a 3/8" thick tempered glass lens cover. The explosion proof device box is rated NEMA Type 3, 4, 4X, 7 (B,C,D) and 9 (E,F,G) and designed to withstand the rigors of demanding environmental and operating conditions while remaining robust and easy to use. Applications: Flow measurement devices, temperature monitors, two-wire transmitters, gas detectors, Ph analyzers, pressure gauges, level detectors, H2S monitors, transducers, pressure switches and other compact industrial instruments/devices.
