EPL-AEH-SS-16.16.8-N4X-3XM25S Explosion Proof Junction Box | Ratings |
Listing: ATEX/IECEx Rated | Class I, Division 2, Groups A,B,C,D |
Box Dimensions: 16" x 16" x 8" | Class I, Zones 1 & 2, Groups IIA,IIB,IIC |
Mounting Lug Dimensions: 14.69" x 17.63" | Class II, Division 2, Groups E,F,G |
Weight: 27 lbs | Class III, Divisions 1 & 2 |
Max Power: 20W | ATEX/IECEx Rated |
Ground/Earthing:Â Studs @ Cover and Through Wall | Ex e IIC Gb, Ex i IIC Gb |
Body and Cover Material:Â 316 Stainless Steel (Brush Finished) | Ex tb IIIC Db IP66 |
Cover Type:Â Hinge/Latched | Ex tb / Zone 21&22 AEx tb IIIC |
Latch: Quarter Turn 316 Stainless Steel | T80C /T100C/T130C Db IP66 |
Gasket:Â One Piece High Temperature Closed Cell Silicone | NEMA Type 3, 4 & 4X |
Knockouts:Â (3) M25 Knockouts on South Side | Special Orders - Requirements |
Mounting:Â Wall/Surface Mount via Bi-directional Mounting Lugs | |
Maximum Conduit Size:Â 4" NPT | |
 | |
 | |
 |
function MM_openBrWindow(theURL,winName,features) { //v2.0
window.open(theURL,winName,features);
}

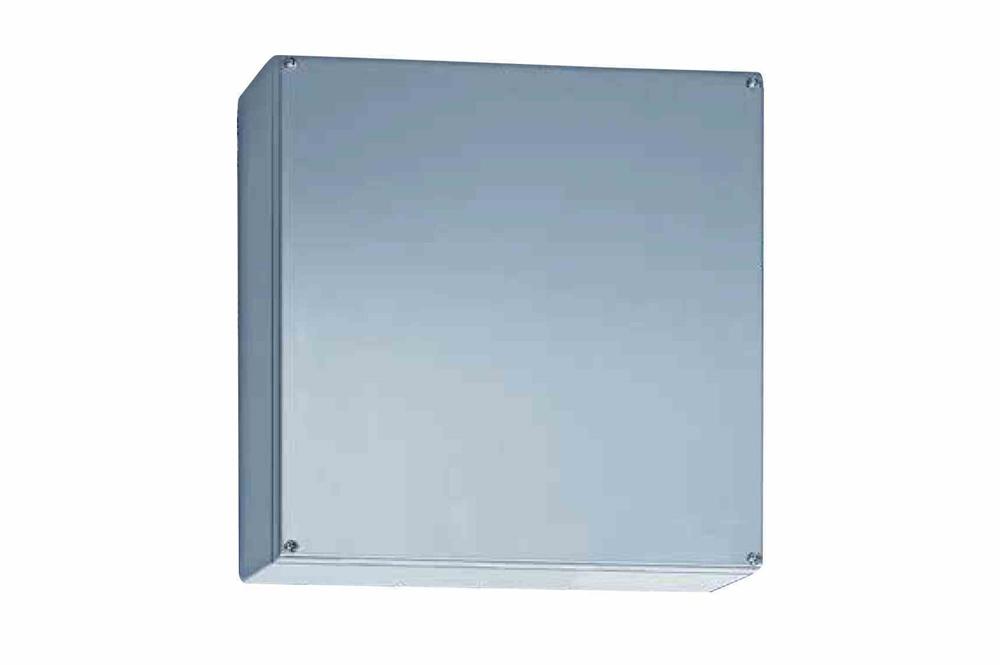

The EPL-AEH-SS-16.16.8-N4X-3XM25S from Larson Electronics is a Stainless Steel Explosion Proof Junction Box that provides operators with a rugged enclosure that is designed to hold and protect equipment in flammable environments. This explosion proof enclosure is ideal for ATEX/IECEx rated sites and indoor or outdoor applications where flammable vapors, gases, or dusts exist or stand the potential to exist. The EPL-AEH-SS-16.16.8-N4X-3XM25S is equipped with three M25 knockouts on the south side of the junction box. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The EPL-AEH-SS-16.16.8-N4X-3XM25S explosion proof enclosure is made of 316 stainless steel and features Type 4X and IP66 protection ratings. Equipped with a hinged and latched cover along with (3) M25 knockouts on the south side, this ATEX/IECEx rated junction box measures 16" x 16" x 8". Ground/earthing studs are available on cover and through the wall of the unit. Operators are provided access to bi-directional mounting lugs at the back of the stainless steel box for wall or surface mounting installations. This unit accommodates conduit sizes up to 4" NPT (maximum). Applications: Offshore rigs, sewage and wastewater treatment plants, coal plants, gas facilities and any other hazardous location where an explosion proof enclosure is needed. |
