Stainless Steel Hazardous Location Junction Box - C1D2 ATEX/IECEx - 20" x 16" x 8" - (3) 3/4" Knockouts
Stainless Steel Hazardous Location Junction Box - C1D2 ATEX/IECEx - 20" x 16" x 8" - (3) 3/4" Knockouts
| EPL-AEH-SS-20.16.8-N4X-3X0.75S Explosion Proof Junction Box | Ratings |
| Listing: ATEX/IECEx Rated | Class I, Division 2, Groups A,B,C,D |
| Box Dimensions: 20" x 16" x 8" | Class I, Zones 1 & 2, Groups IIA,IIB,IIC |
| Mounting Lug Dimensions:Â 14.69" x 17.63" | Class II, Division 2, Groups E,F,G |
| Weight:Â 31 lbs | Class III, Divisions 1 & 2Â |
| Max Power: 34W | ATEX/IECEx Rated |
| Ground/Earthing: Studs @ Cover and Through Wall | Ex e IIC Gb, Ex i IIC Gb |
| Total Quantity: 3 | Ex tb IIIC Db IP66 |
| Lid (Top) Knockouts: 0 | Ex tb / Zone 21&22 AEx tb IIIC |
| North Side Knockouts: 0 | T80C /T100C/T130C Db IP66 |
| South Side Knockouts: (3) 3/4" knockouts (spaced evenly) | NEMA Type 3, 4 & 4X |
| East Side Knockouts: 0 | |
| West Side Knockouts: 0 | |
| Body and Cover Material:Â 316 Stainless Steel (Brush Finished) | |
| Cover Type:Â Hinge/Latched | |
| Latch: Quarter Turn 316 Stainless Steel | Phone: 1-214-616-6180 |
| Gasket:Â One Piece High Temperature Closed Cell Silicone | Toll Free:Â 1-800-369-6671 |
| Mounting:Â Wall/Surface Mount via Bi-directional Mounting Lugs | Â Fax:Â 1-903-498-3364 |
| Maximum Conduit Size:Â 4" NPT | Â E-mail:Â |

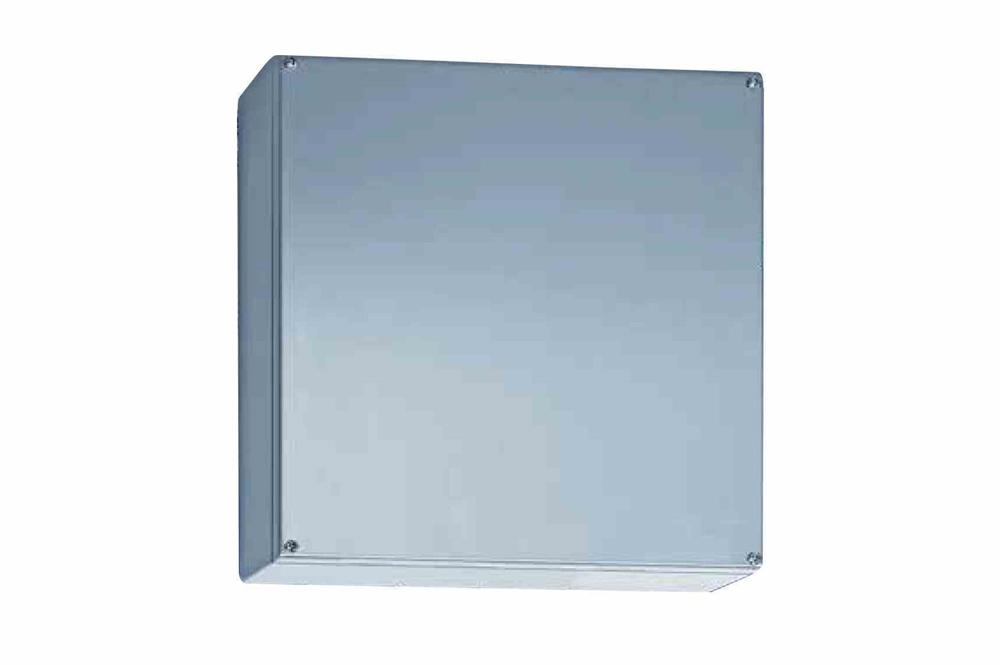

| The Larson Electronics EPL-AEH-SS-20.16.8-N4X-3X0.75SÂ Stainless Steel Explosion Proof Junction Box provides operators with a rugged enclosure that is designed to hold and protect equipment in flammable environments. This explosion proof enclosure is ideal for ATEX/IECEx rated sites and indoor or outdoor applications where flammable vapors, gases, or dusts exist or stand the potential to exist. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The EPL-AEH-SS-20.16.8-N4X-3X0.75SÂ explosion proof enclosure is made of 316 stainless steel and features Type 4X and IP66 protection ratings. Equipped with a hinged and latched cover, this ATEX/IECEx rated junction box measures 20" x 16" x 8". Ground/earthing studs are available on cover and through the wall of the unit. Operators are provided access to bi-directional mounting lugs at the back of the stainless steel box for wall or surface mounting installations. This unit accommodates conduit sizes up to 4" NPT (maximum). Hubs: This unit is equipped with three NPT knockouts in the following locations on the hazardous location enclosure: (3) 3/4" NPT hub on the south side of the enclosure (spaced evenly). Knockouts are ready for hubs to be installed. Conduit hubs are not installed or included. Applications: Offshore rigs, sewage and wastewater treatment plants, coal plants, gas facilities and any other hazardous location where an explosion proof enclosure is needed. Â |
