Stainless Steel Hazardous Location Junction Box - C1D2 - Flanged Backplate Mount - Type 4X

LARSON ELECTRONICSSKU: PL3-EPL-AEH-SS-8.12.6-N4X
filler

Precio:
Precio de venta$1,130.00

Descripción

Specifications / Additional Information
EPL-AEH-SS-8.12.6-N4X Explosion Proof Junction Box Ratings
Dimensions: 11.81" x 7.87" x 5.91" Class I, Division 2, Groups A,B,C,D
Weight: - Class I, Zones 1 & 2, Groups IIA,IIB,IIC
Earth Connection: 1/4" External Class II, Division 2, Groups E,F,G
Body and Cover Material: 316 Stainless Steel (Brush Finished) Class III, Divisions 1 & 2
Cover Type: Screw ATEX/IECEx Rated
Mounting: Wall/Surface Mount via Flanged Backplate Ex e IIC Gb, Ex i IIC Gb
  Ex tb IIIC Db IP66
  Ex tb / Zone 21&22 AEx tb IIIC
  T80C /T100C/T130C Db IP66
  NEMA Type 3, 4 & 4X

' Product Overview '

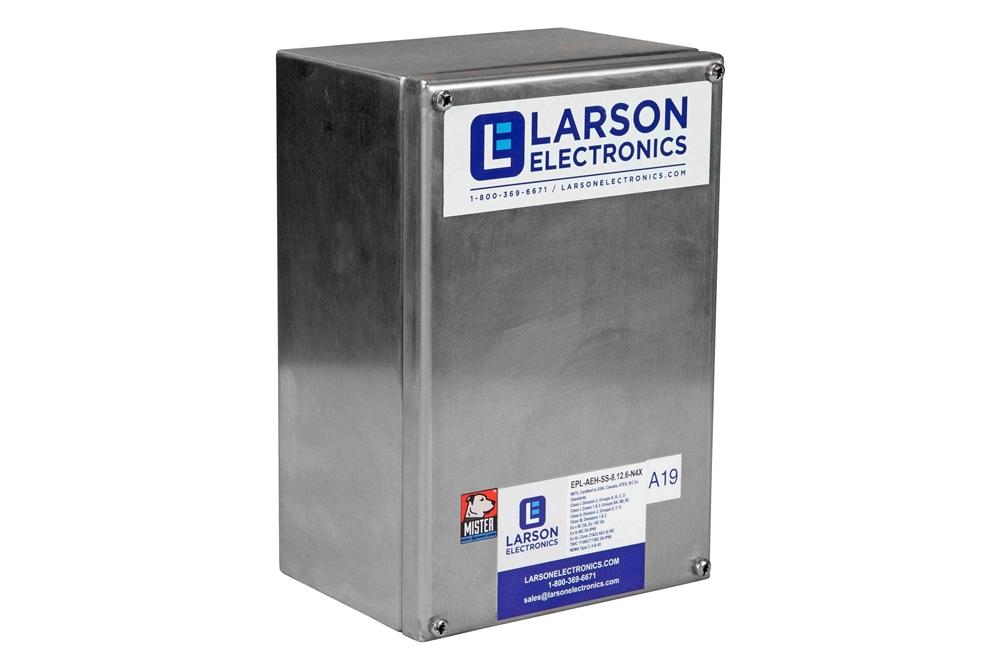

The Larson Electronics EPL-AEH-SS-8.12.6-N4X Stainless Steel Explosion Proof Junction Box provides operators with a rugged enclosure that is designed to hold and protect equipment in flammable environments. This explosion proof enclosure is ideal for Class I, Division 2 sites and indoor or outdoor applications where flammable vapors, gases, or dusts exist or stand the potential to exist. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The EPL-AEH-SS-8.12.6-N4X explosion proof enclosure is made of 316 stainless steel and features a Type 4X protection rating. Equipped with a screw cover, this Class I, Division 2 junction box measures 11.81" x 7.87" x 5.91". A 1/4" external earth protection is available on the unit. Operators are provided access to a flanged backplate for easy mounting on walls or surfaces. Applications: Offshore rigs, sewage and wastewater treatment plants, coal plants, gas facilities and any other hazardous location where an explosion proof enclosure is needed.
