Stainless Steel Hazardous Location Junction Box - C1D2 - Flanged Backplate Mount - Type 4X - (6) Total Hubs
Stainless Steel Hazardous Location Junction Box - C1D2 - Flanged Backplate Mount - Type 4X - (6) Total Hubs

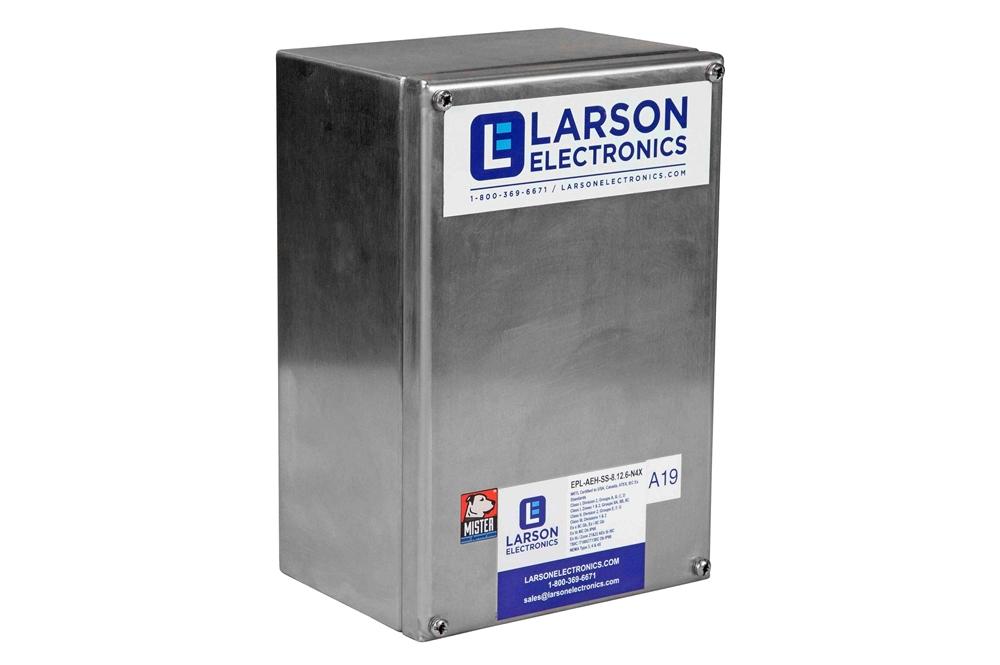

| EPL-AEH-SS-8.12.6-N4X-MOD1 Explosion Proof Junction Box | Ratings |
| Dimensions: 11.81" x 7.87" x 5.91" | Class I, Division 2, Groups A,B,C,D |
| Weight: - | Class I, Zones 1 & 2, Groups IIA,IIB,IIC |
| Earth Connection: 1/4" External | Class II, Division 2, Groups E,F,G |
| Body and Cover Material: 316 Stainless Steel (Brush Finished) | Class III, Divisions 1 & 2 |
| Cover Type: Screw | ATEX/IECEx Rated |
| Hubs: (6) Total - (4) 22mm Hubs on Back; (1) 22mm Hub & (1) 28mm Hub on Bottom | Ex e IIC Gb, Ex i IIC Gb |
| Mounting: Wall/Surface Mount via Flanged Backplate | Ex tb IIIC Db IP66 |
| Â | Ex tb / Zone 21&22 AEx tb IIIC |
| Â | T80C /T100C/T130C Db IP66 |
| Â | NEMA Type 3, 4 & 4X |
| Â |
| The Larson Electronics EPL-AEH-SS-8.12.6-N4X-MOD1 Stainless Steel Explosion Proof Junction Box provides operators with a rugged enclosure that is designed to hold and protect equipment in flammable environments. This explosion proof enclosure is ideal for Class I, Division 2 sites and indoor or outdoor applications where flammable vapors, gases, or dusts exist or stand the potential to exist. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The EPL-AEH-SS-8.12.6-N4X-MOD1 explosion proof enclosure is made of 316 stainless steel and features a Type 4X protection rating. Equipped with a screw cover, this Class I, Division 2 junction box measures 11.81" x 7.87" x 5.91". A 1/4" external earth protection is available on the unit. Operators are provided access to a flanged backplate for easy mounting on walls or surfaces. Hubs: The EPL-AEH-SS-8.12.6-N4X-MOD1 is equipped with six hubs. There are (4) 22mm hubs on the back of the unit. On the bottom of the unit are (1) 22mm hub and (1) 28mm hub. Applications: Offshore rigs, sewage and wastewater treatment plants, coal plants, gas facilities and any other hazardous location where an explosion proof enclosure is needed. |
