Explosion Proof Enclosure w/ Window - C1D1 - Purge System, 304 Stainless Steel w/ Weatherproof Seal - Surface Mount

LARSON ELECTRONICSSKU: PL3-EPL-AEP.X-SS-8.32.6-VW-7X30
filler

Precio:
Precio de venta$50,872.00

Descripción

Specifications / Additional Information
EPL-AEP.X-SS-8.32.6-VW-7X30 Explosion Proof SS Enclosure Ratings
Listing: NRTL Listed for United States and Canada Class I, Division 1 & 2, Groups A,B,C,D
Enclosure Dimensions: 32"W x 8"H x 6"D NRTL Listed to NFPA 496
Viewing Window Dimensions: 7" x 30" Type Z Purge and Pressure System
Weight: -
Air Pressure Requirement: 0.25-0.5" of Water (0.01 PSI)
Enclosure Protection Vent: 90 Degrees
Air Line: Customer Provided
Pressurization Controls/Valves: Valve Stem, Valve Key Lock, Injection Pressure Indicator, Enclosure Pressure Indicator
Materials: 304 Stainless Steel w/ Weatherproof Seal (Enclosure); Aluminum/316 Stainless Steel (Pressurization Device); Polycarbonate (Window)
Door Type: Single Door w/ Concealed Hinges
Mount: Surface Mount Bracket
Color: Natural
' Product Overview '

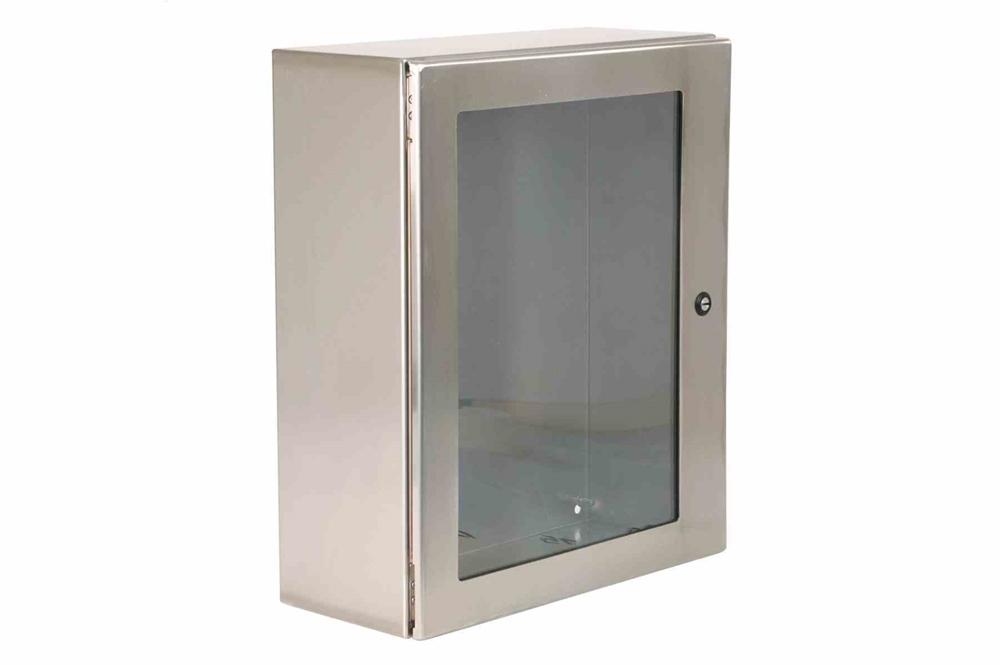

The EPL-AEP.X-SS-8.32.6-VW-7X30 from Larson Electronics is an Explosion Proof Enclosure w/ Window and pressurization system for use in combustible sites. This enclosure can be used in Class I, Division 1 rated facilities. Constructed of 304 stainless steel with a weatherproof seal, customers must provide and run an air line to the explosion proof enclosure to ensure proper purging. The EPL-AEP.X-SS-8.32.6-VW-7X30 is designed for holding and protecting equipment in Class I, Division 1 rated sites. Equipped with a type Z purging system, the 304 stainless steel enclosure measures 32"W x 8"H x 6"D, with a 7" x 30" viewing window. The door is equipped with concealed hinges. This stainless steel enclosure features a weatherproof seal. The window is constructed of polycarbonate. An included pressurization device enables the stainless steel enclosure to be used in Class I, Division 1 rated environments. This purging solution is capable of providing spaces up to 90 cubic feet of total volume with a protective gas supply. To ensure full protection from combustible compounds, the unit requires constant applied pressure, as well as a customer-provided air line running to the enclosure. Air pressure requirements include 0.25-0.5" of water (0.01 PSI). The purging device is equipped with a valve stem, valve key lock, injection pressure indicator and enclosure pressure indicator. Mounting: The EPL-AEP.X-SS-8.32.6-VW-7X30 is compatible with surface mounting applications.
